StarTech.com USB-C 10Gbps M.2 NVMe PCIe SSD Enclosure - Rugged Aluminum External M.2 PCIe M-Key Case IP67 Rated - 1GB/s Read/Write - Supports 2230/2242/2260/2280 - TB3 Compatible - Mac/PC - TAA
Part number M2E1BRU31C
M.2 NVME PCIE SSD ENCLOSURE USB C 3.1 PCIE SSD PORTABLE ADAPTER
- HIGH PERFORMANCE M.2 NVMe STORAGE: External USB-C housing for your PCIe M.2 SSD (Solid State Drive); features USB 3.1 Gen 2 (10Gbps), UASP & PCIe 3.0 for read/write data transfer speeds up to 1GB/s
- PORTABLE & RUGGED: Solid aluminum housing w/ internal thermal pad for heat dissipation transfers heat away from drive; IP67 rated 100% dustproof/water resistant & MIL-STD-810G drop test certified
- BROAD DRIVE COMPATIBILITY: Compatible with M.2 NGFF M-Key PCI Express drives sized 2230/2242/2260/2280 including Samsung 950/960/970, Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives
- BROAD HOST COMPATIBILITY: 50cm USB-C cable incl. for compatibility w/ any USB Type-C (USB 3.1 Gen 2 & USB 3.0) or Thunderbolt 3 (TB3) device; OS Support includes Windows, Mac, Chrome, Linux, Ubuntu & iOS (iPhone 15 [Plus/Pro/Max] and up)

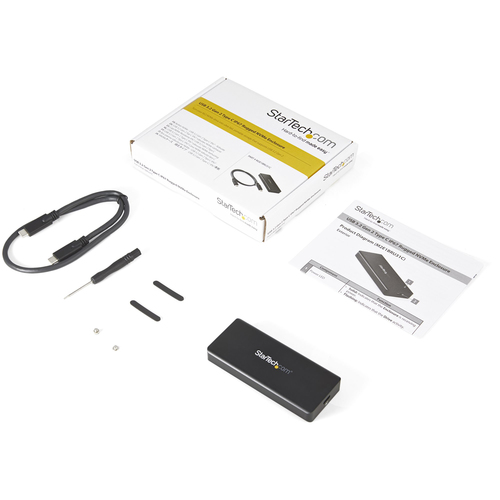

- EASY INSTALL: USB 3.2 Gen 2x1 M.2 NVMe PCIe SSD Enclosure adapter w/ rubber feet offers firm grip, protects surfaces from scratches & raises the case for air flow; mounting hardware & screwdriver incl
- Manufacturer
- StarTech.com
- Part number
- M2E1BRU31C
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
Rugged SSD Enclosure | Thunderbolt 3 Compatible | USB-C Cable Included
This rugged M.2 NVMe PCIe SSD enclosure is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.
Unparalleled Performance
Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, nearly twice the capability of traditional M.2 SATA and hard drive enclosures.

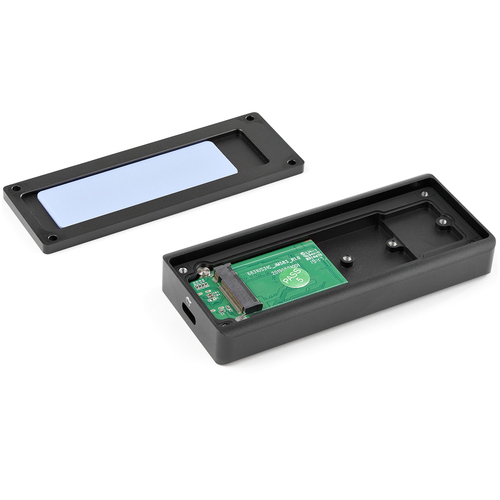

This fan-less solid aluminum enclosure features an internal thermal pad that transfers heat away from the drive for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance.
Dustproof and Water Resistant
Be prepared for the unexpected. The enclosure for PCI Express based NVMe SSDs comes with an IP67 rating, which means that it's both dustproof and water resistant.
It's the perfect solution for people who work outside. Or, for people who work in environments with a lot of dust, like: construction sites, factories, or manufacturing facilities.
Broad Compatibility
The USB 3.1 Gen 2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other environments.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
M2E1BRU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Number of storage drives supported | 1 |
|---|---|
| Storage drive size | M.2 |
| Supported storage drive interfaces | PCI Express 3.0 |
| USB connectivity | Yes |
|---|---|
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Product type | SSD enclosure |
|---|---|
| Product colour | Black |
| Material | Aluminium |
| LED indicators | Activity |
| International Protection (IP) code | IP67 |
| Certification | CE, FCC, REACH |
| Data transfer rate | 10 Gbit/s |
|---|---|
| Chipset | JMicron - JMS583 |
| UASP support | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power source type | USB |
|---|
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Width | 105 mm |
|---|---|
| Depth | 45 mm |
| Height | 14 mm |
| Weight | 164 g |
| Cable length | 0.05 m |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 256 g |
| Cables included | USB Type-C |
|---|---|
| Screwdriver included | Yes |
| Quick installation guide | Yes |
| Compliance certificates | CE, RoHS |
|---|
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 424 mm |
| Master (outer) case length | 363 mm |
| Master (outer) case height | 401 mm |
| Products per master (outer) case | 40 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
