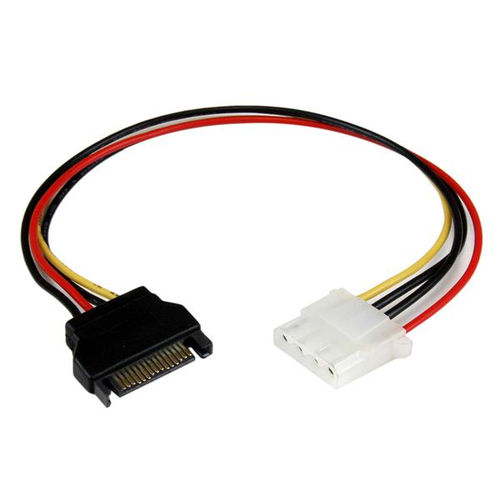

StarTech.com 12in SATA to LP4 Power Cable Adapter - F/M
Part number LP4SATAFM12
12IN SATA TO LP4 POWER CABLE ADAPTER SATA MALE TO MOLEX CABLE

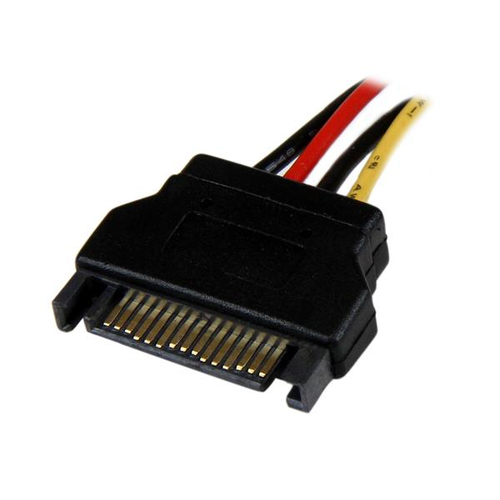

- 1x SATA plug

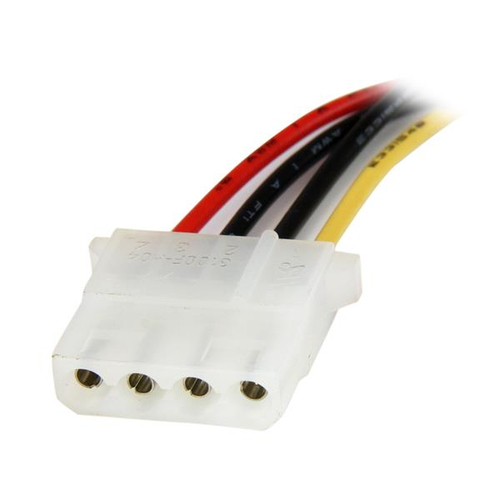

- 1x LP4 female connector
- Provides 12" in cable length
- Manufacturer
- StarTech.com
- Part number
- LP4SATAFM12
- Condition
- New
- Category
- Cables › Storage Cables
- 1GPA category
- Hardware
Overview
Power an LP4 device from a SATA Power connection on your computer power supply
The LP4SATAFM12 SATA to LP4 Power Cable Adapter enables you to power 4-pin Molex devices (i.e. hard drive, DVD-ROM drive, add-in card, etc.) from a SATA power connector on your computer power supply. Offering 12 inches in cable length, the cable allows you to position your devices as needed within the system case.
Constructed of only top quality materials and designed for optimum performance and reliability this 12in SATA to Molex Cable is backed by StarTech.com’s lifetime warranty.
Specifications
| Cable length | 0.3048 m |
|---|---|
| Connector 1 | SATA 15-pin |
| Connector 2 | Molex (4-pin) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black, Red, White, Yellow |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, REACH |
| Width | 30 mm |
|---|---|
| Depth | 304.8 mm |
| Height | 8 mm |
| Weight | 16 g |
| Package width | 126 mm |
|---|---|
| Package depth | 132 mm |
| Package height | 14 mm |
| Package weight | 21 g |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 490 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 222 mm |
| Products per master (outer) case | 300 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
