StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
Part number HSB4SATSASBA
HARD DRIVE BAY MOBILE RACK 3.5 SATA SAS HDD TRAYLESS HOT SWAP
- INCREASED PRODUCTIVITY: The mobile rack backplane for 3.5in SAS II/SATA III turns three 5.25in bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD)
- MAXIMUM COMPATIBILITY: The hot swap backplane for 3.5in SAS II/SATA III can interface with SATA I/II/III and SAS I/II hard drives, an ideal solution for enterprise system applications; Power and status LEDs for each bay
- EASY TO USE: For a quick and secure method of installing and removing drives, this trayless hot swap mobile rack backplane features individual ejection levers for each bay and a key-lock design (includes two keys)
- MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the 4-drive hot swap backplane features a vented solid aluminum enclosure that provides excellent heat dissipation in addition to a built-in fan with speed control; UL VO flammability rated
- THE IT PRO'S CHOICE: Designed and built for IT professionals, this 4-Bay hard drive backplane is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
- Manufacturer
- StarTech.com
- Part number
- HSB4SATSASBA
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps

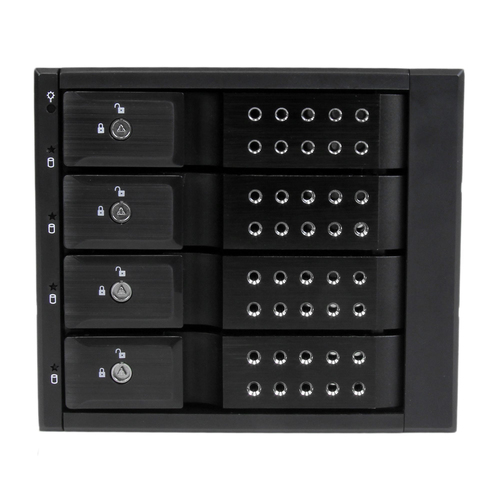

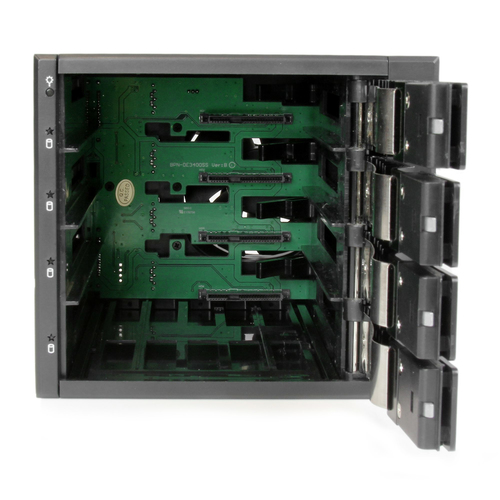

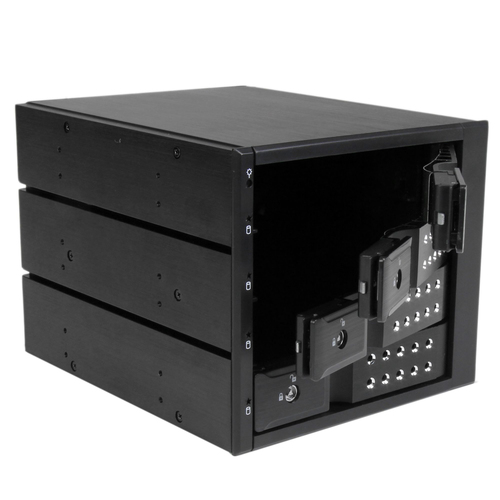

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

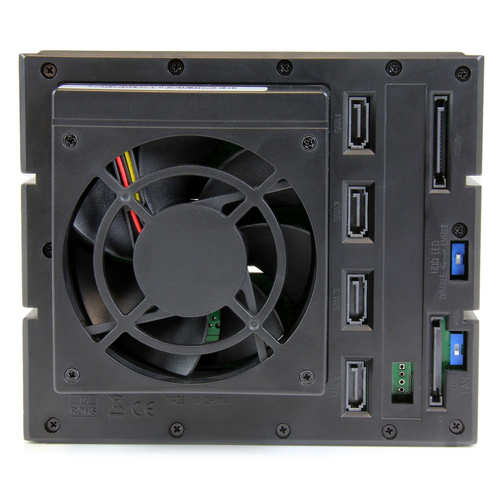

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Product colour | Black |
|---|---|
| Material | Aluminium |
| Hot-swap | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Data transfer rate | 6 Gbit/s |
| LED indicators | Activity, Power |
| Key lock | Yes |
| Certification | CE, FCC |
| External SATA ports quantity | 4 |
|---|
| Width | 145 mm |
|---|---|
| Depth | 197 mm |
| Height | 124 mm |
| Weight | 1.3 kg |
| Package width | 254 mm |
|---|---|
| Package depth | 169 mm |
| Package height | 185 mm |
| Package weight | 1.59 kg |

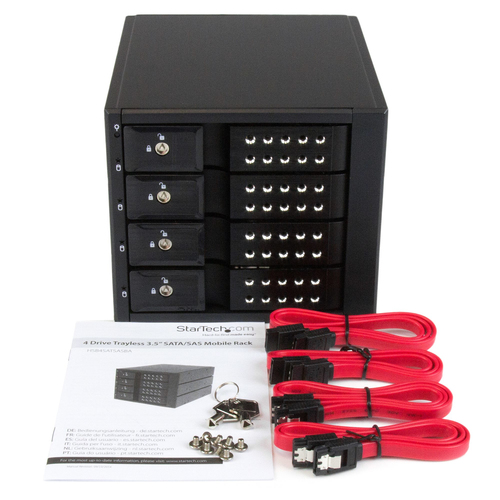

| Cables included | SATA |
|---|---|
| Screws included | Yes |
| Manual | Yes |
| Storage temperature (T-T) | -20 - 65 °C |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Compliance certificates | RoHS |
|---|
| Products per master (outer) case | 6 pc(s) |
|---|---|
| Master (outer) case width | 531 mm |
| Master (outer) case length | 392 mm |
| Master (outer) case height | 288 mm |
| Harmonized System (HS) code | 84733080 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
