Products › System Components

StarTech.com

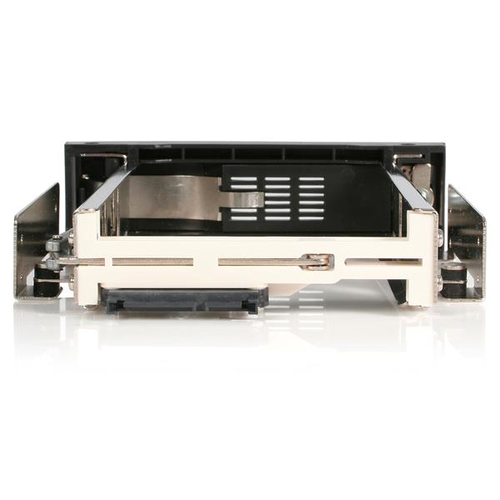

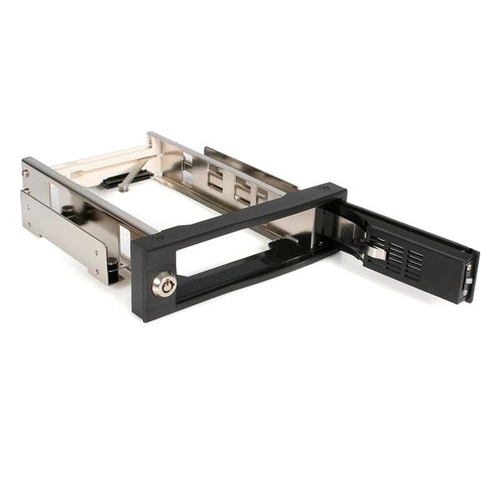

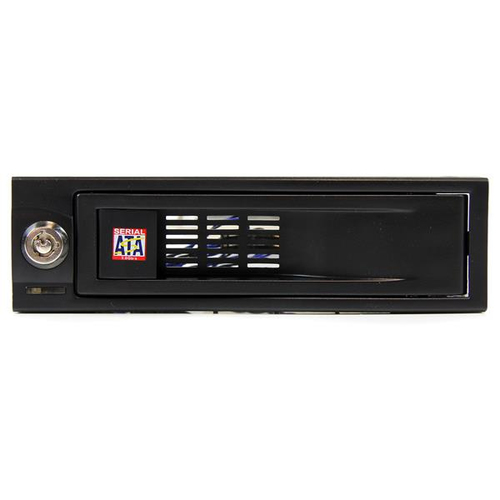

StarTech.com 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive, TAA-Compliant

Part number HSB100SATBK

SATA HOT SWAP BAY MOBILE RACK 3.5IN HDD 5.25 BAY TRAYLESS ADAPTER

  • Holds a 3.5" SATA drive in a front accessible 5.25" bay
  • Trayless design: drives are not mounted into separate trays/enclosures
  • Lockable drive bay
  • Internal rubber shock absorbers
  • 50,000+ insertion rating
  • Power and Activity LED indicator
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 3.5" form factor SATA hard drives
  • Plug-and-Play and Hot-Swap compatible
Manufacturer
StarTech.com
Part number
HSB100SATBK
Condition
New
Category
System Components › Computer Cases
1GPA category
Hardware

Overview

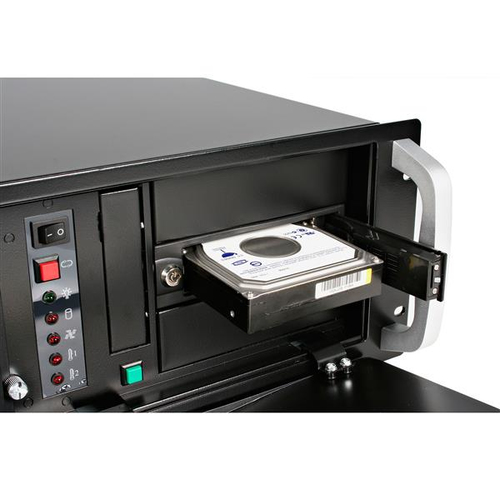

Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.

Specifications

Features
Size (imperial)13.3 cm (5.25")
TypeBezel panel
Product colourBlack
Number of HDDs supported1
HDD size3.5"
HDD interfaceSerial ATA, Serial ATA II, Serial ATA III
MaterialAluminium, PU plastic
Number of cycles50000
LED indicatorsActivity, Power
Key lockYes
CertificationCE, FCC, REACH
Weight & dimensions
Width149 mm
Depth184 mm
Height42 mm
Weight261 g
Packaging data
Package width209 mm
Package depth160 mm
Package height55 mm
Package weight366 g

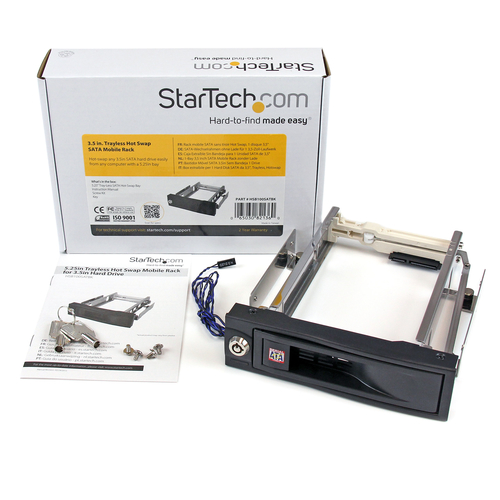

Packaging content
Screws includedYes
ManualYes
Number of lock keys included2 pc(s)
Operational conditions
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 95%
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case20 pc(s)
Master (outer) case width443 mm
Master (outer) case length341 mm
Master (outer) case height295 mm
Harmonized System (HS) code84733080

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
