StarTech.com 4-Port USB C Hub 10Gbps - Metal Industrial USB Type-C Hub w/ 3xUSB-A & 1xUSB-C - ESD & Surge Protection - USB-C or USB-A Host - Self-Powered Mountable USB 3.2 Gen 2 Hub - TAA
Part number HB31C3A1CME
4 PORT USB C HUB 10GBPS METAL INDUSTRIAL MOUNTABLE USB 3.1
- INDUSTRIAL 4 PORT USB-C HUB: Expand the connectivity of a USB-C or USB-A computer by adding 3x USB-A & 1x USB-C ports; SuperSpeed USB 3.2 Gen 2 (10Gbps)hub; 3.3 ft (1m) USB-C & USB-A host cables included (w/ screw-lock)
- ESD PROTECTION: Featuring 15kV Air and 8kV Contact electrostatic discharge protection & 350W surge protection, this rugged metal-enclosed hub is suitable for harsh industrial/commercial environments
- POWER & CHARGE: Self powered USB C hub w/ 36W power adapter & terminal block connector (7-24V DC inputs); Charging w/BC 1.2 for 30W total on all ports / Provides 12W (2.4A) on all ports up to a total 30W draw
- INSTALLATION FLEXIBILITY: Mountable USB Type-C Hub with built-in ear mounting allows for wall/surface mounting; All USB-A & USB-C ports on hub feature screw-lock connectors to prevent accidental cable release
- COMPATIBILITY: USB expansion hub is OS independent, supports Windows, macOS, Linux, iPadOS, Chrome OS, Android; Thunderbolt 3 & USB 3.0/2.0/1.0 compatible; For use in manufacturing, automation, labs, schools, IT
- Manufacturer
- StarTech.com
- Part number
- HB31C3A1CME
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview

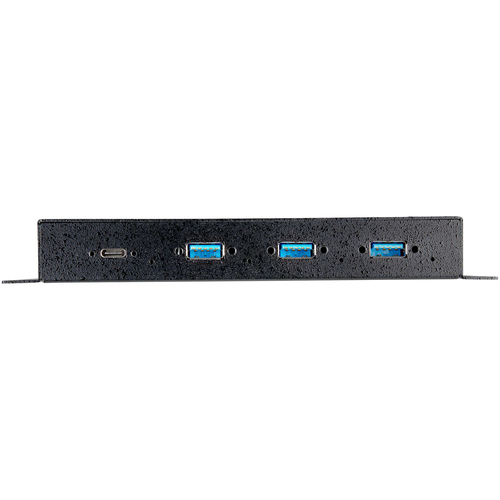

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports
This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features three USB-A and one USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for commercial environments.
Expands the Connectivity of Your Computer for Industrial Applications
With this USB-C hub you can connect three USB-A devices, and one USB-C device, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).
Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).
Powers and Charges Your Connected Devices

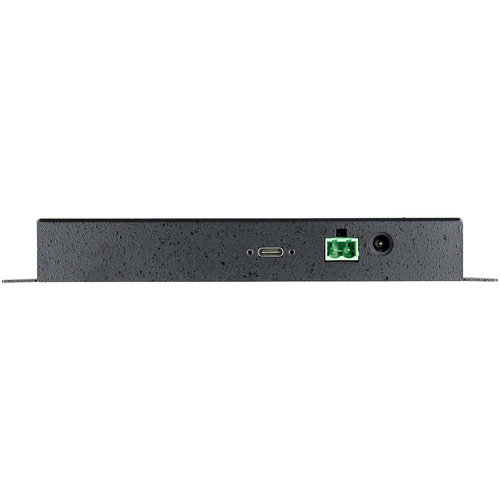

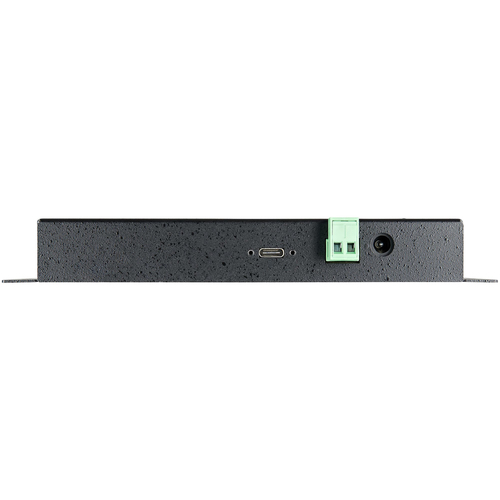

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.
Ideal for Use in Industrial Environments

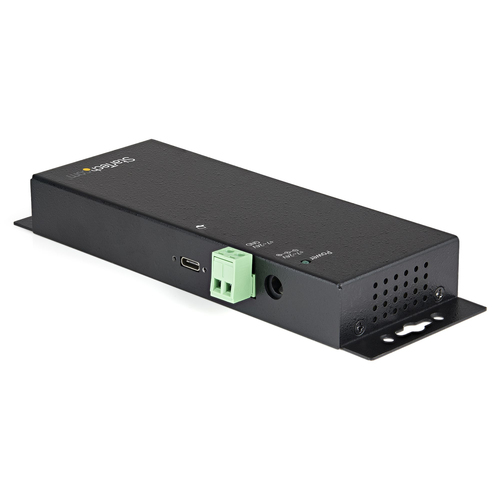

This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge protection, with 350W surge protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection and a 3.3 ft (1m) USB-C & USB-A host cables is included that features a locking screw.
Wide Device Compatibility
The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.
HB31C3A1CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
Specifications
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
|---|---|
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ports quantity | 4 |
| Card reader integrated | No |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Data transfer rate | 10000 Mbit/s |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Surge protection | Yes |
| LED indicators | Link, Power |
| UASP support | Yes |
|---|
| Power consumption (typical) | 36 W |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Width | 59.6 mm |
|---|---|
| Depth | 152 mm |
| Height | 23.5 mm |
| Weight | 281 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 295 mm |
| Package depth | 192 mm |
| Package height | 72 mm |
| Package weight | 1.2 kg |
| Included power plug types | ANZ, EU, JP, UK, US |
|---|---|
| Cables included | USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| Manual | Yes |
| Terminal block included | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Master (outer) case width | 514 mm |
|---|---|
| Master (outer) case length | 426 mm |
| Master (outer) case height | 321 mm |
| Products per master (outer) case | 14 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Compliance certificates | CE, RoHS |
|---|
| Chipset | VIA/VLI - VL822 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
