StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub - TAA
Part number HB20A4AME
4 PORT USB 2.0 HUB METAL INDUSTRIAL MOUNTABLE HEAVY DUTY
- 4 PORT USB 2.0 HUB: Expand the connectivity of a USB Type-A computer by adding 4x USB-A high speed ports; Speeds up to 480Mbps shared across devices; Power LEDs on each port for status identification
- EXTENDED TEMPERATURE RANGE: USB port expander rated for operation between -40°F to 185°F (-40°C to 80°C) w/relative humidity from 5 ~ 95% / Aluminum heat sinks on enclosure to protect from temp spikes
- ESD PROTECTION: USB Hub with 15kV Air and 8kV Contact electrostatic (ESD) protection & 350W surge protection, this rugged metal-enclosed hub is suitable for harsh industrial/commercial environments
- INSTALLATION FLEXIBILITY: Ear mount & DIN rail mountable (bracket incl) for wall/desk surface locations; Incl terminal block power connector, 6.6' (2m) USB host cable; Flexible 7 to 48V DC power input
- WIDE COMPATIBILITY: USB expansion hub is OS independent, supports Windows, macOS, Linux, iPadOS, Chrome OS, Android; Works w/USB 1.1; Multi Transaction Translator (MTT) support for mixed speed devices
- Manufacturer
- StarTech.com
- Part number
- HB20A4AME
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments

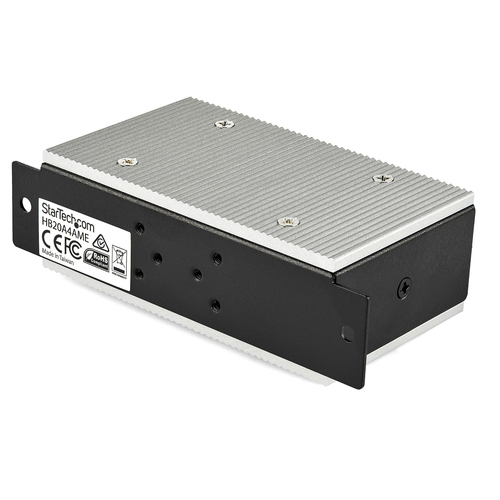

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most

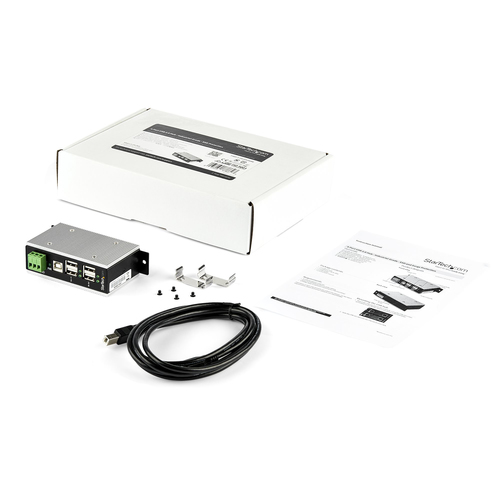

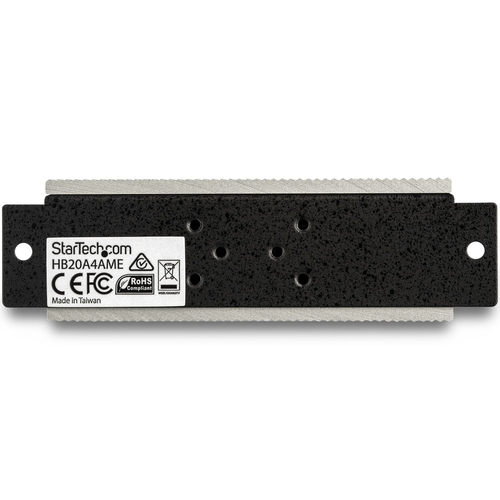

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The HB20A4AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Host interface | USB 2.0 Type-B |
|---|---|
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 4 |
| Ports quantity | 4 |
| Card reader integrated | No |
| Terminal block port | Yes |
| DC-in jack | No |
| Data transfer rate | 480 Mbit/s |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Surge protection | Yes |
| LED indicators | Power |
| Plug and Play | Yes |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Power consumption (typical) | 14 W |
|---|---|
| Input voltage | 7 - 48 V |
| Input current | 2 A |
| Width | 55 mm |
|---|---|
| Depth | 95 mm |
| Height | 32 mm |
| Weight | 292 g |
| Package width | 168 mm |
|---|---|
| Package depth | 244 mm |
| Package height | 55 mm |
| Package weight | 504 g |
| Cables included | USB |
|---|---|
| Manual | Yes |
| DIN rail kit included | Yes |
| Operating temperature (T-T) | -40 - 85 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Master (outer) case width | 440 mm |
|---|---|
| Master (outer) case length | 530 mm |
| Master (outer) case height | 340 mm |
| Products per master (outer) case | 25 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Chipset | Genesys Logic - GL852GT |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
