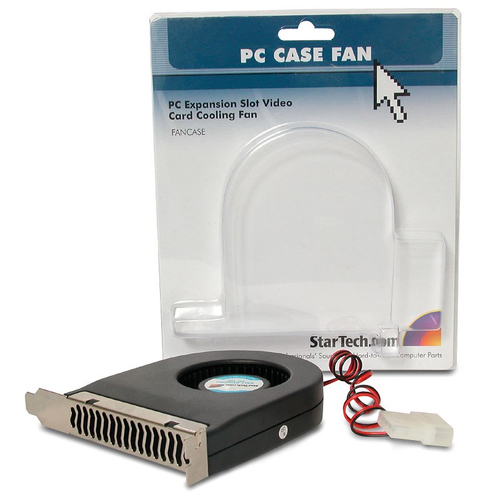

StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector
Part number FANCASE
CPU PC CASE EXHAUST FAN AND VIDEO CARD COOLING FAN
- Fits in standard full-height/full-profile computer cases
- Can be used to pull in air from the top to vent out the rear, or pull in air from the bottom to vent out the rear
- Ball bearing fan; Inline LP4 power connectors; 12V @ 0.15A, 1.8W; 6.9 CGM @ 2,200 RPM; 32 dBA; MTBF: 37,739 hours; Black plastic housing; Reversible bracket
- NOTE: Does not support PWM for fan speed control and will operate at full speed
- Manufacturer
- StarTech.com
- Part number
- FANCASE
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
Remove hot air from a computer case with a rear exhaust fan
This high quality PCI Fan is an add-in cooling fan designed to fit in the PCI, ISA or AGP expansion slots of any computer. The PCI fan helps improve expansion card (video card, etc.) performance, by preventing overheating, making it a great video card cooler for older, hot-running 3D graphics cards like the Voodoo, TNT2, GeForce256 and more. Powered through a simple LP4 connection to the computer power supply, the quiet-running PCI Fan utilizes a brushless DC motor that helps maintain expansion card temperatures while creating minimal noise levels. Compact enough to fit into almost any expansion slot such that airflow can be directed as needed most, StarTech.com's PCI Fan is backed by 2-year warranty and free lifetime technical support.
Specifications
| Suitable location | Graphics card |
|---|---|
| Type | Cooler |
| Rotational speed (max) | 2200 RPM |
| Noise level (high speed) | 32 dB |
| Maximum airflow | 6.9 cfm |
| Bearing type | Ball bearing |
| Operating temperature (T-T) | -10 - 80 °C |
| Product colour | Black |
|---|---|
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Illumination LED | No |
| Display type | Not applicable |
| Voltage | 12 V |
|---|
| Width | 90 mm |
|---|---|
| Depth | 110 mm |
| Height | 20 mm |
| Weight | 100 g |
| Package width | 127 mm |
| Package depth | 157 mm |
| Package height | 32 mm |
| Package weight | 130 g |
| Bearing technology | Ball bearing |
|---|---|
| Compliance certificates | RoHS |
| Dimensions (WxDxH) | 90 x 110 x 20 mm |
|---|---|
| Connector(s) | 1 - LP4 Male |
| Airflow | 6.9 CFM |
| Rotational speed | 2200 RPM |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 541 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 289 mm |
| Products per master (outer) case | 80 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
