Overview

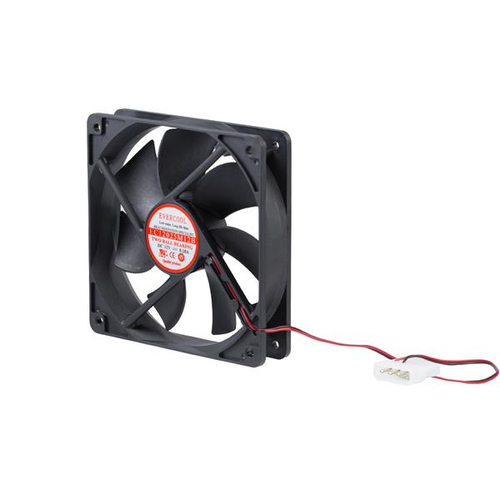

Add additional chassis cooling with a 120mm ball bearing fan
This versatile 12cm PC case fan is designed to fit a broad range of computer case designs, to circulate cool air into the case, or exhaust warm air out - preventing problems due to overheating components. A quiet cooling solution, the 12cm dual ball-bearing case fan features a high efficiency blade design that's capable of moving 72.94 CFM throughout the computer case, helping to optimize system performance. This broadly compatible PC cooling solution can be powered through a simple LP4 connection to the computer power supply, and is backed by StarTech.com's 2-year warranty.
Specifications
Performance
| Suitable location | Computer case |
|---|
| Type | Fan |
|---|
| Fan diameter | 12 cm |
|---|
| Rotational speed (max) | 2000 RPM |
|---|
| Noise level (high speed) | 30 dB |
|---|
| Maximum airflow | 72.94 cfm |
|---|
| Bearing type | Ball bearing |
|---|
| Operating temperature (T-T) | -10 - 80 °C |
|---|
Design
| Product colour | Black |
|---|
| Material | Plastic |
|---|
| Number of fans | 1 fan(s) |
|---|
| Fan connector | 4-pin |
|---|
Weight & dimensions
| Width | 25 mm |
|---|
| Depth | 120 mm |
|---|
| Height | 120 mm |
|---|
| Weight | 125 g |
|---|
| Cable length | 0.3 m |
|---|
| Package width | 145 mm |
|---|
| Package depth | 207 mm |
|---|
| Package height | 34 mm |
|---|
| Package weight | 177 g |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Packaging content
| Screws included | Yes |
|---|
| Number of screws | 4 |
|---|
Other features
| Power requirements | 12 |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|
| Master (outer) case width | 370 mm |
|---|
| Master (outer) case length | 520 mm |
|---|
| Master (outer) case height | 316 mm |
|---|
| Products per master (outer) case | 60 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
