StarTech.com 80x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector
Part number FAN8025PWM
PC CASE FAN WITH PWM CONNECTOR COMPUTER COOLING FAN PC COOLER
- 4-pin Pulse Width Modulation (PWM) motherboard connector
- Ever Lubricate Bearing design

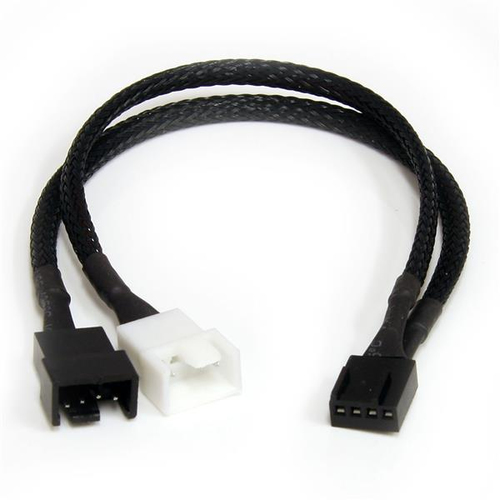

- Includes a PWM Y-split cable
- Manufacturer
- StarTech.com
- Part number
- FAN8025PWM
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
Add a Variable Speed, PWM-Controlled Cooling Fan to a Computer Case
The FAN8025PWM 80mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures, to keep components running optimally.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Suitable location | Computer case |
|---|---|
| Type | Fan |
| Fan diameter | 8 cm |
| Noise level (high speed) | 28 dB |
| Mean time between failures (MTBF) | 40000 h |
| Operating temperature (T-T) | -10 - 70 °C |
| Product colour | Black |
|---|---|
| Material | Plastic |
| Voltage | 12 V |
|---|---|
| Rated current | 0.16 A |
| Weight | 86 g |
|---|---|
| Package width | 396 mm |
| Package depth | 143 mm |
| Package height | 34 mm |
| Package weight | 111 g |
| Operating relative humidity (H-H) | 0 - 65% |
|---|---|
| Storage relative humidity (H-H) | -20 - 70% |
| Fan performance | 25.02 cfm |
| Dimensions (WxDxH) | 80 x 80 x 25 mm |
| Connector(s) | 1 - Molex Fan (4 pin; PWM) |
| Rotational speed | 2500 RPM |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 366 mm |
| Master (outer) case length | 588 mm |
| Master (outer) case height | 218 mm |
| Products per master (outer) case | 100 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
