StarTech.com

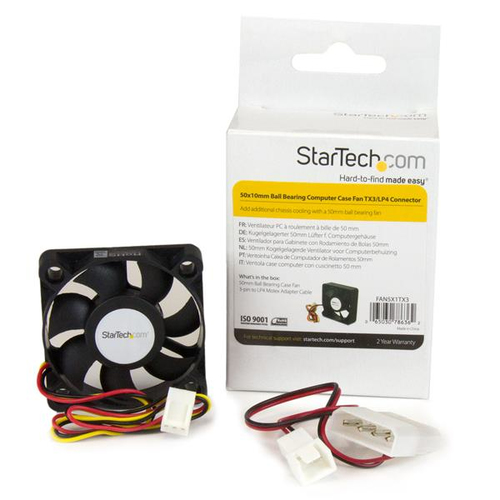

StarTech.com 50x10mm Replacement Ball Bearing Computer Case Fan TX3/LP4 Connector
Part number FAN5X1TX3
PC CASE FAN TX3 LP4 CONNECTOR COMPUTER COOLING FAN PC COOLER
- Dual Ball Bearings in the cooling fan provides increased airflow, reliability and longer life
- Tachometer pin on the TX3 motherboard connector provides system with fan operating status
- Includes a TX3 to LP4 adapter
- Manufacturer
- StarTech.com
- Part number
- FAN5X1TX3
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
Add additional chassis cooling with a 50mm ball bearing fan
This versatile 5cm x 1cm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
Specifications
| Suitable location | Computer case |
|---|---|
| Type | Fan |
| Fan diameter | 5 cm |
| Rotational speed (max) | 4500 RPM |
| Noise level (high speed) | 23 dB |
| Maximum airflow | 8.63 cfm |
| Bearing type | Ball bearing |
| Mean time between failures (MTBF) | 50000 h |
| Operating temperature (T-T) | -10 - 80 °C |
| Product colour | Black |
|---|---|
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Fan connector | 3-pin |
| Certification | CE, UR, UL, REACH |
| Power consumption (typical) | 1.08 W |
|---|---|
| Voltage | 12 V |
| Rated current | 0.09 A |
| Width | 10 mm |
|---|---|
| Depth | 50 mm |
| Height | 50 mm |
| Weight | 19 g |
| Package width | 65 mm |
| Package depth | 115 mm |
| Package height | 34 mm |
| Package weight | 1 kg |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 356 mm |
| Master (outer) case length | 452 mm |
| Master (outer) case height | 294 mm |
| Products per master (outer) case | 200 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
