StarTech.com 120x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector
Part number FAN12025PWM
PC CASE FAN WITH PWM CONNECTOR COMPUTER COOLING FAN PC COOLER
- 4-pin Pulse Width Modulation (PWM) motherboard connector
- Ever Lubricate Bearing design

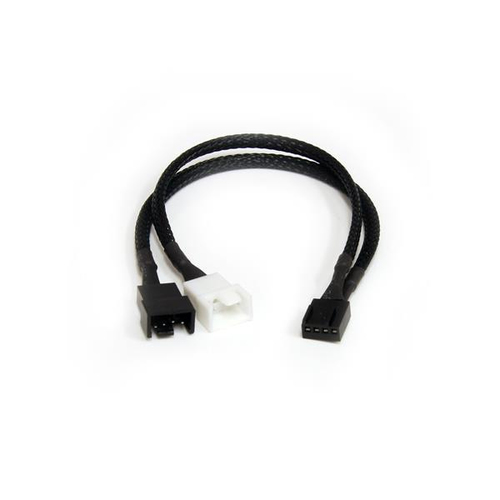

- Includes a PWM Y-split cable
- Manufacturer
- StarTech.com
- Part number
- FAN12025PWM
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
Add a Variable Speed, PWM-controlled Cooling Fan to your Computer Case
The FAN12025PWM 120mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures to help ensure optimal performance from internal components.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Suitable location | Computer case |
|---|---|
| Type | Fan |
| Fan diameter | 12 cm |
| Noise level (high speed) | 39 dB |
| Mean time between failures (MTBF) | 40000 h |
| Operating temperature (T-T) | -10 - 70 °C |
| Product colour | Black |
|---|---|
| Material | Plastic |
| Voltage | 12 V |
|---|---|
| Rated current | 0.32 A |
| Weight | 128 g |
|---|---|
| Package width | 145 mm |
| Package depth | 208 mm |
| Package height | 34 mm |
| Package weight | 188 g |
| Storage temperature (T-T) | -20 - 70 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 65% |
| Fan performance | 78.41 cfm |
| Dimensions (WxDxH) | 120 x 120 x 25 mm |
| Connector(s) | 1 - Molex Fan (4 pin; PWM) |
| Rotational speed | 220 RPM |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 528 mm |
| Master (outer) case length | 378 mm |
| Master (outer) case height | 324 mm |
| Products per master (outer) case | 60 pc(s) |
