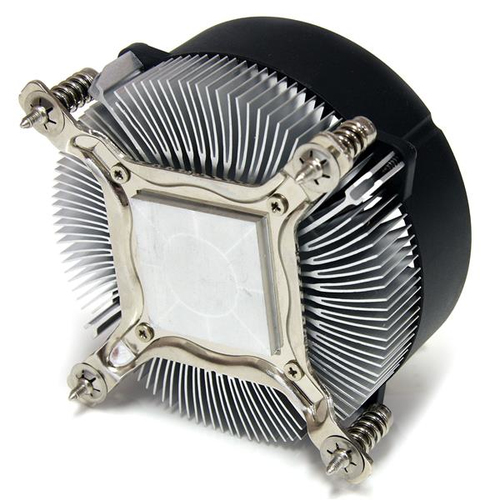

StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with PWM
Part number FAN1156PWM
CPU COOLER FAN WITH HEATSINK MOTHERBOARD LGA 1156/1155 CPU FAN
- 4-pin Pulse Width Modulation (PWM) motherboard connector
- 95mm Ever Lubricate Bearing fan design
- Aluminum heatsink construction
- Manufacturer
- StarTech.com
- Part number
- FAN1156PWM
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System
The FAN1156PWM CPU Cooler with PWM fan delivers reliable, efficient cooling for Intel® Core™ i3, i5, and i7 CPUs in Socket LGA1156 / 1155 / 1150 / 1151 / 1200 systems.
Pulse Width Modulation (PWM) technology enables the motherboard to automatically adjust fan speed based on system demand. This ensures quieter operation and reduced power consumption during idle periods, while providing maximum cooling performance under heavy workloads.
Specifications
| Suitable location | Processor |
|---|---|
| Type | Cooler |
| Supported processor sockets | LGA 1156 (Socket H) |
| Mean time between failures (MTBF) | 40000 h |
| Operating temperature (T-T) | -10 - 70 °C |
| Product colour | Black |
|---|
| Voltage | 12 V |
|---|---|
| Rated current | 0.35 A |
| Weight | 272 g |
|---|---|
| Package width | 102 mm |
| Package depth | 102 mm |
| Package height | 87 mm |
| Package weight | 313 g |
| Storage temperature (T-T) | -20 - 70 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 65% |
| Dimensions (WxDxH) | 95 x 95 x 55 mm |
| Airflow | 65.61 CFM |
| Rotational speed | 3000 RPM |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 326 mm |
| Master (outer) case length | 526 mm |
| Master (outer) case height | 218 mm |
| Products per master (outer) case | 30 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
