StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible - TAA
Part number DUAL-M2-PCIE-CARD-B
DUAL M.2 PCIE SSD ADAPTER CARD MKEY AHCI NVME M2 SSD PCIE 4.0
- HIGH PERFORMANCE: Install 2x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x8 or x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
- WIDE COMPATIBILITY: This Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs / Not compatible with SATA based M.2 drives
- BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x8 or x16 PCIe slot / PCIe bifurcation is required / Works with all workstation and server OS's such as Windows, Windows Server, and Linux
- SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to your M.2 PCIe SSDs individually / With OS or 3rd party RAID software, build an array to add redundancy, higher capacity, or performance through RAID 0, RAID 1, or JBOD
- VENTED BRACKETS: Pre-installed full profile bracket with included low-profile (half-height) bracket in the box / Vented brackets allow for better air flow which helps avoid overheating that can cause drive throttling
- Manufacturer
- StarTech.com
- Part number
- DUAL-M2-PCIE-CARD-B
- Condition
- New
- Category
- Computer Systems › Server Computers
- 1GPA category
- Hardware
Overview
Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | Bifurcation

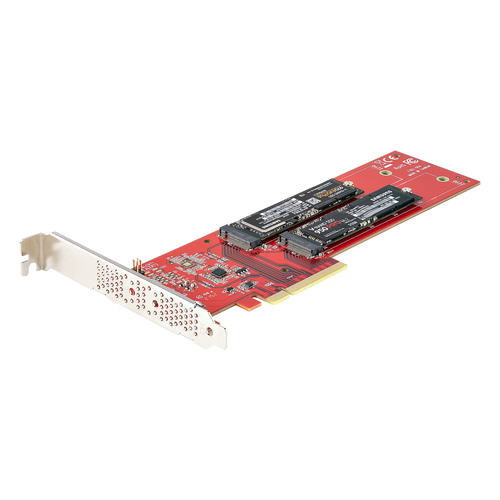

This Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server.
Boost System Performance
Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.
Access two M.2 PCIe SSDs simultaneously
No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation.
Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.
Wide Compatibility

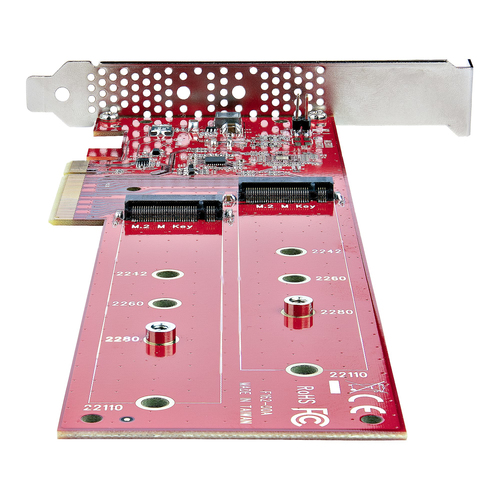

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems, if the computer/motherboard supports bifurcation.

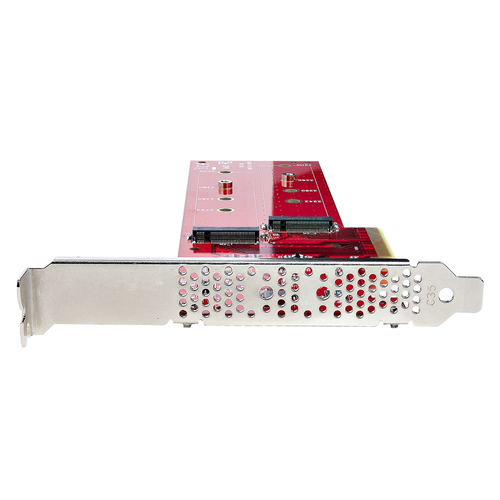

Vented Brackets
The included full and low-profile vented brackets increase air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.
The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance
Specifications
| Host interface | PCIe |
|---|---|
| Output interface | M.2 |
| Expansion card standard | PCIe 4.0 |
| Internal | Yes |
|---|---|
| Product colour | Red |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 6493014 h |
| Hot-swap | No |
| Data transfer rate (max) | 7.8 Gbit/s |
|---|
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Supported storage drive heights | 22 mm |
| Width | 102 mm |
|---|---|
| Depth | 228 mm |
| Height | 22 mm |
| Weight | 74 g |
| Mounting brackets included | Yes |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
| Package width | 293 mm |
| Package depth | 176 mm |
| Package height | 35 mm |
| Package weight | 192 g |
| Products per master (outer) case | 30 pc(s) |
|---|---|
| Master (outer) case width | 505 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 330 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
