StarTech.com Black Aluminum 5.25in Rugged SATA Hard Drive Mobile Rack Drawer
Part number DRW150SATBK
SATA HOT SWAP BAY MOBILE RACK DRAWER 5.25 BAY TRAYLESS ADAPTER
- Fits a single SATA drive into a front accessible 5.25"" bay
- Heavy duty aluminum construction for the drive caddy and bay
- Key lockable drive caddy
- Rubber shock absorbers
- 25,000+ insertion rating
- 40mm ball bearing cooling fan
- Dust resistant door on bay unit
- Power and Activity LED indicators
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Supports 3.5" form factor SATA hard drives
- Manufacturer
- StarTech.com
- Part number
- DRW150SATBK
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
Turns any 3.5in SATA hard drive into a rugged, hot-swap storage solution for a 5.25in bay
This high quality Removable SATA Hard Drive Drawer/Mobile Rack delivers a professional-grade hot-swap solution, allowing you to quickly swap SATA hard drives in/out of a computer without having to open the computer case. The mobile rack is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

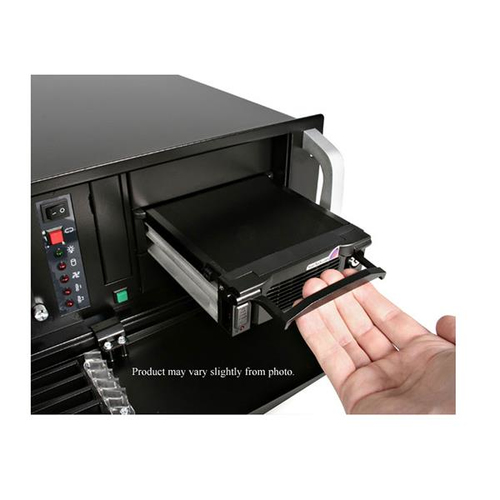

Simply install the drive bay into a 5.25in bay on the host computer, then mount a 3.5in SATA HDD into the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the drive. Features a front panel ball bearing fan, aluminum construction and 25K insertion rating. Backed by StarTech.com's 2-year warranty.
This product is interchangeable as a replacement for StorCase SATA models S21J111, SC21J111 and RJR110.
Specifications
| Size (imperial) | 13.3 cm (5.25") |
|---|---|
| Type | Carrier panel |
| Product colour | Black |
| Number of HDDs supported | 1 |
| HDD size | 3.5" |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III |
| Material | Aluminium |
| Number of cycles | 25000 |
| Number of fans | 1 fan(s) |
| Fan diameter | 4 cm |
| Data transfer rate | 6 Gbit/s |
| LED indicators | Activity, Power |
| Key lock | Yes |
| Certification | CE, REACH |
| Width | 147 mm |
|---|---|
| Depth | 190 mm |
| Height | 41 mm |
| Weight | 782 g |
| Package width | 195 mm |
|---|---|
| Package depth | 151 mm |
| Package height | 48 mm |
| Package weight | 834 g |
| Dust cover included | Yes |
|---|---|
| Cables included | SATA |
| Screws included | Yes |
| Number of lock keys included | 2 pc(s) |
| Compliance certificates | RoHS |
|---|
| Products per master (outer) case | 20 pc(s) |
|---|---|
| Master (outer) case width | 426 mm |
| Master (outer) case length | 332 mm |
| Master (outer) case height | 267 mm |
| Harmonized System (HS) code | 84733080 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
