StarTech.com Horizontal 2U Server Rack Cable Management Finger Duct w/ Cover - 19" Network Rack Wire Duct Raceway Panel - Slotted Wire Duct
Part number CMDUCT2U
2U HORIZONTAL FINGER DUCT RACK CABLE MANAGEMENT PANEL WITH COVER - SERVER RACK C
- ADVANCED CABLE MANAGEMENT: The covered cable duct offers a series of fingers on either side, as well as pass-through holes at the back to help you route your cables where you need them
- PERFECT FOR BUNDLED CABLES: The cable organizer features a removable top cover that makes it easy to add or remove bundled cables quickly
- STURDY CONSTRUCTION: Made of high-quality steel, the 1U horizontal finger duct rack cable manager is a durable solution for your server room or wiring closet
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this server rack cable management system is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
- Manufacturer
- StarTech.com
- Part number
- CMDUCT2U
- Condition
- New
- Category
- Computer Systems › Server Computers
- 1GPA category
- Hardware
Overview

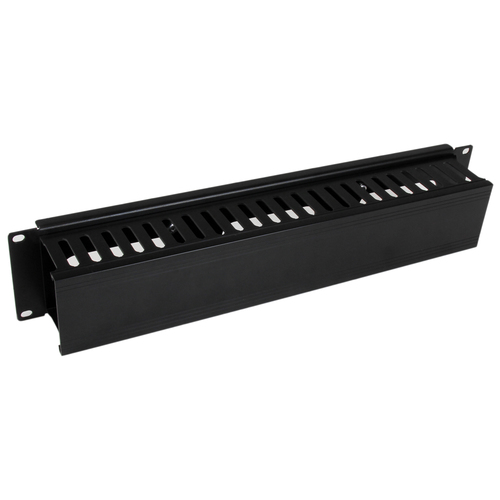

Organize cables in your server rack or cabinet with a horizontal, covered cable duct
The CMDUCT2U 2U Finger Duct Cable Management Panel mounts to a standard 19" 2 or 4-post rack to help you organize horizontal cabling, through a covered cable duct.

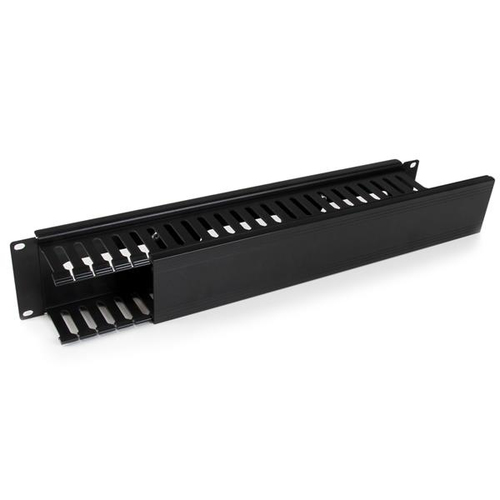

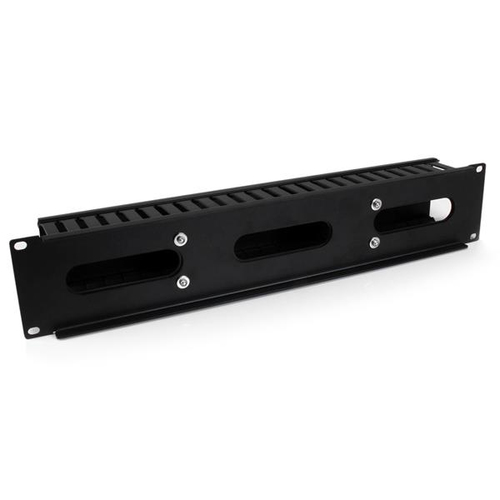

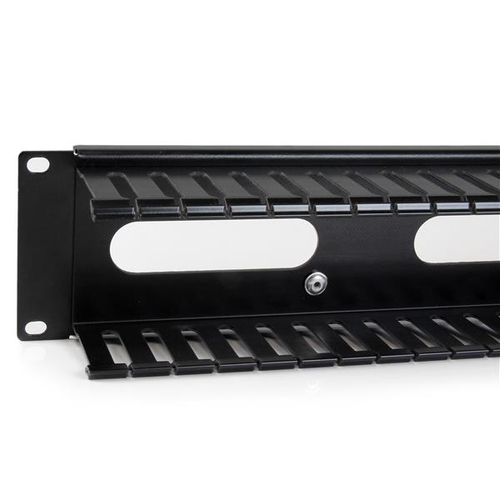

The 2U cable organizer features a removable top cover that makes it easy to add or remove bundled cables quickly. The duct also offers a series of fingers on either side, as well as pass-through holes at the back to help you route your cables where you need them, and reduce cable strain in the process.

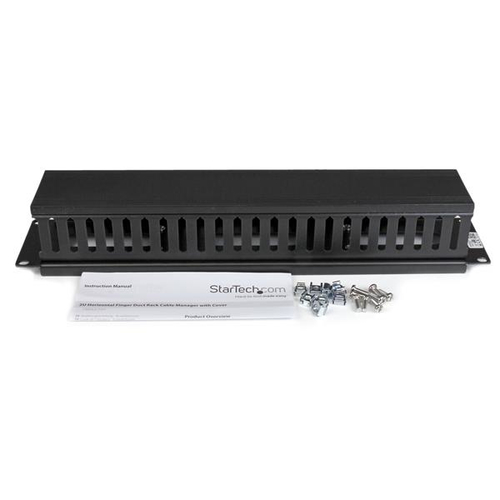

Made of high-quality steel and plastic, the cable manager is a durable solution for your server room or wiring closet. For easy installation, this horizontal cable organizer comes complete with M6 screws.
Specifications
| Type | Cable management panel |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Steel |
| Rack capacity | 2U |
| Compliance industry standards | EIA RS310-D |
| Certification | CE, TAA, REACH |

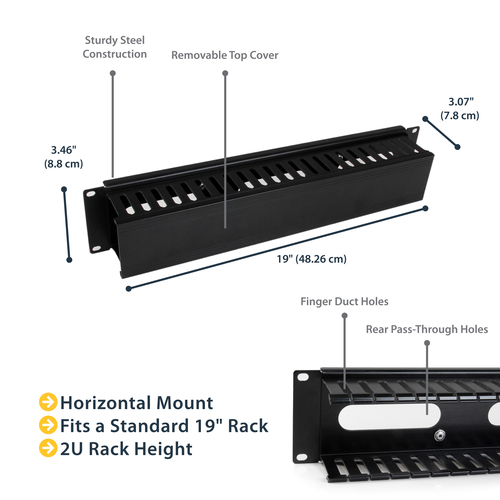

| Width | 482 mm |
|---|---|
| Depth | 79 mm |
| Height | 88.1 mm |
| Weight | 972 g |
| Package width | 545 mm |
|---|---|
| Package depth | 150 mm |
| Package height | 145 mm |
| Package weight | 1.3 kg |
| Screws included | Yes |
|---|---|
| Screw type | M5, M6 |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Compliance certificates | RoHS |
|---|
| Master (outer) case width | 565 mm |
|---|---|
| Master (outer) case length | 640 mm |
| Master (outer) case height | 640 mm |
| Products per master (outer) case | 16 pc(s) |
| Harmonized System (HS) code | 85389099 |
