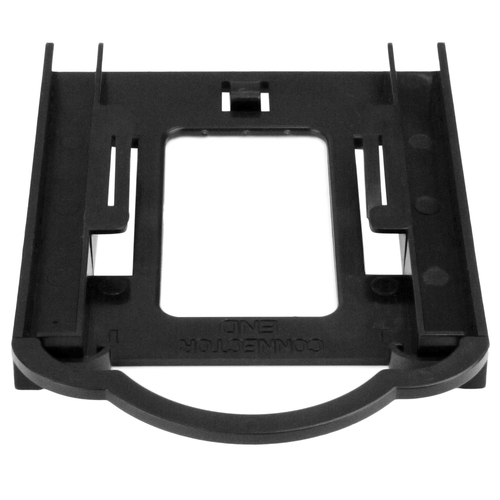

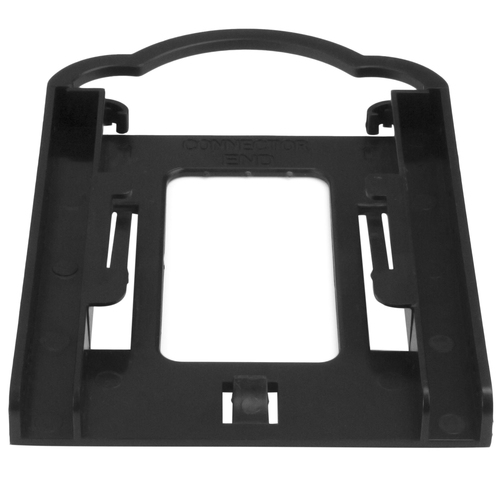

StarTech.com 5 Pack - 2.5” SDD/HDD Mounting Bracket for 3.5 Drive Bay
Part number BRACKET125PTP
2.5 HARD DRIVE MOUNTING BRACKET 3.5IN DRIVE BAY SSD HDD ADAPTER KIT
- TOOL-LESS INSTALLATION: Use this 5-pack of 2.5in HDD / SSD mounting brackets to easily install one or multiple 2.5 inch hard drives (HDDs) or solid-state drives (SSDs) into a 3.5 inch drive bay on your desktop PC without the need of tools
- SAVE TIME: Helping to save valuable time and effort on installation projects, this 5-pack of 2.5in mounting adapters is ideal for IT professionals needing to install a 2.5in drive into a 3.5in bay
- BROAD COMPATIBILITY: This 2.5in HDD / SSD mount is compatible with most 2.5in SSD / HDD drives including: IDE, SAS, SATA, U.2, U.3 and more, providing users with ultimate compatibility
- DRIVE HEIGHT RANGE: This 2.5in SSD / HDD mounting kit for 3.5 inch drive bay supports drives 7 mm or 9.5 mm in height
- Manufacturer
- StarTech.com
- Part number
- BRACKET125PTP
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
2.5" Hard Drive Mount | Tool-less Installation

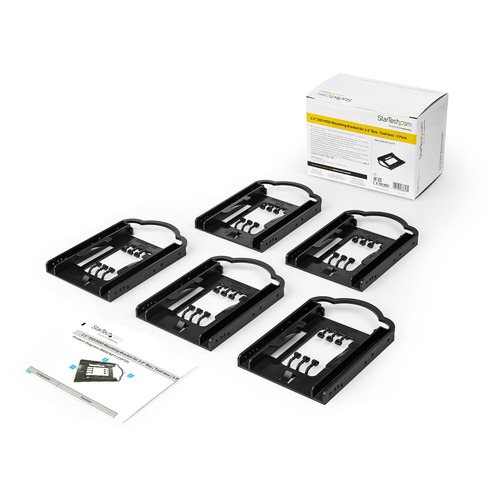

The 2.5” SDD / HDD Mounting Bracket for 3.5 Drive Bay now comes in a convenient 5-pack. This mounting bracket lets you quickly install a 2.5" SSD or HDD into a single 3.5" bay in a desktop PC or server, with no tools required. The tool-less mounting bracket supports a 2.5" solid-state drive or hard drive from 7 mm to 9.5 mm in height.
Save Time with Easy, Tool-less Drive Installation
The mounting bracket’s tool-less design makes it fast and easy to install a 2.5" drive in a computer or server, without the need for additional hardware or tools. It’s ideal for system administrators and integrators who are building or upgrading a computing solution for a wide range of businesses and organizations, including schools and hospitals, saving valuable time and effort on installation projects.
Designed for Trouble-free Use

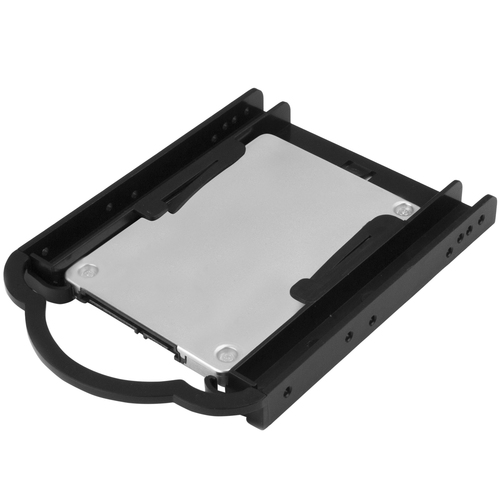

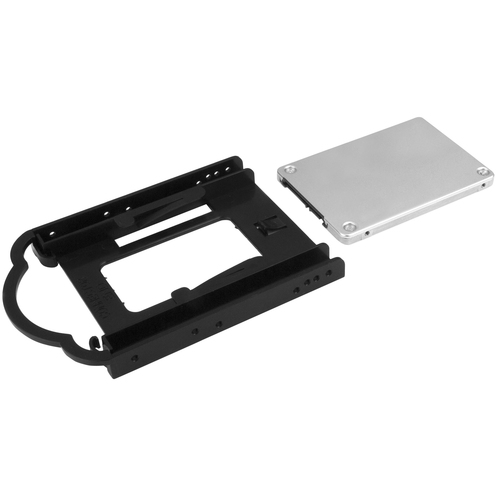

The lightweight mounting bracket is designed for trouble-free, reliable performance. To install a drive, you simply secure it into the mounting bracket, without using tools. Then, you put the bracket into a 3.5" drive bay in your computer and the bracket holds the drive in place using the tool-less plastic pegs.
The BRACKET125PTP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Size (imperial) | 8.89 cm (3.5") |
|---|---|
| Type | Carrier panel |
| Product colour | Black |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS) |
| Material | Plastic |
| Supported storage drive heights | 7,9.5 mm |
| Width | 102 mm |
|---|---|
| Depth | 150 mm |
| Height | 13 mm |
| Weight | 33 g |
| Package width | 115 mm |
|---|---|
| Package depth | 158 mm |
| Package height | 97 mm |
| Package weight | 40 g |
| Quantity per pack | 5 pc(s) |
|---|---|
| Quick start guide | Yes |
| Number of pegs | 30 |
| Sustainability compliance | Yes |
|---|
| Compliance certificates | CE, RoHS |
|---|
| Products per master (outer) case | 30 pc(s) |
|---|---|
| Master (outer) case width | 492 mm |
| Master (outer) case length | 496 mm |
| Master (outer) case height | 254 mm |
| Harmonized System (HS) code | 84733080 |
