StarTech.com 6.6ft (2m) Active Thunderbolt 4 Cable, 40Gbps, 100W Power Delivery, 4K/8K Video, Intel-Certified Thunderbolt Cable - Compatible w/ USB4/Thunderbolt 4/ USB 3.2/ USB Type-C/DisplayPort/Thunderbolt 3
Part number A40G2MB-TB4-CABLE
6FT (2M) THUNDERBOLT 4 CABLE - INTEL CERTIFIED TB4/USB4 COMPATIBLE
- HIGH PERFORMANCE: 2m (6.6ft) Active Thunderbolt 4 cable with integrated chipset delivers consistent 40 Gbps and 100W charging; Connect a Thunderbolt 4 / 3 / USB-C laptop, or iPad Pro (5th gen and later) to a docking station or UHD monitor
- THUNDERBOLT CERTIFIED: Intel Thunderbolt-certified for guaranteed compatibility with Thunderbolt hosts and devices; DisplayPort 1.4a with DSC supports up to 8K 60Hz or dual 4K 60Hz; Compliant with PCI Express 3.0 (32 Gbps) for external PCIe devices

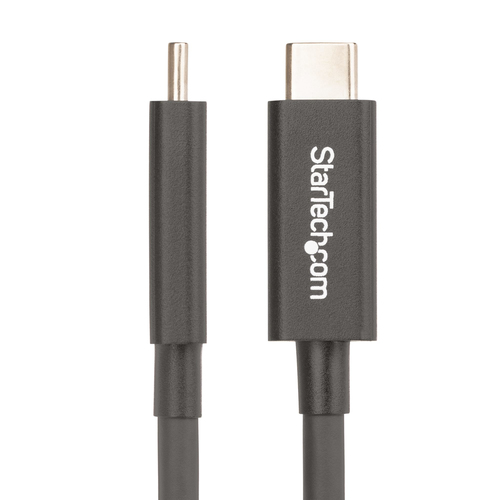

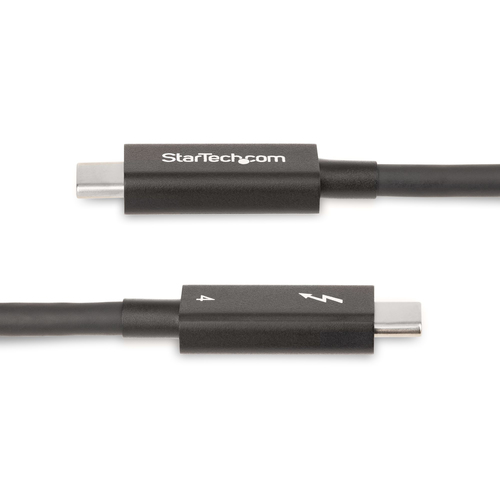

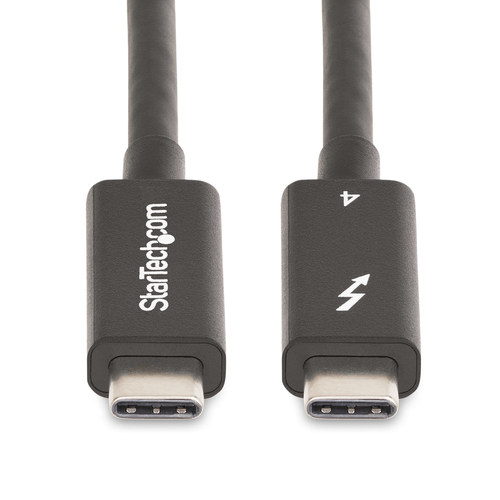

- QUALITY CONSTRUCTION: Coaxial wire with braided alloy shield for enhanced EMI protection; Built-in active chipset maintains signal integrity for consistent Thunderbolt 4 / USB4 performance; Robust strain reliefs on connectors for improved durability

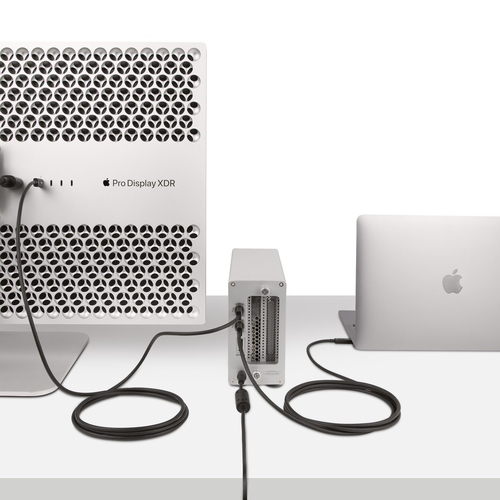

- APPLICATIONS: Facilitates longer TB4 or USB-C connection supporting full 40 Gbps, video & power; Reliable performance in high-bandwidth applications like external PCIe chassis/storage drives & TB networking devices; Works w/Apple M1/M2/M3 Max/Pro MacBooks
- SPECS: 6.6ft (2m); Thunderbolt 4 (40 Gbps); USB4 (40 Gbps), USB 3.2 Gen 2 (10 Gbps); DisplayPort 1.4a w/ DSC, HDR, 10-bit Color; 8K 60Hz; PCIe 3.0 (32 Gbps); 100W PD 3.0; 30/32 AWG (Coaxial/Twisted Pair); Cable Outer Diam.: 0.19in (4.7mm)
- Manufacturer
- StarTech.com
- Part number
- A40G2MB-TB4-CABLE
- Condition
- New
- Category
- Cables › Storage Cables
- 1GPA category
- Hardware
Overview
Connect Thunderbolt 4-certified devices at speeds of up to 40Gbps, using this Intel-certified cable

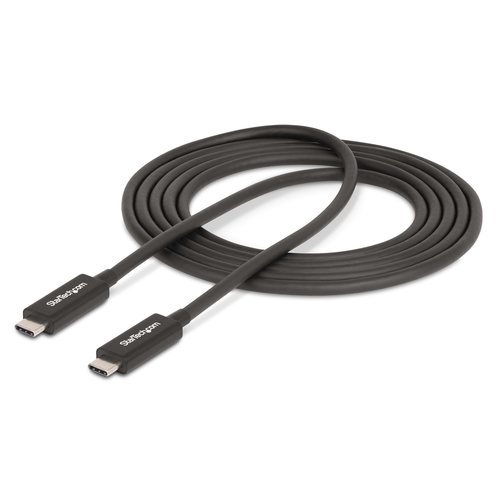

The 6.6ft (2m) Active Thunderbolt™ 4 cable enables full Thunderbolt™ 4 capabilities and outperforms passive cables beyond 3.3ft (1m) length. An active integrated chipset minimizes signal degradation for consistent 40Gbps output at distances of up to 6.6ft (2m), while passive cables deliver limited performance beyond 3.3ft (1m) due to signal loss.
40 Gbps for Thunderbolt 4 / 3 Devices
This Active Thunderbolt 4 cable supports data transfer rates of 40 Gbps, when connected to a Thunderbolt 4, Thunderbolt 3, or USB4-compatible source and device. It is capable of transferring data four times faster than standard USB 3.2 Gen 2 (10 Gbps) cables.
USB Power Delivery 3.0
This Thunderbolt 4 cable delivers up to 100W of Power Delivery to charge a laptop or power a display, and 15W for bus-powered devices such as hard drive enclosures.
USB-C Compatible
The Thunderbolt 4 cable is compatible with all USB Type-C devices and can be used to charge and sync mobile devices. In addition, this cable can be used to connect and power USB-C laptops, such as MacBook® and Chromebook™; and USB-C peripherals such as portable hard drives and docking stations.

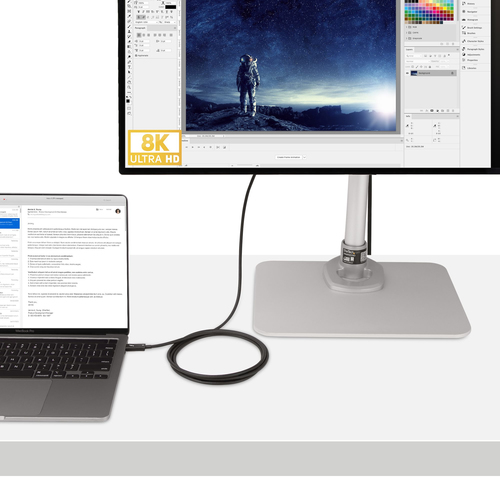

Full-8K Video

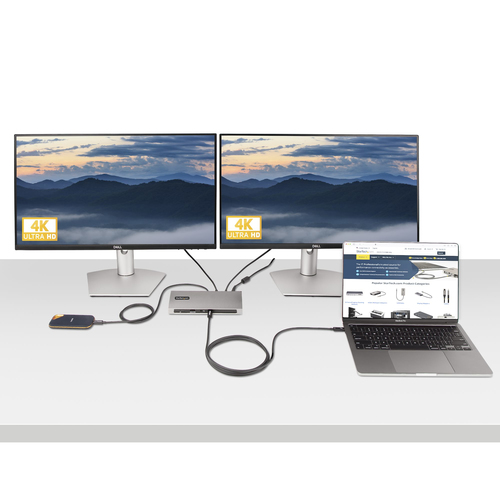

The cable supports full-8K 60Hz video and DisplayPort 1.4a, and is compatible with Display Stream Compression (DSC). Use it to connect a docking station to laptop, or a laptop to a display.
Thunderbolt Networking
The cable can be used to daisy chain up to 6 Thunderbolt 4-enabled devices, such as laptops for peer-to-peer 10GbE networking. In addition, connect two Thunderbolt 4 laptops to transfer/migrate data.
Specifications
| Connector 1 | Male |
|---|---|
| Connector 2 | Male |
| Cable length | 2 m |
| Data transfer rate (max) | 40 Gbit/s |
| Product colour | Black |
| Connector contacts plating | Nickel |
| Thunderbolt version | 4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Maximum resolution | 7680 x 4320 pixels |
| Number of displays supported | 1 |
| Jacket material | Polyvinyl chloride (PVC) |
| Sustainability compliance | Yes |
|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
| Cable diameter | 4.7 mm |
|---|
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 87 mm |
| Package depth | 177 mm |
| Package height | 27 mm |
| Package weight | 89 g |
| Products per master (outer) case | 450 pc(s) |
|---|---|
| Master (outer) case length | 295 mm |
| Master (outer) case width | 205 mm |
| Master (outer) case height | 450 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
