StarTech.com 7 Port Self-Powered USB C Hub with Individual On/Off Switches, USB 3.0 (5Gbps) Expansion Hub with Power Supply, Desktop Laptop USB-C to USB-A Splitter
Part number 5G7AIBS-USB-HUB-NA
7-PORT POWERED USB-C HUB USB TYPE C EXPANSION HUB USBC HUB
- 7-PORT ALUMINUM USB HUB: Expand the connectivity of your USB Type-C or USB Type-A laptop or desktop by adding 7x USB-A ports with individual port switches; USB 5Gbps; Self powered hub with 65W power adapter/supply included
- INDIVIDUAL PORT SWITCHES: Each USB-A port has its own on/off switch (w/LED) that toggles power to the USB device connected to the port; Save energy & ensure privacy by turning off SSD/thumb drives, web cams, headsets, etc. when not in use
- POWER & CHARGE: Each port supports BC 1.2, providing 1.5A (7.5W) of power simultaneously (52.5W total); Provides power with or wihtout a host computer connected with support for CDP & DCP; Ideal for charging phones & tablets; 65W Power Adapter Included
- APPLICATIONS: Includes 3.3ft (1m) USB-C & USB-A host cables to support both USB-A & USB-C host computers; Ideal for peripherals such as external storage devices, thumb drives, HD Cameras & USB 2.0 devices like mice, keyboards, webcams, and USB headsets
- COMPATIBILITY: USB expansion hub is OS independent, supporting Windows, macOS, Linux, iPadOS, Chrome OS, Android; Compatible with Thunderbolt & USB 3.0 (USB 3.2 Gen 1)/2.0/1.1/1.0 host computers
- Manufacturer
- StarTech.com
- Part number
- 5G7AIBS-USB-HUB-NA
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
7-Port USB Hub | Individual On/Off Port Switches | USB 3.2 Gen 1 (5Gbps) | 3.3ft (1 m) USB-C & USB-A Host Cables Included
This 7-Port USB 5Gbps Hub adds seven USB Type-A ports to a computer, with the added benefit of each port having an individual on/off switch. The USB hub is self-powered with an included power adapter. It connects to a USB-A, or USB-C port on a laptop or desktop computer.

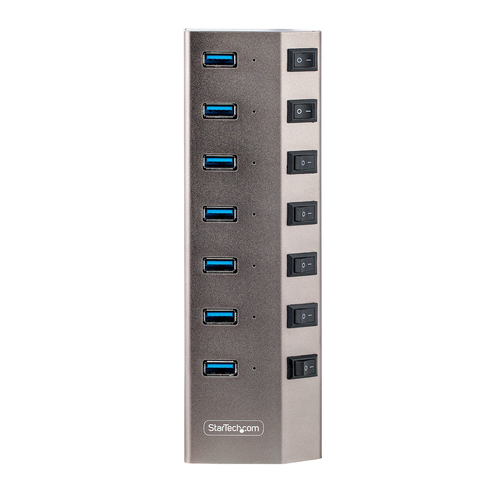

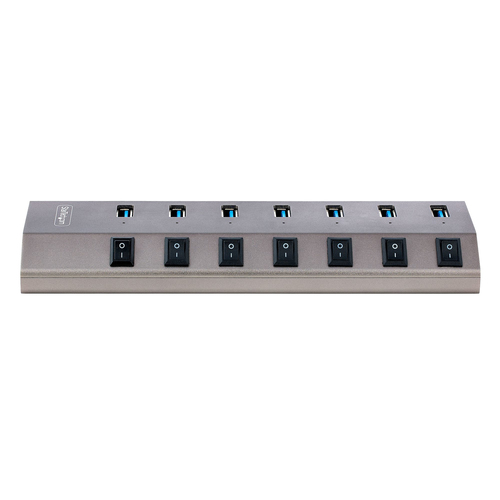

Seven On/Off Switches
The seven ports on the USB Hub feature a power switch to turn off the computers power connection to the attached device when it's not being used. This means you can turn off individual USB ports to reduce power consumption, without having to physically disconnect the device or cable. Also, this feature can ensure privacy by turning off cameras or external data storage devices that contain sensitive data, when they're not in use.
Power and Charge USB Devices
The USB hub is self-powered, with an included 65W power adapter. This enables all seven ports on this USB hub to support BC 1.2, providing 1.5A (7.5W) of power simultaneously (52.5W total), making it ideal to charge battery powered USB devices like Smartphones, and Tablets, while also providing a data connection. The USB hub will provide power with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) applications.
Add Seven USB Ports, to Connect USB Devices
The 7-port USB Hub expands computer's USB connectivity, adding seven USB-A ports from a single USB-A or USB-C port. The USB hub is backward compatible with older USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB devices such as external storage devices (thumb drives, HDDs/SSDs), HD Cameras, mice, keyboards, webcams, and USB headsets.
USB 5Gbps is also known as USB 3.2 Gen 1, and USB 3.0.
Hassle-Free, Plug-and-Play Installation

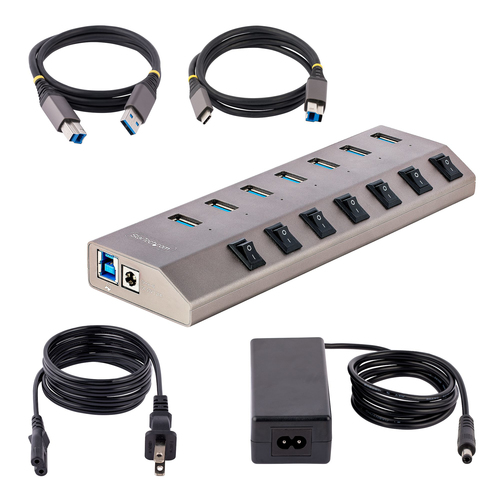

The 7-Port USB Hub is OS independent supporting all operating systems including Windows, macOS, Chrome OS, iPad OS and Android, and installs automatically when connected to a computer. To ensure wide compatibility with USB host devices, individual 3.3 ft. (1 m) USB-A, and USB-C host cables are included.
Specifications
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
|---|---|
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| Ports quantity | 7 |
| DC-in jack | Yes |
| Data transfer rate | 5000 Mbit/s |
|---|---|
| Product colour | Grey |
| Housing material | Plastic |
| Fast charging | Yes |
| LED indicators | Yes |
| Cable length | 1 m |
| Plug and Play | Yes |
| UASP support | Yes |
|---|
| Power supply type | DC |
|---|---|
| Power consumption (typical) | 65 W |
| Input voltage | 110 - 240 V |
| Output voltage | 20 V |
| Output current | 3.25 A |
| Power plug type | Type M |
| Width | 188 mm |
|---|---|
| Depth | 59 mm |
| Height | 21 mm |
| Package width | 227 mm |
|---|---|
| Package depth | 175 mm |
| Package height | 71 mm |
| Package weight | 800 g |
| AC adapter included | Yes |
|---|---|
| Included power plug types | US |
| Cables included | USB |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Mean time between failures (MTBF) | 50000 h |
|---|
| Sustainability compliance | Yes |
|---|
| Master (outer) case width | 477 mm |
|---|---|
| Master (outer) case length | 378 mm |
| Master (outer) case height | 193 mm |
| Products per master (outer) case | 10 pc(s) |
| Compliance certificates | CE, RoHS |
|---|
| Chipset | VIA - VL817 |
|---|
