StarTech.com 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expander w/Locking Ports, Heavy Duty - TAA
Part number 5G4AINDNP-USB-A-HUB
4-PORT INDUSTRIAL USB HUB 5GBPS USB-A HUB W/ ESD PROTECTION
- 4-PORT INDUSTRIAL USB HUB: USB 5Gbps expansion hub w/metal enclosure for durability in harsh environments; Provides 4 USB 3.0 Type-A Downstream Facing Ports (DFP); 5Gbps shared; 6ft A-B host cable; USB Event Monitoring utility (available for download)
- ESD PROTECTION: Heavy-duty USB hub with integrated electrostatic discharge safeguards; Protects connected devices with up to 8kV air and 4kV contact ESD protection
- FLEXIBLE MOUNTING OPTIONS: Built-in mounting brackets for wall or desk installation; DIN rail mounting hardware included; Screw-lock connectors on host and device ports to ensure a reliable and secure connection
- POWER OPTIONS: Rugged multiport hub is powered by either the DC barrel connection or terminal block using a 5 to 24V DC source (DC source not incl.); Optional power adapter available ITB20D3250 (sold separately) to power the hub via 2-wire terminal block
- POWER & CHARGE: When connected to a power source, the mountable port expander hub supports BC 1.2 charging; Each port supports 12W (2.4A); Overcurrent protection protects connected devices from overdrawing power
- Manufacturer
- StarTech.com
- Part number
- 5G4AINDNP-USB-A-HUB
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
Connect four USB Type-A 3.2 Gen 1 (5Gbps) devices to a single USB port on your computer, using a USB hub that's suitable for harsh industrial/commercial environments
Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.

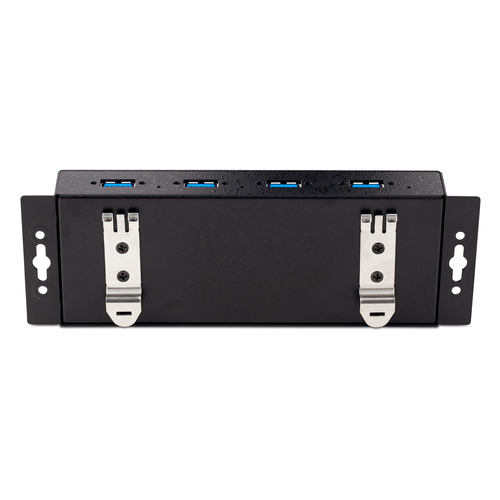

Mount to a Wall, Desk or DIN-Rail
Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices
This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.
The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.
With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
Wide Device Compatibility
The hub is OS independent ensuring support on a wide range of platforms including Windows, macOS and Linux.
Specifications
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
|---|---|
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ports quantity | 4 |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Data transfer rate | 5000 Mbit/s |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Cable length | 1.8 m |
| Plug and Play | Yes |
| Power plug type | Type M |
|---|
| Width | 59 mm |
|---|---|
| Depth | 178 mm |
| Height | 23 mm |
| Weight | 280 g |
| Package width | 151 mm |
|---|---|
| Package depth | 216 mm |
| Package height | 55 mm |
| Package weight | 500 g |
| Cables included | USB Type-A to USB Type-B |
|---|---|
| Quick start guide | Yes |
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Mean time between failures (MTBF) | 243753 h |
|---|
| Sustainability compliance | Yes |
|---|
| Master (outer) case width | 525 mm |
|---|---|
| Master (outer) case length | 439 mm |
| Master (outer) case height | 268 mm |
| Products per master (outer) case | 25 pc(s) |
| Compliance certificates | RoHS |
|---|
| Chipset | VIA/VLI - VL817-Q7 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
