StarTech.com 3-Port USB Hub with Ethernet - 3x USB-A Ports - Gigabit Ethernet (RJ-45) - USB 3.0 5Gbps - Bus-Powered - 1ft/30cm Long Cable - Portable Laptop USB Hub Adapter w/ GbE

Part number 5G3AGBB-USB-A-HUB

3-PORT USB HUB W/ GBE PORTABLE USB HUB ADAPTER WITH ETHERNET

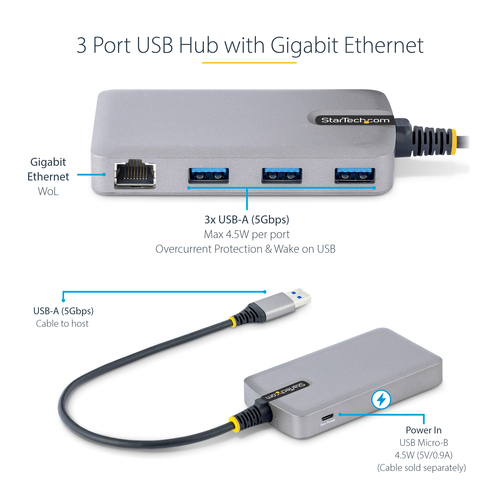

  • 3 PORT USB HUB: Bus-powered USB 3.2 Gen 1 (5Gbps) expansion hub features a USB-A host connector and 3-port USB-A hub, Overcurrent Protection (OCP) & Wake on USB - 4.5W of bus power dynamically shared between 3 downstream ports
  • GIGABIT ETHERNET: Features a built-in GbE adapter to provide the reliability and security of wired RJ45 Ethernet to a laptop or desktop - The GbE controller is fully compatible w/IEEE 802.3u/ab standards and supports WoL, Jumbo Frames, and V-LAN Tagging
  • AUXILIARY POWER INPUT: The USB hub features a Micro USB power input (cable sold separately) to add 4.5W (5V/0.9A) of power to the hub for applications where additional power may be required, such as connecting high power USB devices like SSDs/HDDs
  • EXTRA-LONG CABLE: Attached 1ft/30cm cable provides longer reach for easy setup and prevents adapter from dangling on the USB-A host connector - Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands
  • CONNECTIVITY TOOLS: Optimize the performance and security of this USB-A hub, using the included MAC Address Changer, USB Event Monitoring, Wi-Fi Auto Switch utilities (available for download) - Hub compatible with Windows/macOS/Linux/ChromeOS/Android
Manufacturer
StarTech.com
Part number
5G3AGBB-USB-A-HUB
Condition
New
Category
Input & Output Devices › Usb & Firewire Conn
1GPA category
Hardware

Overview

10/100/1000Mbps Ethernet | USB Type-A to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable

This USB Hub adds three USB-A 3.2 Gen 1 (5Gbps) ports and one Gigabit Ethernet port to a USB-A enabled desktop or laptop computer. The USB Hub connects to a USB-A port on a computer, using the built-in 1ft. (30cm) host cable. The USB hub is backward compatible with USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB peripherals (e.g., thumb drives, external HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets).The USB hub is compact in size, facilitating portability when travelling.

Gigabit Ethernet

The USB hub features a Gigabit Ethernet adapter. The Ethernet controller is compatible with the IEEE 802.3u/ab standards and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances laptop network reliability, security, and performance, by utilizing wired 10/100/1000Mbps Ethernet.

Bus-Powered with Optional Auxiliary Power

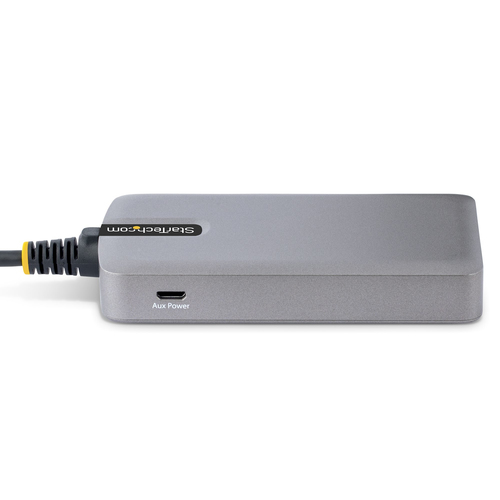

The USB hub can operate with bus power alone, but features a Micro USB power input that can be connected to a USB power adapter (not included), providing up to 4.5W (5V/0.9A) of power in addition to the 4.5W of bus power from the USB host. This flexibility is ideal for applications where additional power may be required, such as connecting a high-powered USB device, like an external SSD, while using the other ports to connect lower powered devices. For added protection, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.

Plug and Play

This device is OS independent, supporting all operating systems, including Windows, macOS, ChromeOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer, such as Apple MacBook, Lenovo X1 Carbon, and Dell XPS. The extra-long built-in 1ft. (30 cm) USB-A host cable enables quick and convenient setup and reduces connector strain on 2-in-1 devices, such as the Surface Pro 7 and laptops on riser stands.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:

• MAC Address Pass-Through Utility : Improve network security.

• USB Event Monitoring Utility : Track and log connected USB devices.

• Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools

This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
Micro-USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Microphone inNo
DC-in jackNo
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Jumbo frames supportYes
Jumbo frames9000
Flow control supportYes
Auto MDI/MDI-XYes
Full duplexYes
VLAN taggingYes
Performance
Card reader integratedNo
Product colourGrey
Hub interfacesMicro-USB, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
LED indicatorsActivity, Link
UASP supportYes
Housing materialPlastic
Power
Power source typeUSB
Power supply typeUSB
USB cable length0.3 m
Wireless chargingNo
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supportedYes
Other operating systems supportedAndroid
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)0 - 85%
Sustainability
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Weight & dimensions
Width50 mm
Depth420 mm
Height15 mm
Weight84 g
Packaging data
Package width170 mm
Package depth145 mm
Package height31 mm
Package weight140 g
Technical details
Compliance certificatesCE, RoHS
Logistics data
Products per master (outer) case70 pc(s)
Master (outer) case width481 mm
Master (outer) case length344 mm
Master (outer) case height444 mm
Other features
Cable length0.3 m
ChipsetVIA - VL817, Asix - AX88179A

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
