Products › Input & Output Devices
StarTech.com 4-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, Up to 230ft (70m), 1x4 HDMI over Ethernet Distribution Kit with IR and Power Over Cable
Part number 4K7014IC-EXTEND-HDMI
4-PORT HDMI EXTENDER/SPLITTER - 1X4 HDMI OVER ETHERNET KIT
- HDMI Over Ethernet Cabling: Extend HDMI signals to four remote displays over CAT6/6a with one transmitter; Supports lossless, low-latency 4K 60Hz video with 2ch audio up to 230ft (70m); Ideal for boardrooms, digital signage, education, and hospitality
- Power-Over-Cable: A single power adapter connects to the transmitter, and all four receivers are powered over the CAT6/6a cabling, simplifing installation in environments with limited power access while reducing cable clutter
- No Drivers or Software: One-to-many HDMI Extender requires no drivers, software, or IP configuration, reducing setup time; Works with any operating system (Windows, macOS, and ChromeOS) and hardware platform (Intel, AMD, and Apple Silicon)
- Versatile Mounting Options: 1x4 HDMI distribution kit includes mounting brackets for wall, ceiling, or under-table installation at both the transmitter and receivers; Compact form factor allows for descrite installation in tight spaces
- The IT Pro's Choice: Backed by decades of connectivity expertise from legacy VGA to modern USB4 and AVoIP solutions; Work with a single trusted partner for all your A/V connectivity needs; Free lifetime 24/5 multi-lingual technical assistance
- Manufacturer
- StarTech.com
- Part number
- 4K7014IC-EXTEND-HDMI
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
Split and extend a single 4K 60Hz HDMI signal to four HDMI displays over a distance of up to 230ft (70m) with Power over Cable
This HDMI extender and splitter delivers reliable 4K AV distribution to four displays over Ethernet cabling for professional AV installations. Enables flexible deployment using Ethernet cables for longer-range and in-wall runs. Ideal for centralized AV distribution in boardrooms, digital signage, educational facilities, and hospitality environments.

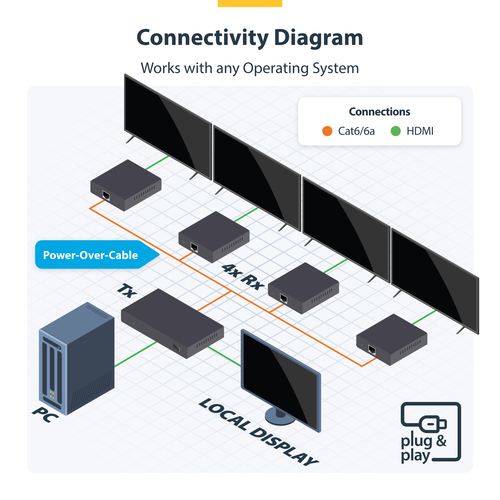

HDMI Over Ethernet Cabling

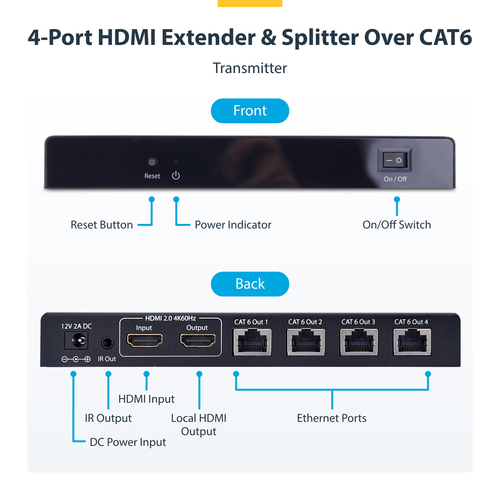

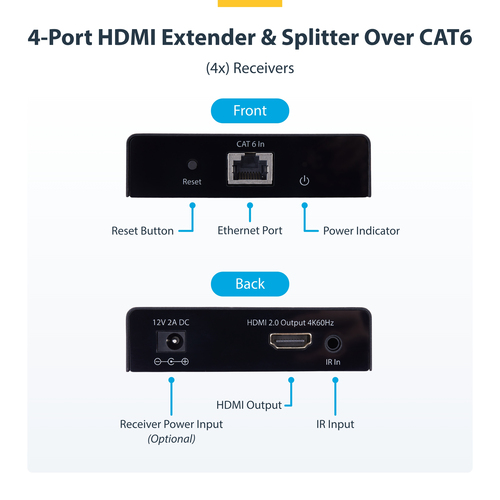

Extend HDMI signals to four remote displays over CAT6/6a cabling using a single transmitter. Transmitter features a HDMI output providing a direct connection for a local display. Supports 4K 60Hz video and 2 channel audio up to 230ft (70m). Includes IR extension support for remote control of the source device from any connected display.
Powered with a Single Power Adapter
Single power adapter connects to the transmitter; all four receivers are powered directly over the CAT6/6a cables. Simplifies installation in environments with limited power access and reduces overall cable clutter.
No Drivers, Software, or IP Configuration
Plug-and-play installation with no additional drivers, software, or network setup required. Supports any operating system including Windows, macOS, and ChromeOS, and is compatible with all hardware platforms including Intel, AMD, and Apple Silicon.
Versatile Mounting Options
1x4 HDMI distribution kit includes mounting brackets for wall, ceiling, or under-table installation at both transmitter and receiver locations. Compact form factor enables discreet installation in tight spaces.
Specifications
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Chipset | GSV5100 |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 2.0 channels |
| LED indicators | Yes |
| Rack mounting | No |
| Daisy chain | No |
| Product colour | Black |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Connectivity technology | Wired |
|---|---|
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| HDMI in | 1 |
| Number of HDMI outputs | 5 |
| Remote (IR) input | 4 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| AC input voltage | 100 - 240 V |
|---|---|
| Operating voltage | 12 V |
| Input current | 0.8 A |
| Output current | 2 A |
| Power consumption (typical) | 24 W |
| Power plug type | Type M |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 103 mm |
|---|---|
| Depth | 180 mm |
| Height | 23 mm |
| Weight | 375 g |
| Package width | 423 mm |
|---|---|
| Package depth | 345 mm |
| Package height | 60 mm |
| Package weight | 1.2 kg |
| AC adapter included | Yes |
|---|---|
| Included power plug types | ANZ, EU, NA, UK |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting kit | Yes |

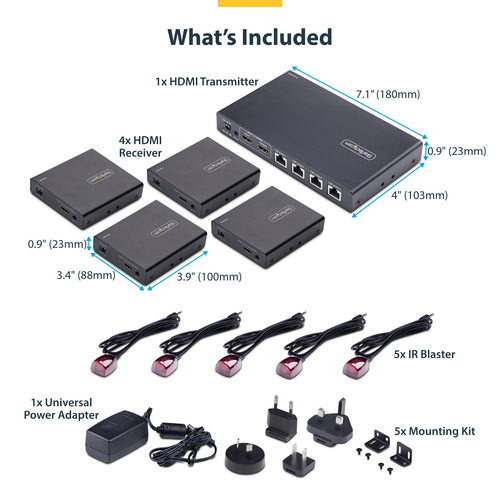

| Packaging content | 1 - HDMI Transmitter 4 - HDMI Receiver |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
|---|
| Master (outer) case width | 450 mm |
|---|---|
| Master (outer) case length | 367 mm |
| Master (outer) case height | 525 mm |
| Products per master (outer) case | 6 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
