SMART TECHNOLOGIES CORPORATION

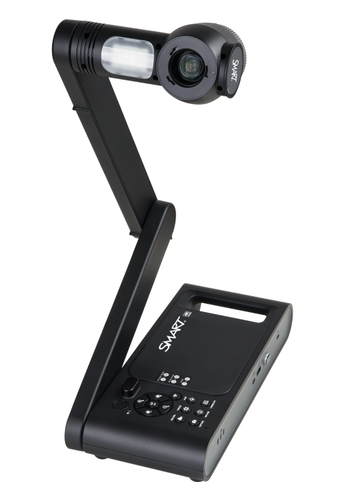

SMART Technologies SMART 650 document camera Black 25.4 / 3.2 mm (1 / 3.2") CMOS USB/Wi-Fi
Part number SDC-650
SMART DOC CAMERA 650
- 25.4 / 3.2 mm (1 / 3.2") CMOS
- 13 MP
- Supported graphics resolutions: 320 x 180, 320 x 240, 640 x 360, 640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1920, 3840 x 2160
- Video recording
- Image freeze
- Auto focus
- Interface: USB/Wi-Fi
- Black
- Manufacturer
- SMART TECHNOLOGIES CORPORATION
- Part number
- SDC-650
- Condition
- New
- Category
- Imaging Devices › Cameras
- 1GPA category
- Hardware
Overview
OVERVIEW
The SMART Document Camera 650 connects digital learning to the physical world. This easy-to-use 4K Ultra HD visualizer captures live video and images directly to the SMART Board interactive display, SMART Notebook software, or your desktop. The SDC-650 is a fully UVC-compliant camera with built-in microphone that can be used as a high-quality webcam with SMART Board displays, keeping the continuity of a classroom experience even while video conferencing. See smarttech.com for more information on this product.
Specifications
| Effective sensor resolution | 13 MP |
|---|---|
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Sensor type | CMOS |
| Supported graphics resolutions | 320 x 180, 320 x 240, 640 x 360, 640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1920, 3840 x 2160 |
| Video recording | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | 4K Ultra HD |
| Maximum frame rate | 30 fps |
| White balance | Auto, Manual |
| Light exposure modes | Auto, Manual |
| Image freeze | Yes |
| Light source | LED |
| Auto focus | Yes |
|---|---|
| Optical zoom | 10x |
| Digital zoom | 23x |
| Shooting area (WxD) | 480 x 345 mm |
| Interface | USB/Wi-Fi |
|---|---|
| HDMI input ports quantity | 1 |
| USB connector type | Mini-USB B, USB Type-A |
| USB 2.0 ports quantity | 3 |
| DC-in jack | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Product colour | Black |
|---|---|
| Control type | Buttons |
| Horizontal rotation angle | 0 - 90° |
| Panel mounting interface | 75 x 75 mm |
| Built-in microphone | Yes |
| Photo effects | Black&White, Negative film |
| Image quality adjustment | Brightness, Contrast |
| Certification | FCC, ISED,CONEG Packaging, Proposition 65, CE, UKCA, LVD,CB, EMCD,RED, REACH,RoHS,Battery,WEEE, Packaging,POP, EAC |
| Power supply type | AC |
|---|---|
| Power consumption (typical) | 13.7 W |
| Operating voltage | 5 V |
| Operating current | 3 A |
| Battery type | Built-in battery |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 30 - 85% |
| Width | 159 mm |
|---|---|
| Depth | 587 mm |
| Height | 546 mm |
| Weight | 2.6 kg |
| Dimensions folded (WxDxH) | 159 x 364 x 76 mm |
| Package width | 455 mm |
|---|---|
| Package depth | 175 mm |
| Package height | 270 mm |
| Package weight | 3.7 kg |
| AC adapter included | Yes |
|---|---|
| Remote control included | Yes |
| Remote control batteries included | Yes |
| Manual | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
