Products › Input & Output Devices

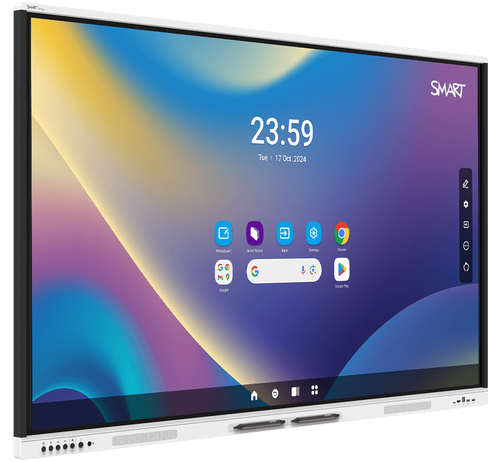

SMART Technologies GX Plus interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Grey HDMI
Part number GX186N-V4
SMART BOARD GX086-V4 PLUS INTERACTIVE DISPLAY WITH EMBEDDED OS (GMS)
- Touchscreen 2.18 m (86") Grey
- 4K Ultra HD 3840 x 2160 pixels
- 400 cd/m² 8 ms 60 Hz
- Built-in speaker(s) 20 W
- Wi-Fi 6 (802.11ax) Bluetooth 5.2 Ethernet LAN
- VESA mounting 800 x 600 mm
- Manufacturer
- SMART TECHNOLOGIES CORPORATION
- Part number
- GX186N-V4
- Condition
- New
- Category
- Input & Output Devices › Pointing Devices
- 1GPA category
- Hardware
Overview
Premium tech, wallet-friendly
All the essential teaching tools, plus quality you can trust, at a price that will surprise you. Now EDLA licensed for powerful Google and Microsoft integrations on Android 14.
Unlock the power of SMART in your classroom
SMART GX Plus is the well-equipped, affordable option from the makers of the original SMART Board® interactive display. Backed by SMART quality, get the essential teaching tools you need and the peace of mind you deserve.
The SMART Board GX Plus series provides all the features you’re looking for in an affordable interactive display and more, plus the added value, security, and reliability of an established technology partner in SMART Technologies.
Technical specifications and physical appearance may vary by region, see full specs for details.
Available in 65”, 75”, 86”
Save, compare and share product info about the GX Plus.
Bring reliable interactivity to your classroom
Touch designed for learning
With up to 50 points of interaction, teachers and students can interact and collaborate with ease. Object awareness™ means pens write, fingers move, and palms erase, so teachers can focus on teachable moments with no technology distractions.
SMART Ink
Flexibly annotate over everything
SMART’s best-in-class persistent ink tools for Windows and Mac easily add digital ink and presentation tools to the files and applications your teachers already know and use. Only SMART Ink provides multi-window support, so your annotations stay where you want them.
Embedded Android computing, EDLA licensed
No computer needed
Walk up and teach. Browse the web, and use the whiteboard, apps and widgets to increase student engagement. Enjoy powerful interoperability for Google for Education, Microsoft Office 365 apps, and all the other Android apps and education resources teachers know and love. All on an embedded platform with the power and security of Android.
SMART Mirror Screen Share
Integrate student devices with ease
Let students share ideas and classwork from connected student devices. Teachers can guide learning with touchback to Windows and Mac computers.
Free with your SMART Board
SMART Notebook
Award-winning desktop software for creating engaging learning experiences with your SMART Board – no subscription required. With SMART Notebook®, delivering exciting, engaging lessons has never been easier.
BYOD device support with USB-C
Works with your preferred platform
Windows, Mac, Chrome and more: interoperability with leading operating systems and front-facing connection ports make it easy for students and teachers to connect, interact and share.
USB-C supports video, touch and audio easy connectivity with only one cord.
Use SMART Ink with Windows & Mac, or write over any other input and capture your work with the built-in Android ink overlay app.
Essential Teaching Tools
The SMART Board GX Plus includes award-winning software at no additional cost and with no subscription required, enabling teachers to create, edit, and deliver lessons optimized for SMART Board interactive displays.
Specifications
| Display diagonal | 2.18 m (86") |
|---|---|
| Display brightness | 400 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Anti-glare screen | Yes |
| HD type | 4K Ultra HD |
| LED backlight | Yes |
| Response time | 8 ms |
| Maximum refresh rate | 60 Hz |
| Touchscreen | Yes |
| Touchscreen type | Infrared |
| Number of simultaneous touchpoints | 50 |
| Touch system response time | 2.5 ms |
| Touch object size (min) | 2 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Surface material | Tempered glass |
| Pen & touch differentiation | Yes |
| Accuracy touch | 1 mm |
| Operating system installed | Android |
|---|---|
| Operating system version | 14.0 |
| Built-in processor | Yes |
| Processor cores | 8 |
| User memory | 64 GB |
| RAM capacity | 8 GB |
| RAM type | DDR4 |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 20 W |
| Aspect ratio | 16:9 |
|---|
| Wi-Fi | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Interface | HDMI |
|---|---|
| HDCP | Yes |
| HDCP version | 2.3 |
| Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| USB connector type | USB Type-A |
| USB 2.0 Type-A hub ports quantity | 1 |
| USB 2.0 Type-B Touch ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI output ports quantity | 1 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| OPS slot | 1 |
| RS-232 ports | 1 |
| Product colour | Grey |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Power cable length | 5 m |
| Ambient light sensor | Yes |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Power consumption (typical) | 130 W |
|---|---|
| Power consumption (standby) | 0.2 W |
| AC input voltage | 115 V |
| AC input frequency | 60 Hz |
| Battery type | AAA |
| Number of batteries supported | 2 |
| Mobile operating systems supported | Android |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Width | 1957 mm |
|---|---|
| Depth | 96 mm |
| Height | 1160 mm |
| Weight | 51 kg |
| Package width | 2110 mm |
|---|---|
| Package depth | 185 mm |
| Package height | 1291 mm |
| Package weight | 66 kg |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
|---|---|
| Cables included | Power, USB Type-A to USB micro Type-B, USB Type-C |
| Remote control included | Yes |
| Batteries included | Yes |
| Number of stylus pens | 2 |
| OPS specifications | 65 W |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
