Overview
The Shuttle XH610G establishes itself as the benchmark for efficient AIoT computing within its compact 3-liter form factor. Powered by the Intel H610 chipset, it effortlessly supports Intel® 14th LGA1700 65W Processors – the latest Raptor Lake-S Refresh platform. Integrated Intel® UHD graphics ensure faster image processing and seamless 4K triple outputs, addressing tasks ranging from media and graphic design to immersive entertainment experiences and AI data processing.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Built-in processor | No |
|---|
Memory
| Memory slots type | SO-DIMM |
|---|
| Number of memory slots | 2 |
|---|
| Maximum internal memory | 64 GB |
|---|
| Supported memory clock speeds | 5600 MHz |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
Storage
| Supported storage drive types | HDD & SSD |
|---|
| Storage drive sizes supported | 2.5,M.2 |
|---|
| Storage drive interface | PCI Express, Serial ATA III |
|---|
| NVMe | Yes |
|---|
Graphics
| On-board graphics card | Yes |
|---|
Performance
| Motherboard chipset | Intel H610 |
|---|
| Processor socket | LGA 1700 |
|---|
| Number of processors supported | 1 |
|---|
| Audio chip | Realtek ALC888S |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|

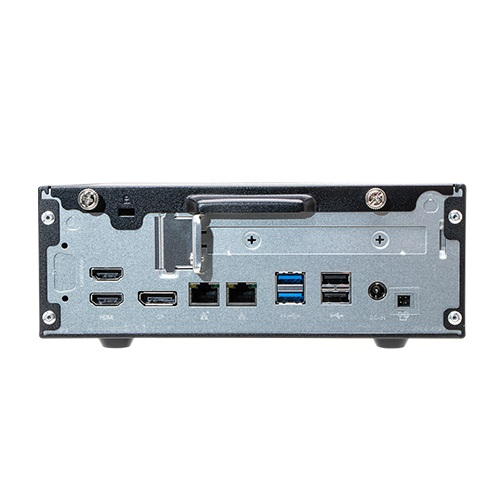

Ports & interfaces
| USB 2.0 ports quantity | 4 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.0b |
|---|
| DisplayPorts quantity | 1 |
|---|
| Microphone in | Yes |
|---|
| Headphone outputs | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| DC-in jack | Yes |
|---|
Design
| Chassis type | 3L sized PC |
|---|
| Product colour | Black |
|---|
| Cooling type | Active |
|---|
| On/off switch | Yes |
|---|
| LED indicators | Yes |
|---|
| Product type | PC barebone |
|---|
Technical details
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, UKCA, VCCI, cTUVus |
|---|
Software
| Windows operating systems supported | Windows 11 |
|---|
Power
| Power supply type | Internal power supply unit |
|---|
| Power supply | 180 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| AC adapter output voltage | 19.5 V |
|---|
| AC adapter output current | 9.23 A |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
Weight & dimensions
| Width | 250 mm |
|---|
| Depth | 200 mm |
|---|
| Height | 78.5 mm |
|---|
| Weight | 1.9 kg |
|---|
Packaging content
| Power cord included | Yes |
|---|
| AC adapter included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Drivers included | Yes |
|---|
