SHUTTLE COMPUTER XH610

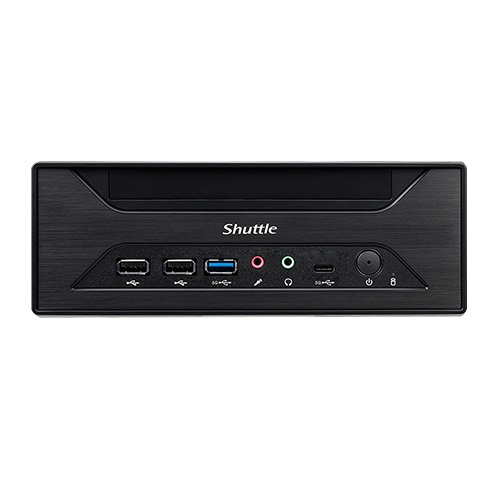

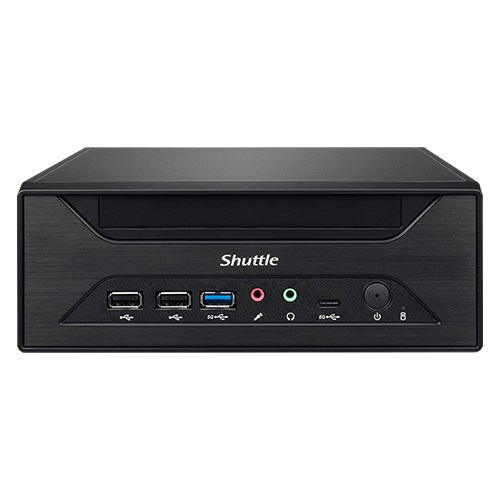

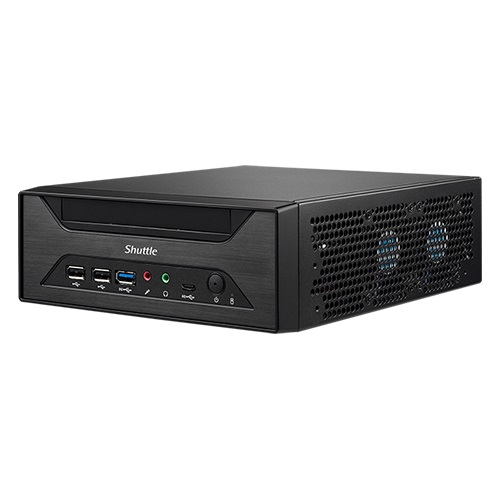

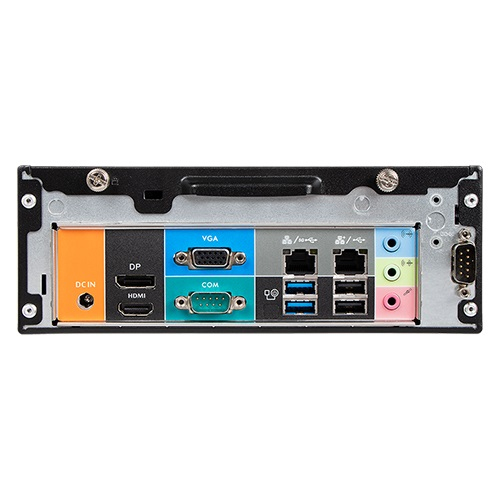

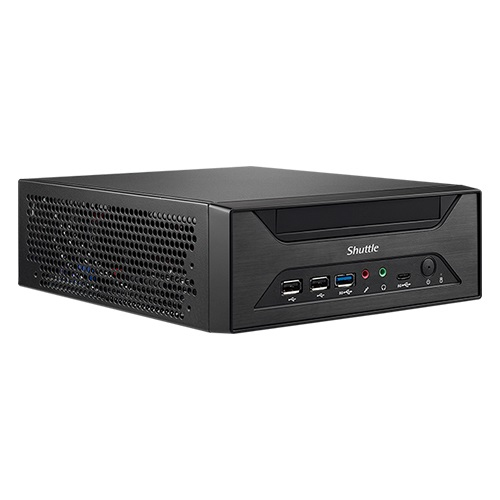

View 1 View 2 View 3 View 4 View 5
SHUTTLE COMPUTER

Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 permanent operation

Part number XH610

SHUTTLE XPC XH610 BAREBONE PC H610 CHIPSET NO CPU/RAM/HDD/SSD/OS

  • 3.5L sized PC Black
  • 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
  • HDD & SSD 2.5"
  • On-board graphics card
  • Ethernet LAN
Manufacturer
SHUTTLE COMPUTER
Part number
XH610
Condition
New
Category
Computer Systems › Barebones Systems
1GPA category
Hardware

Overview

Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business

Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.

Specifications

Processor
Built-in processorNo
Memory
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Supported memory clock speeds2133,2400,2666,2933,3200 MHz
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Memory voltage1.2 V
ECCNo
Non-ECCYes
Storage
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
Storage drive interfaceM.2, PCI Express, Serial ATA III
NVMeYes
Graphics
On-board graphics cardYes
Graphics card familyIntel
Performance
Motherboard chipsetIntel H610
Processor socketLGA 1700
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio
Built-in speaker(s)No
Network
Ethernet LANYes
Wi-FiNo
Ports & interfaces
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
DisplayPort version1.4a
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
COM ports quantity2
DC-in jackYes
Expansion slots
Number of M.2 (M) slots1
Design
Chassis type3.5L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84733080
Software
Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo
Sustainability
Sustainability certificatesENERGY STAR, ErP
Power
Power supply typeExternal AC adapter
Power supply120 W
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
AC adapter output voltage19 V
AC adapter output current6.32 A
Operational conditions
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90%
Weight & dimensions
Width200 mm
Depth238 mm
Height72 mm
Weight2.2 kg
Package weight3.5 kg
Packaging content
Quick start guideYes
Drivers includedYes
Other features
Country of originChina

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
