Overview

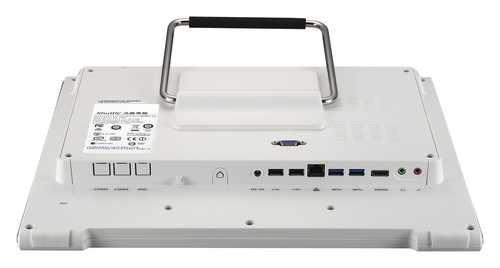

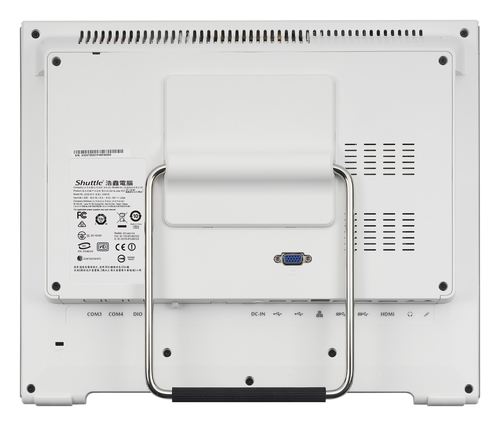

The Shuttle XPC all-in-one X50V8 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Specifications
Display
| Display diagonal | 39.6 cm (15.6") |
|---|
| Display resolution | 1366 x 768 pixels |
|---|
| Touchscreen | Yes |
|---|
| HD type | HD |
|---|
| Display brightness | 220 cd/m² |
|---|
| Panel type | LCD |
|---|
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Celeron® |
|---|
| Processor model | 5205U |
|---|
| Processor cores | 2 |
|---|
| Processor threads | 2 |
|---|
| Processor frequency | 1.9 GHz |
|---|
| Processor cache | 2 MB |
|---|
| Thermal Design Power (TDP) | 15 W |
|---|
| Configurable TDP-down frequency | 0.8 GHz |
|---|
| Configurable TDP-down | 12.5 W |
|---|
| Processor lithography | 14 nm |
|---|
Memory
| Maximum internal memory | 64 GB |
|---|
| Memory slots type | SO-DIMM |
|---|
| Supported memory clock speeds | 2400 MHz |
|---|
Storage
| Number of storage drives supported | 1 |
|---|
| SSD form factor | 2.5" |
|---|
| Optical drive type | No |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | SD, SDHC, SDXC |
|---|
Graphics
| Discrete graphics card | No |
|---|
| Discrete graphics card model | Not available |
|---|
| On-board graphics card | Yes |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card model | Intel® UHD Graphics |
|---|
Audio
| Built-in speaker(s) | Yes |
|---|
| Number of speakers | 2 |
|---|
| RMS rated power | 2 W |
|---|
Camera
| Built-in camera | Yes |
|---|
| Camera resolution | 1920 x 1080 pixels |
|---|
| Camera HD type | Full HD |
|---|
Network
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|---|
| WLAN controller model | Realtek RTL8821CE |
|---|
| Ethernet LAN | Yes |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 4.2 |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| USB 2.0 ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 1.4a |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| Headphone outputs | 1 |
|---|
| Microphone in | Yes |
|---|
| DC-in jack | Yes |
|---|
Design
| Product colour | White |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
Performance
| Product type | All-in-One PC barebone |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
Software
| Operating system installed | No |
|---|
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|
| Intel Clear Video Technology | Yes |
|---|
| Intel Flex Memory Access | Yes |
|---|
| Intel Trusted Execution Technology | No |
|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
|---|
| Intel TSX-NI | No |
|---|
| Intel Software Guard Extensions (Intel SGX) | Yes |
|---|
| Intel 64 | Yes |
|---|
| Execute Disable Bit | Yes |
|---|
| Idle States | Yes |
|---|
| CPU configuration (max) | 1 |
|---|
| Embedded options available | No |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
|---|
| Intel Virtualization Technology (VT-x) | Yes |
|---|
Power
| AC adapter output voltage | 19 V |
|---|
Weight & dimensions
| Weight | 3.5 kg |
|---|
| Package weight | 4.2 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Drivers included | Yes |
|---|
| Power cord included | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 84713000 |
|---|
Other features
| Graphics card family | Intel |
|---|
| AC adapter output current | 3.42 A |
|---|
| Storage drive interface | Serial ATA III |
|---|
| Chassis type | All-in-One |
|---|
| Maximum resolution | 3840 x 2160 pixels |
|---|
| Power supply | 65 W |
|---|
| Power supply type | External AC adapter |
|---|
