Overview

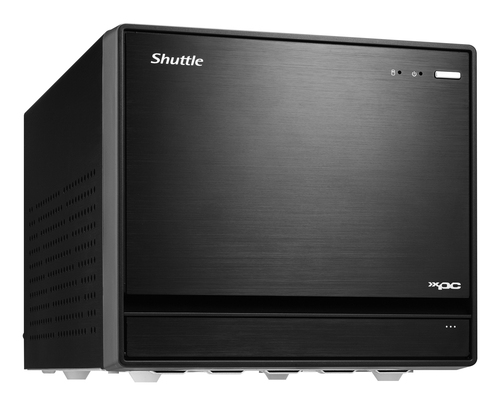

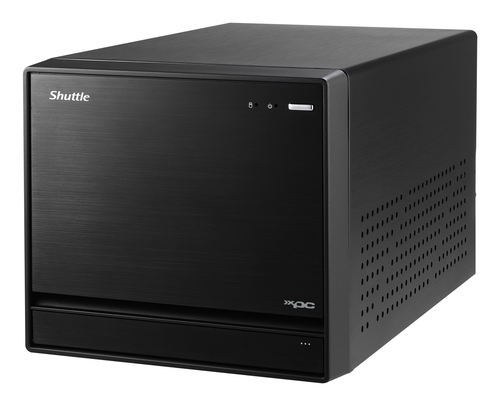

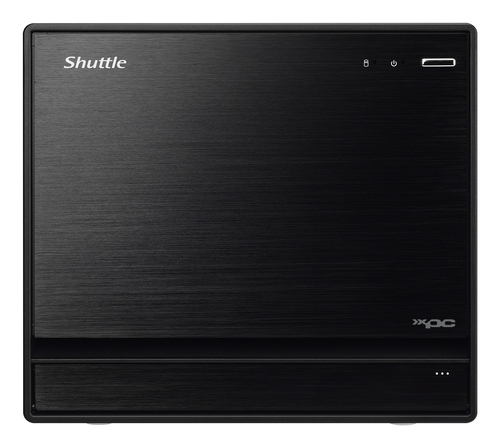

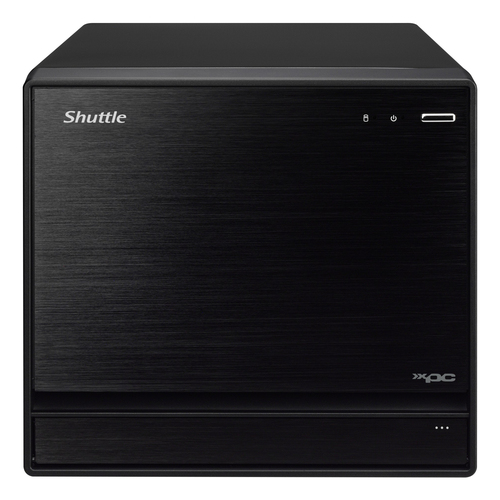

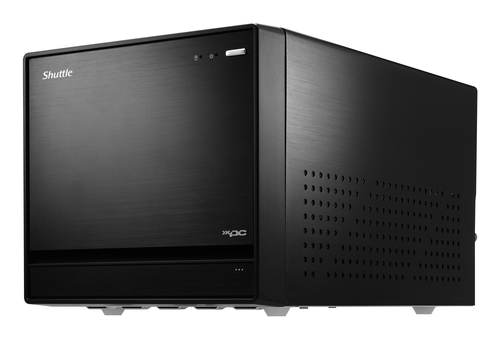

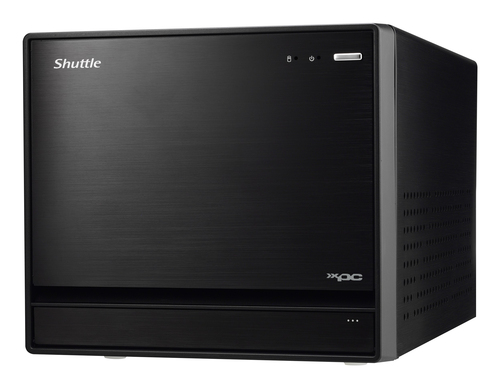

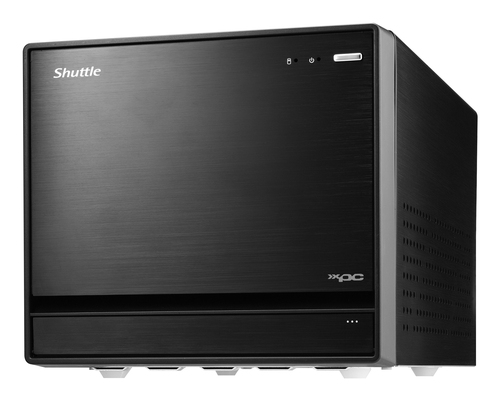

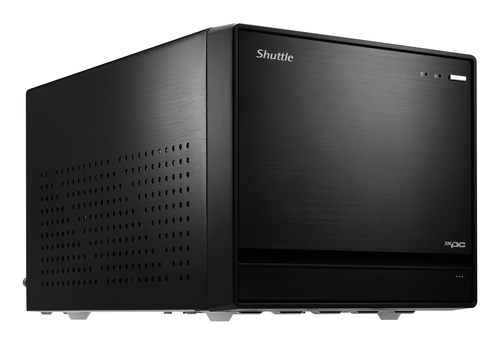

This well-cooled 14-litre barebone PC in cube format houses the performance of Intel's Core Ultra 200 series processors (Socket LGA1851 "Arrow Lake-S") with Integrated Neural Processing Unit (NPU) for demanding AI workloads. It accommodates four large 3.5" hard disks, four RAM moduls, two M.2 SSD cards and a dual-slot graphics card. There are also a wide range of connection options: four UHD-compatible graphics outputs, ten USB ports, two network connections, and five audio ports. Such impressive performance and range of features in an aluminum chassis with a volume of only 14 liters makes SB860R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.
Specifications
Processor
| Built-in processor | No |
|---|
Memory
| Internal memory installed | No |
|---|
| Memory slots type | DIMM |
|---|
| Number of memory slots | 4 |
|---|
| Maximum internal memory | 192 GB |
|---|
| Supported memory clock speeds | 5600 MHz |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
| Memory channels | Dual-channel |
|---|
| Memory voltage | 1.1 V |
|---|
| ECC | No |
|---|
| Non-ECC | Yes |
|---|
Storage
| Storage drives installed | No |
|---|
| Supported storage drive types | HDD & SSD |
|---|
| Storage drive sizes supported | 2.5,M.2 |
|---|
| M.2 SSD size | 2280 (22 x 80 mm) |
|---|
| Storage drive interface | Serial ATA III, PCI Express |
|---|
| NVMe | Yes |
|---|
Graphics
| On-board graphics card | Yes |
|---|
Performance
| Motherboard chipset | Intel B860 |
|---|
| Processor socket | LGA 1851 (Socket V1) |
|---|
| Number of processors supported | 1 |
|---|
| BIOS type | AMI |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
| Audio chip | RealTek ALC888 |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| LAN controller | Intel I226-LM |
|---|
Ports & interfaces
| USB 2.0 ports quantity | 5 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.0b/2.1 |
|---|
| DisplayPorts quantity | 2 |
|---|
| DisplayPort version | 1.4 |
|---|
| Microphone in | Yes |
|---|
| Headphone outputs | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 2 |
|---|
Design
| Chassis type | Cube |
|---|
| Product colour | Black |
|---|
| Cooling type | Active |
|---|
| On/off switch | Yes |
|---|
| LED indicators | HDD, Power |
|---|
| Housing material | Aluminium |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Product type | PC barebone |
|---|
Technical details
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RoHS |
|---|
Software
| Windows operating systems supported | Windows 11 |
|---|
| Linux operating systems supported | Yes |
|---|
Sustainability
| Sustainability certificates | ErP, ENERGY STAR |
|---|
Power
| Power supply type | Internal power supply unit |
|---|
| Power supply | 500 W |
|---|
| Number of power supply units | 1 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
Weight & dimensions
| Width | 215 mm |
|---|
| Depth | 332 mm |
|---|
| Height | 190 mm |
|---|
| Weight | 3.9 kg |
|---|
| Package weight | 5 kg |
|---|
Packaging content
| Power cord included | Yes |
|---|
| AC adapter included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Drivers included | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
