Overview

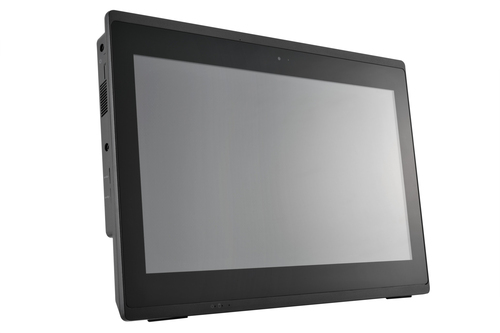

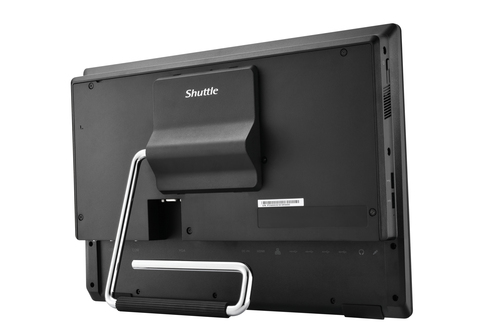

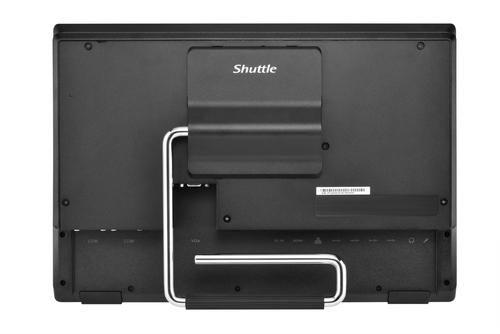

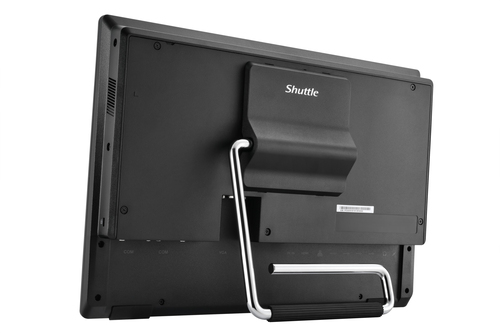

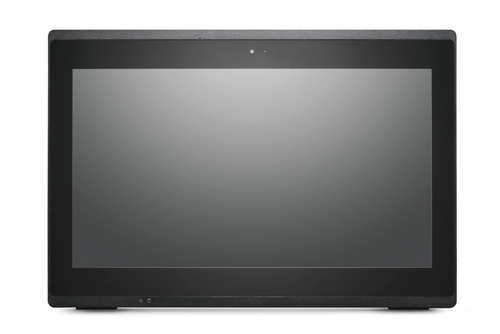

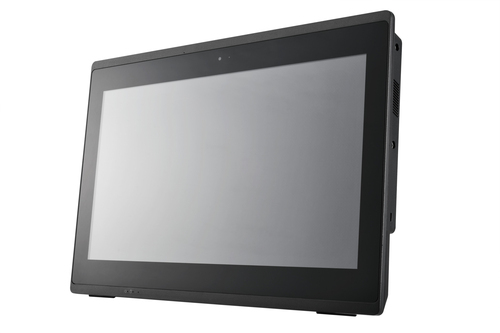

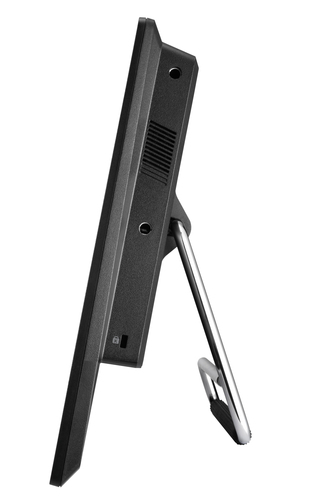

The Shuttle XPC all-in-one PC series P55U comes with a capacitive 15.6" multi-touchscreen in Full-HD resolution and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture has a very positive effect on power consumption and computing performance. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Core™ i3 |
|---|
| Processor model | i3-1315U |
|---|
| Processor cores | 6 |
|---|
| Processor threads | 8 |
|---|
| Processor boost frequency | 4.5 GHz |
|---|
| Performance cores | 2 |
|---|
| Efficient cores | 4 |
|---|
| Performance-core Max Turbo Frequency | 4.5 GHz |
|---|
| Efficient-core Max Turbo Frequency | 3.3 GHz |
|---|
| Built-in processor | Yes |
|---|
| Processor cache | 10 MB |
|---|
Memory
| Memory slots type | SO-DIMM |
|---|
| Number of memory slots | 2 |
|---|
| Maximum internal memory | 96 GB |
|---|
| Supported memory clock speeds | 4800 MHz |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
| Memory channels | Dual-channel |
|---|
| Memory voltage | 1.1 V |
|---|
| ECC | No |
|---|
| Non-ECC | Yes |
|---|
Storage
| Supported storage drive types | SSD |
|---|
| Storage drive sizes supported | M.2 |
|---|
| SSD form factor | M.2 |
|---|
| Storage drive interface | PCI Express |
|---|
| NVMe | Yes |
|---|
Graphics
| On-board graphics card | Yes |
|---|
| Graphics card family | Intel |
|---|
| On-board graphics card model | Intel® UHD Graphics |
|---|
| Number of displays supported | 3 |
|---|
Performance
| Motherboard chipset | Intel SoC |
|---|
| Processor socket | LGA 1700 |
|---|
| Number of processors supported | 1 |
|---|
| BIOS type | AMI EEPROM |
|---|
| Built-in camera | Yes |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
| Audio chip | Realtek ALC888S |
|---|
Display
| Display diagonal | 39.6 cm (15.6") |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| Touchscreen | Yes |
|---|
| HD type | Full HD |
|---|
| Aspect ratio | 16:9 |
|---|
| Display brightness | 250 cd/m² |
|---|
| Panel type | IPS |
|---|
Audio
| Built-in speaker(s) | Yes |
|---|
| Number of speakers | 2 |
|---|
| RMS rated power | 2 W |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|---|
| WLAN controller model | Realtek RTL8821CE |
|---|
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
| LAN controller | Intel I219V |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 4.2 |
|---|

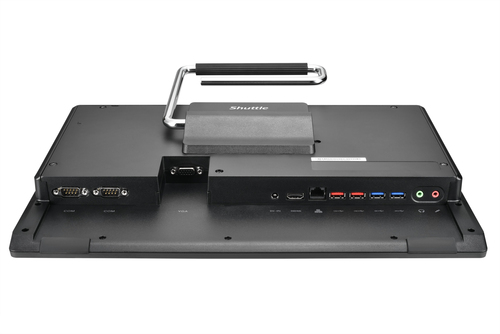

Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.0b |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| Microphone in | Yes |
|---|
| Headphone outputs | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| COM ports quantity | 2 |
|---|
| DC-in jack | Yes |
|---|
Expansion slots
| Number of M.2 (M) slots | 2 |
|---|
Design
| Chassis type | All-in-One |
|---|
| Product colour | Black |
|---|
| Cooling type | Passive |
|---|
| LED indicators | Power, SSD |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
| Product type | All-in-One PC barebone |
|---|
Technical details
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus |
|---|
Logistics data
| Harmonized System (HS) code | 84714100 |
|---|
Software
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
|---|
| Linux operating systems supported | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Power
| Power supply type | External AC adapter |
|---|
| Power supply | 90 W |
|---|
| Number of power supply units | 1 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| AC adapter output voltage | 19 V |
|---|
| AC adapter output current | 4.74 A |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
Weight & dimensions
| Width | 393.6 mm |
|---|
| Depth | 39.8 mm |
|---|
| Height | 272.5 mm |
|---|
| Weight | 3.25 kg |
|---|
| Package weight | 4.5 kg |
|---|
Packaging content
| Power cord included | Yes |
|---|
| AC adapter included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Drivers included | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
