Overview
The fourth generation of Shuttle's XPC nano series

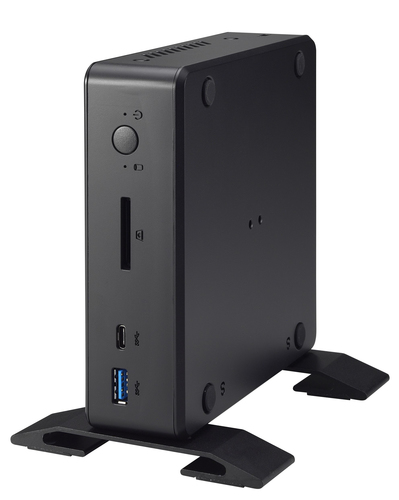

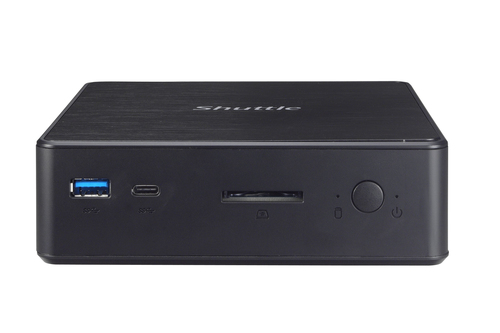

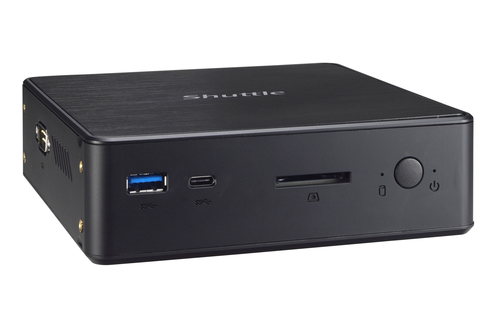

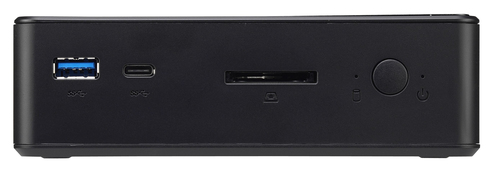

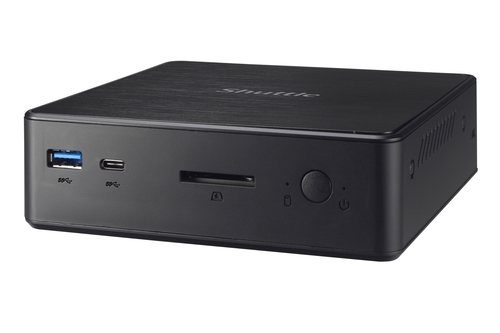

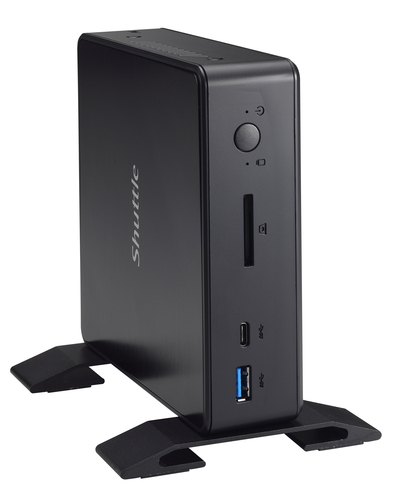

Shuttle's NC10 series is powered by Intel's power-saving ULV (ultra-low-voltage) processors of the Whiskey-Lake-U generation and comprises four models with processors from Celeron to Core i7. All four models support two digital video outputs for UHD/4K displays with 60 Hz and one 2.5" drive that is up to 15 mm in height as well as one M.2-2280 NVMe SSD card. Professional users will appreciate Intel Gigabit-LAN and one serial port which indicates what purposes the NC10 series is mainly intended for Digital Signage, POS, control, office or even multimedia.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Celeron® |
|---|
| Processor model | 4205U |
|---|
| Processor cores | 2 |
|---|
| Processor threads | 2 |
|---|
| Processor frequency | 1.8 GHz |
|---|
| Built-in processor | Yes |
|---|
| Processor lithography | 14 nm |
|---|
| Thermal Design Power (TDP) | 15 W |
|---|
| Processor codename | Whiskey Lake |
|---|
| CPU configuration (max) | 1 |
|---|
Memory
| Memory slots type | SO-DIMM |
|---|
| Number of memory slots | 2 |
|---|
| Maximum internal memory | 64 GB |
|---|
| Supported memory clock speeds | 2133,2400,2666 MHz |
|---|
| Supported memory types | DDR4-SDRAM |
|---|
| Memory channels | Dual-channel |
|---|
| Memory voltage | 1.2 V |
|---|
| Non-ECC | Yes |
|---|
Storage
| Supported storage drive types | HDD & SSD |
|---|
| Storage drive sizes supported | 2.5" |
|---|
| Storage drive interface | Serial ATA III |
|---|
| Number of storage drives supported | 1 |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | SD, SDHC, SDXC |
|---|
Graphics
| On-board graphics card | Yes |
|---|
| Graphics card family | Intel |
|---|
| On-board graphics card model | Intel® UHD Graphics 620 |
|---|
Performance
| Motherboard chipset | Intel SoC |
|---|
| Processor socket | BGA 1528 |
|---|
| BIOS type | AMI |
|---|
| BIOS memory size | 8 Mbit |
|---|
| Audio chip | Realtek ALC662 |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
|---|
| Ethernet LAN | Yes |
|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
|---|
| Wi-Fi | Yes |
|---|
| LAN controller | Intel® I211 |
|---|

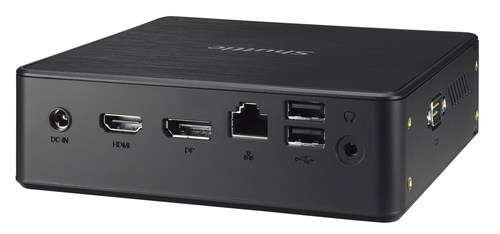

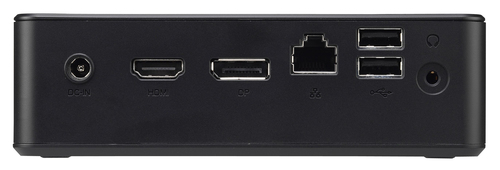

Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.0a |
|---|
| DisplayPorts quantity | 1 |
|---|
| DisplayPort version | 1.2 |
|---|
| Combo headphone/mic port | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| COM ports quantity | 1 |
|---|
| DC-in jack | Yes |
|---|
Expansion slots
| PCI Express slots version | 2.0 |
|---|
| Number of M.2 (M) slots | 1 |
|---|
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
|---|
Design
| Chassis type | Nettop |
|---|
| Product colour | Black |
|---|
| Cooling type | Active |
|---|
| On/off switch | Yes |
|---|
| LED indicators | HDD, Power |
|---|
| Housing material | Plastic |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
|---|
| Product type | Mini PC barebone |
|---|
| Safety | CB, BSMI, ETL |
|---|
Processor special features
| Embedded options available | No |
|---|
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
|---|
| Intel® Quick Sync Video Technology | Yes |
|---|
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
|---|
| Intel® Turbo Boost Technology | No |
|---|
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
|---|
| Intel 64 | Yes |
|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|
| Idle States | Yes |
|---|
| Enhanced Intel SpeedStep Technology | Yes |
|---|
| Thermal Monitoring Technologies | Yes |
|---|
| Intel Flex Memory Access | Yes |
|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
|---|
| Intel Trusted Execution Technology | No |
|---|
| Execute Disable Bit | Yes |
|---|
| Intel TSX-NI | No |
|---|
| Intel® Secure Key | Yes |
|---|
| Intel® Smart Response Technology | Yes |
|---|
| Intel® OS Guard | Yes |
|---|
| Intel Clear Video Technology | Yes |
|---|
| Intel Virtualization Technology (VT-x) | Yes |
|---|
Technical details
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|
Certificates
| Certification | RCM, RED, VCCI |
|---|
Software
| Windows operating systems supported | Windows 10 |
|---|
| Linux operating systems supported | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, ErP |
|---|
Power
| Power supply type | External AC adapter |
|---|
| Power supply | 65 W |
|---|
| Number of power supply units | 1 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| AC adapter output voltage | 19 V |
|---|
| AC adapter output current | 3.42 A |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
Weight & dimensions
| Width | 142 mm |
|---|
| Depth | 142 mm |
|---|
| Height | 42 mm |
|---|
| Weight | 400 g |
|---|
| Package weight | 1.2 kg |
|---|
Packaging content
| Power cord included | Yes |
|---|
| AC adapter included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Drivers included | Yes |
|---|
