Shuttle XPC slim Barebone DS50U7, i7-1355U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Part number DS50U7
SHUTTLE DS50U7 CORE I5-1355U DUAL LAN FANLESS DDR5 MAX 64GB
- Fanless 1.3L-PC supports 24/7 operating
- Dual LAN (1x 2.5Gbit , 1x 1Gbit) , 1x COM (RS232) , VESA
- HDMI, Display Port and VGA
- Manufacturer
- SHUTTLE COMPUTER
- Part number
- DS50U7
- Condition
- New
- Category
- Computer Systems › Barebones Systems
- 1GPA category
- Hardware
Overview
Fanless Slim PC with integrated ULV processor in industrial design

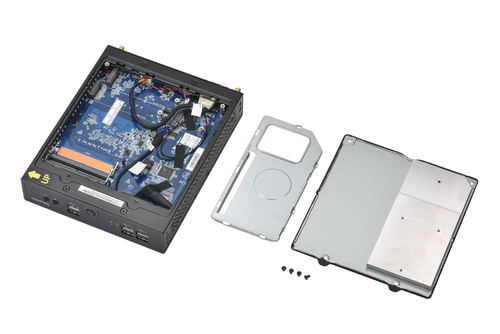

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.
Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U7 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-1355U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 5 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Built-in processor | Yes |
| Performance-core boost frequency | 5 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Processor cache | 12 MB |
| Thermal Design Power (TDP) | 15 W |
| ECC supported by processor | No |
| Memory slots type | SO-DIMM |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 3 |
| On-board graphics card | Yes |
|---|---|
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Number of processors supported | 1 |
|---|---|
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Built-in speaker(s) | No |
|---|
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| LAN controller | Intel® I219, Intel I226-LM |
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Chassis type | 1.3L sized PC |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Steel |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
| Windows operating systems supported | Windows 10, Windows 11 |
|---|---|
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP |
| Power supply type | External AC adapter |
|---|---|
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 1.6 A |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 200 mm |
|---|---|
| Depth | 165 mm |
| Height | 39.5 mm |
| Weight | 1.6 kg |
| Package weight | 2.3 kg |
| Power cord included | Yes |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
