Shuttle XPС slim DS20U 1.3L sized PC Black 5205U Intel SoC 1.9 GHz
Part number DS20U
SHUTTLE DS20U CELERON 5205U DUAL LAN FANLESS DDR4 MAX 64GB
- Fanless 1.3L-PC supports 24/7 operating
- Dual Gigabit LAN, 1x COM (RS232) , VESA
- HDMI, Display Port and VGA
- Manufacturer
- SHUTTLE COMPUTER
- Part number
- DS20U
- Condition
- New
- Category
- Computer Systems › Barebones Systems
- 1GPA category
- Hardware
Overview
Fanless Slim PC with a Comet-Lake-U processor in industrial design

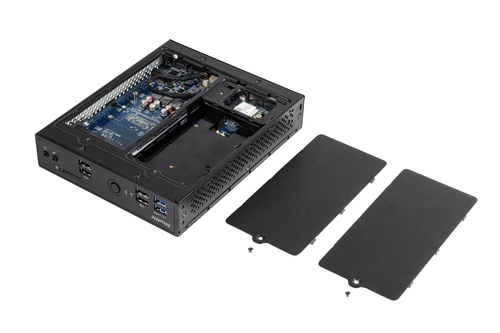

The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one tradi-tional D-Sub/VGA connector. The built-in Intel "Comet-Lake-U" processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5" drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5" bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Celeron® |
| Processor model | 5205U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.9 GHz |
| Built-in processor | Yes |
| Processor lithography | 14 nm |
| Processor cache | 2 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Memory slots type | SO-DIMM |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Non-ECC | Yes |
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| On-board graphics card | Yes |
|---|---|
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Motherboard chipset | Intel SoC |
|---|---|
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Built-in speaker(s) | No |
|---|
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| LAN controller | Intel® I211, Intel® I219-LM |
| USB 2.0 ports quantity | 4 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Number of M.2 (M) slots | 1 |
|---|
| Chassis type | 1.3L sized PC |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Embedded options available | No |
|---|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel TSX-NI | No |
| Intel Clear Video Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Harmonized System (HS) code | 84713000 |
|---|
| Windows operating systems supported | Windows 10, Windows 11 |
|---|---|
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Power supply type | External AC adapter |
|---|---|
| Power supply | 65 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 165 mm |
|---|---|
| Depth | 200 mm |
| Height | 39.5 mm |
| Weight | 1.5 kg |
| Package weight | 2.2 kg |
| Power cord included | Yes |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Country of origin | China |
|---|
