SHUTTLE COMPUTER

Shuttle Slim PC DH810 , S1851, 1x HDMI (2.1), 1x DP, 1x USB-C (DP), 1x 2.5", 2x M.2, 2x LAN (Intel 1G + 2.5G), 2x COM, 24/7 permanent operation, incl. VESA

Part number DH810

SHUTTLE SLIM DH810 BAREBONE PC H810 CHIPSET NO CPU/RAM/HDD/SSD/OS

Socket LGA1851 supports Intel Core Ultra 200 series i9 / i7 / i5 processors
Intel Arc graphics (4K/8K), supports 3 displays
Supports 24/7 Nonstop Operation
Up to 96GB DDR5 RAM
2x LAN , 8x USB

Manufacturer: SHUTTLE COMPUTER
Part number: DH810
Condition: New
Category: Computer Systems › Barebones Systems
1GPA category: Hardware

Overview

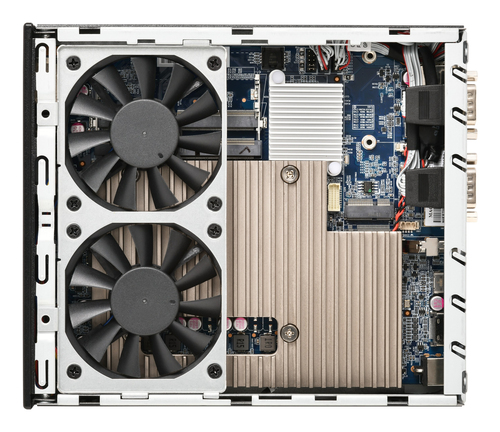

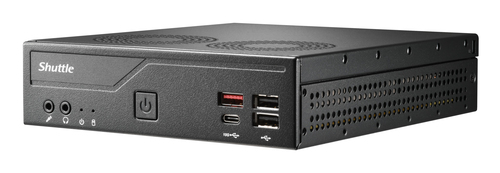

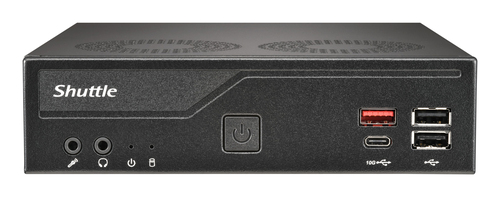

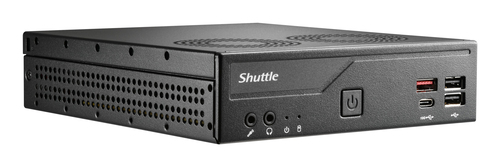

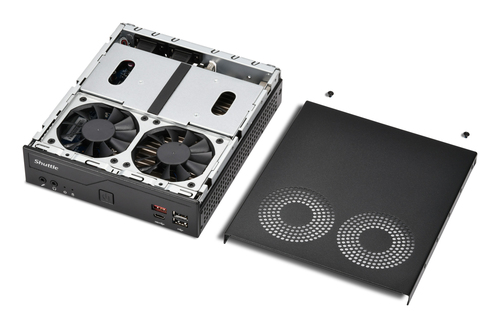

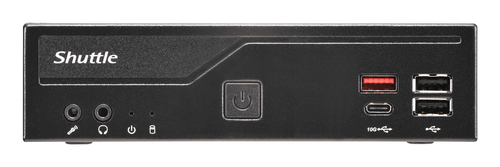

The Shuttle XPC slim Barebone DH810 is a robust 1.3-litre PC designed for powerful Intel Core Ultra 200 desktop processors (LGA1851 socket, “Arrow Lake-S”) with an integrated AI accelerator (NPU). Three independent display outputs – HDMI 2.1 supporting up to 8K/60 Hz, DisplayPort 1.4a, and USB-C with DisplayPort/USB4 – deliver stunning visuals for digital signage, entertainment, or office environments. Dual Intel LAN (2.5G + 1G), eight USB ports, two COM ports, and versatile storage options (M.2 PCIe 4.0 x4/SATA and 2.5" bay) provide maximum flexibility. Its slim metal chassis with VESA mount ensures reliable 24/7 operation at ambient temperatures up to 50 °C, making it ideal for demanding applications such as AI workloads, digital signage, POS/POI, gaming, healthcare, industry, and office.

Specifications

Processor
Built-in processor	No

Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	96 GB
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Memory voltage	1.1 V
ECC	No
Non-ECC	Yes

Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
SSD form factor	M.2
Storage drive interface	M.2, PCI Express, Serial ATA
NVMe	Yes
Number of storage drives supported	2

Graphics
On-board graphics card	Yes

Performance
Processor socket	LGA 1851 (Socket V1)
Number of processors supported	1
BIOS type	EFI AMI
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Audio output channels	2.0 channels
Audio chip	Realtek ALC888S

Audio
Built-in speaker(s)	No

Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I219, Intel I226

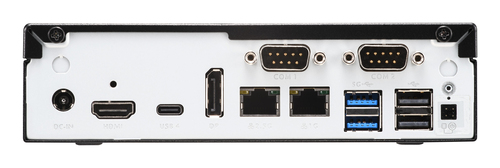

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 2x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4a
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	2
DC-in jack	Yes

Design
Chassis type	1.35L sized PC
Product colour	Black
Cooling type	Active
LED indicators	HDD, Power
Housing material	Metal
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Product type	Mini PC barebone

Technical details
Compliance certificates	BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI

Logistics data
Harmonized System (HS) code	84733080

Software
Windows operating systems supported	Windows 11
Linux operating systems supported	Yes

Sustainability
Sustainability certificates	ENERGY STAR, ErP

Power
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width	165 mm
Depth	190 mm
Height	43 mm
Weight	1.3 kg
Package weight	2.1 kg

Packaging content
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
Drivers included	Yes
