Overview

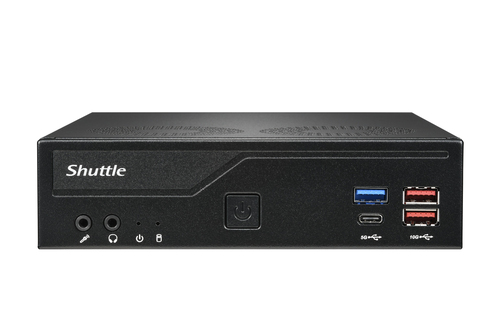

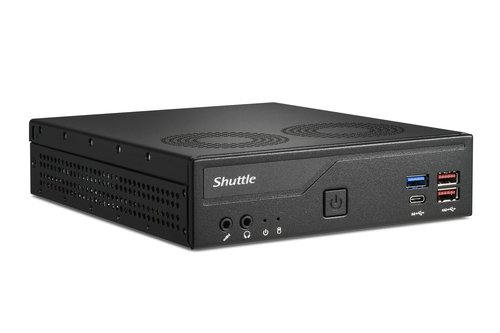

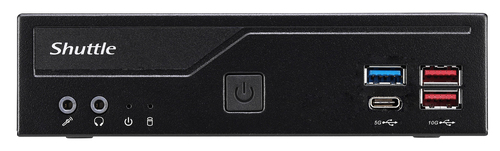

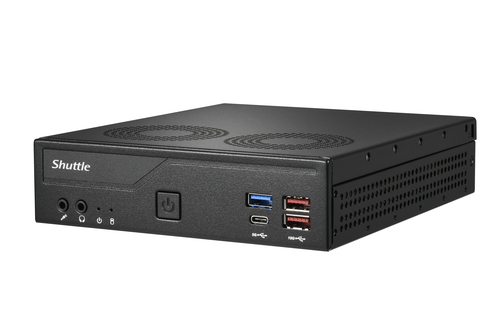

Robust 1.3-litre Slim PC supports Intel Core processors with Socket LGA1700 and four UHD displays
The Shuttle XPC slim Barebone DH770 with H770 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH770 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel 2.5G LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Specifications
Processor
| Built-in processor | No |
|---|
Memory
| Internal memory installed | No |
|---|
| Memory slots type | SO-DIMM |
|---|
| Number of memory slots | 2 |
|---|
| Maximum internal memory | 64 GB |
|---|
| Supported memory clock speeds | 5600 MHz |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
| Memory channels | Dual-channel |
|---|
| Memory voltage | 1.1 V |
|---|
| ECC | No |
|---|
| Non-ECC | Yes |
|---|
Storage
| Storage drives installed | No |
|---|
| Supported storage drive types | HDD & SSD |
|---|
| Storage drive sizes supported | 2.5,M.2 |
|---|
| Storage drive interface | PCI Express, Serial ATA III |
|---|
| NVMe | Yes |
|---|
Graphics
| On-board graphics card | No |
|---|
Performance

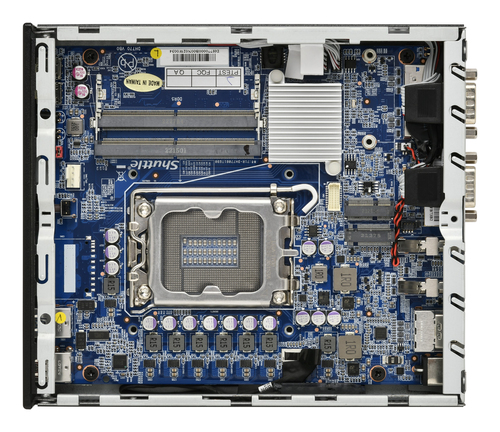

| Motherboard chipset | Intel H770 |
|---|
| Processor socket | LGA 1700 |
|---|
| Number of processors supported | 1 |
|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
|---|
| BIOS type | UEFI AMI |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
| Audio chip | Realtek ALC888S |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| LAN controller | Intel I226-LM |
|---|

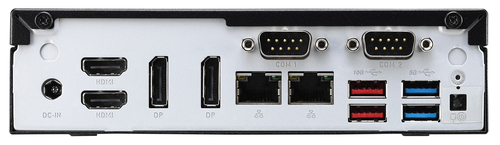

Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.0b |
|---|
| DisplayPorts quantity | 2 |
|---|
| DisplayPort version | 1.4 |
|---|
| Microphone in | Yes |
|---|
| Combo headphone/mic port | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| Serial ports quantity | 2 |
|---|
| DC-in jack | Yes |
|---|
Design
| Chassis type | 1.35L sized PC |
|---|
| Product colour | Black |
|---|

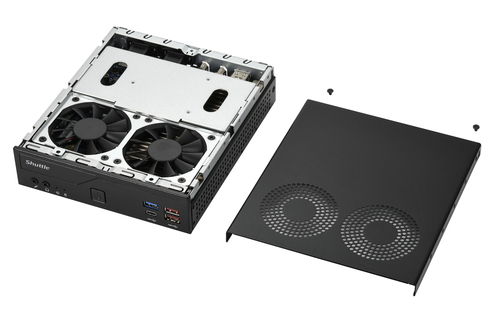

| Cooling type | Active |
|---|
| On/off switch | Yes |
|---|
| LED indicators | HDD, Power |
|---|
| Housing material | Metal |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 75 mm |
|---|
| Product type | Mini PC barebone |
|---|
Technical details
| Compliance certificates | BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, ErP |
|---|
Power
| Power supply type | External AC adapter |
|---|
| Power supply | 120 W |
|---|
| Number of power supply units | 1 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| AC adapter output voltage | 19 V |
|---|
| AC adapter output current | 6.32 A |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
Weight & dimensions
| Width | 190 mm |
|---|
| Depth | 165 mm |
|---|
| Height | 43 mm |
|---|
| Weight | 1.3 kg |
|---|
| Package weight | 2.1 kg |
|---|
Packaging content
| Power cord included | Yes |
|---|
| AC adapter included | Yes |
|---|
| Drivers included | Yes |
|---|
Other features
| Country of origin | China |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
