Products › Presentation Devices

Sharp

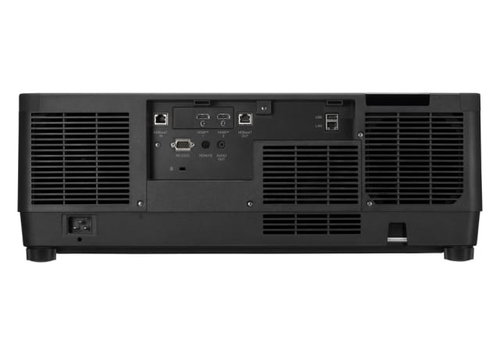

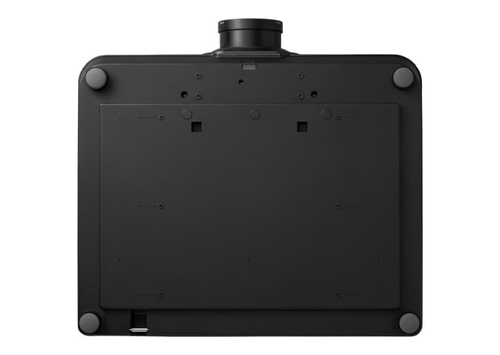

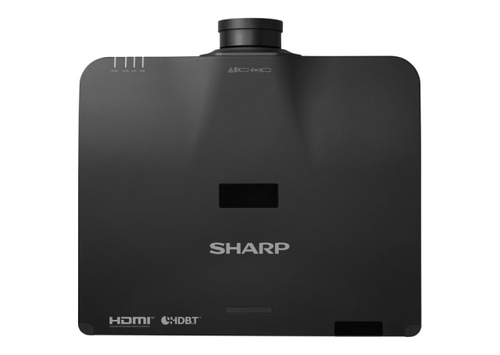

Sharp XP-A824U Standard throw projector 7500 ANSI lumens 3LCD WUXGA (1920x1200) 3D Black

Part number XP-A824U-B

8,200 LUMEN, WUXGA, LASER, LCD PROJECTOR, BLACK

  • Standard throw projector Black
  • 3LCD 7500 ANSI lumens
  • Laser 20000 h
  • WUXGA (1920x1200) 16:10 3000000:1
  • Screen size compatibility: 1016 - 12700 mm (40 - 500")
  • Focus: Motorized
  • Ethernet LAN
  • 3D
  • AC 615 W
Manufacturer
Sharp
Part number
XP-A824U-B
Condition
New
Category
Presentation Devices › Projectors

Overview

Extreme efficiency in the sharpest detail

With precise white point calibration and an extended colour space, the A Series uses 12-bit colour signal processing to achieve rich saturation and deep contrast, perfect for detailed visual content in education, public displays, and simulation environments.

The sealed optical engine, rated IP5X against dust ingress, maintains stable image quality and sustained brightness over time. The filter-less LCD design combined with a laser light source removes the need for lamp replacements, minimising service costs and enabling up to 20,000 hours of operation.

Installation is streamlined with Sharp’s ProAssist software, enabling remote setup and adjustment even when the projector is inaccessible. Wide lens shift, along with advanced features such as HDBaseT-out, blending, and stacking capabilities, ensures flexible integration in complex environments.

Specifications

Projector
Supported aspect ratios16:10
Screen size compatibility1016 - 12700 mm (40 - 500")
Projection distance0.7 - 50.9 m
Projector brightness7500 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)3000000:1
Native aspect ratio16:10
Horizontal scan range15 - 153 kHz
Vertical scan range24 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°
Light source
Light source typeLaser
Service life of light source20000 h
Lens system
FocusMotorized
Horizontal lens shift range-20 - 20%
Vertical lens shift range-50 - 10%
Video
3DYes
Ports & interfaces
USB 2.0 Type-A ports quantity1
Audio (L/R) in1
Audio (L/R) out2
Serial interface typeRS-232
HDMI ports quantity2
3G-SDI input1
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Features
Noise level (economic mode)28 dB
HDCPYes
Noise level34 dB
Design
Product typeStandard throw projector
Product colourBlack
Display
Built-in displayNo
Power
Power sourceAC
Power consumption (typical)615 W
Power consumption (standby)0.28 W
Power consumption (economy mode)560 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%
Weight & dimensions
Width599 mm
Depth490 mm
Height208 mm
Weight24.1 kg
Packaging content
Remote control includedYes
Remote control typeIR
Cables includedAC

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
