Sharp PN-UN553S LCD Indoor
Part number PN-UN553S
55IN LED LCD SPVA 25 HAZE 700 CD/M2 ULTRA NARROW BEZEL (0.88MM)
- Easy installation – effortless set up with Auto TileMatrix and out-of-the-box calibration. Ready-to-use image presets save time for predefined application scenarios.
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
- Lifelike and consistent colour – experience true to life colour reproduction with IPS panel technology. Uniform visibility is maintained in both landscape and portrait orientation, as well as at wide viewing angles as viewers pass by.
- Secure reliability and longevity – The metal chassis aids natural heat dissipation while the unique heat management system allows users to monitor and control internal temperatures, safeguarding components against heat build-up.
- Cost Saving Device Management – save effort whilst managing all connected Sharp and legacy devices from a centralised location by using the NaViSet Administrator 2 software tool.
- Manufacturer
- Sharp
- Part number
- PN-UN553S
- Condition
- New
- Category
- Displays › Large Format Displays
Overview
Seamless video walls to amplify your brand
Scale up your visual impact with the modular Sharp MultiSync® UN Series, purpose-designed with ultra-narrow bezels to create high-resolution video walls with minimal image interruption.
Advanced intelligent features and imaging performance powered by SpectraViewTM ensure precise and consistent visualisation across the entire wall, creating the impression of a single, continuous surface for clear and engaging content presentation.
Engineered for 24/7 operation in public spaces, the series combines robust metal construction with advanced thermal management to deliver reliable, long-lasting performance.
Drawing on its heritage of engineering excellence, the 55-inch Sharp MultiSync® UN553S delivers uncompromising quality and dependable operation for demanding applications in corporate and transportation environments and for mission-critical control room scenarios
Specifications
| Display technology | LCD |
|---|---|
| Display diagonal | 139.7 cm (55") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Native aspect ratio | 16:9 |
| Display brightness | 700 cd/m² |
| Contrast ratio (typical) | 3500:1 |
| Native refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Horizontal scan range | 26 - 134 kHz |
| Vertical scan range | 23 - 86 Hz |
| Haze rate | 25% |
| Colour gamut | 72% |
| Display diagonal (metric) | 138.8 cm |
| Placement supported | Indoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |

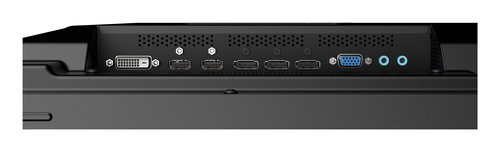

| HDMI ports quantity | 3 |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 3 |
| DisplayPorts in | 2 |
| DisplayPorts out | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 input ports | 1 |
| HDCP | Yes |
| Audio input | Yes |
| Audio output | Yes |
| Power consumption (typical) | 180 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 146 kWh |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 1210.5 mm |
|---|---|
| Depth | 103 mm |
| Height | 681.3 mm |
| Weight | 28.1 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
