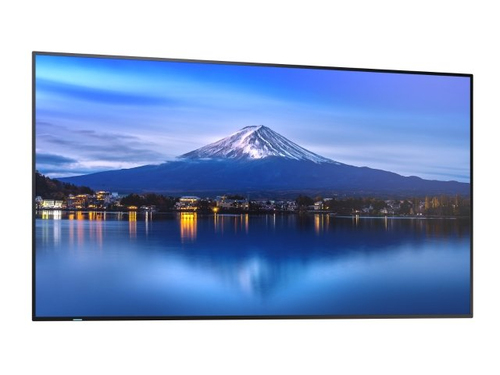

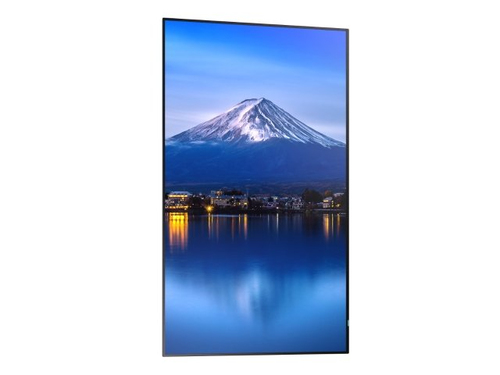

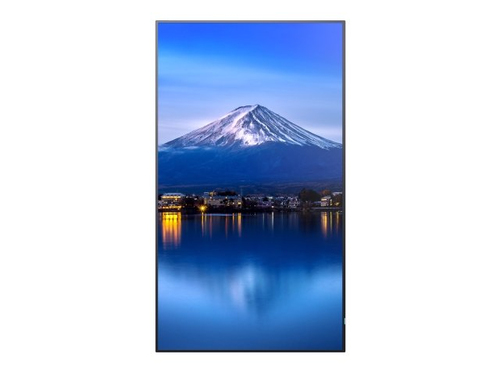

Sharp PN-P506 Signage Display Digital signage flat panel 127 cm (50") LCD 700 cd/m² 4K Ultra HD Black Built-in processor 24/7
Part number PN-P506
50IN PROFESSIONAL DISPLAY, MULTISYNC P506 -LED LCD PUBLIC DISPLAY , 3840 X 2160
- Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured – 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Mission-critical performance – with 700 cd/m² brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
- Trusted integration – full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.
- Manufacturer
- Sharp
- Part number
- PN-P506
- Condition
- New
- Category
- Displays › Large Format Displays
Overview
Precision performance for critical applications
When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.
Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.
Specifications
| Panel type | VA |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 127 cm (50") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 700 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.285 x 0.285 mm |
| Active display area (W x H) | 1095.8 x 616.4 mm |
| Display diagonal (metric) | 126 cm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 76 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| HDMI ports quantity | 3 |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| SDM module slot | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.39 cm |
| Bezel width (side) | 1.09 cm |
| Bezel width (top) | 1.09 cm |
| Purpose | Universal |
|---|---|
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power consumption (typical) | 95 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 85 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | Yes |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Display width | 1121.6 mm |
|---|---|
| Display depth | 66.5 mm |
| Display height | 645.2 mm |
| Display weight | 18 kg |
| Package width | 1245 mm |
|---|---|
| Package depth | 188 mm |
| Package height | 785 mm |
| Package weight | 23 kg |
| Remote control included | Yes |
|---|---|
| Cables included | USB Type-C |
| Mounting kit | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Temperature sensor | Yes |
|---|---|
| Ambient light sensor | Yes |
| Eco sensor | Yes |
| Ethernet LAN | Yes |
|---|
| Power supply type | Internal |
|---|
