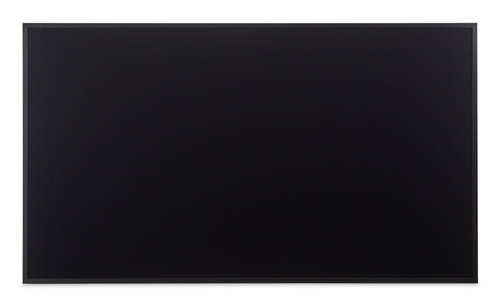

Sharp PN-ME432 Signage Display Digital signage flat panel 109.2 cm (43") 400 cd/m² 4K Ultra HD Black Android
Part number PN-ME432
MULTISYNC PN-ME432 - 43 LED LCD PUBLIC DISPLAY MONITOR, 3840 X 2160 (UHD), 18/7,
Indoor Digital signage flat panel Black
109.2 cm (43") 3840 x 2160 pixels 400 cd/m²
Direct-LED 60 Hz 8 ms
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Ethernet LAN
Built-in speaker(s)
Manufacturer
Sharp
Part number
PN-ME432
Condition
New
Category
Displays › Large Format Displays
Overview
Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial NEC ME Series large format displays. By focusing on bringing high-powered, integrated and easy-to-use media playback to the customer all while maintaining the proven reliability and quality of previous product, the ME series gives customers a reliable mainstream display to fit all of their digital signage needs. The flexible system-on-chip platform not only allows for highend media playback via USB or internal storage but since these products are powered by Android 13, they also allow the ability to install separate APK’s if a third-party application needs to be installed. On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.
Specifications
Display
Panel type
ADS
LED backlight
Yes
LED backlighting type
Direct-LED
Display diagonal
109.2 cm (43")
Display resolution
3840 x 2160 pixels
Display brightness
400 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.25 x 0.25 mm
Active display area (W x H)
941.18 x 529.42 mm
Horizontal scan range
30 - 135 kHz
Vertical scan range
23 - 76 Hz
Adjustable colour temperature
Yes
Colour temperature
10000 K
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Native refresh rate
60 Hz
Ports & interfaces
HDMI ports quantity
3
HDMI version
2.0
DVI port
No
USB port
Yes
USB ports quantity
4
USB connector type
USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN (RJ-45) ports
1
RS-232C
Yes
Audio
Built-in speaker(s)
Yes
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
Screen shape
Flat
VESA mounting
Yes
Panel mounting interface
200 x 200 mm
Performance
Purpose
Commercial
HDCP
Yes
Power
Power consumption (typical)
90 W
Power consumption (standby)
0.5 W
Power consumption (max)
175 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
93 kWh
Computer system
Computer system
Yes
Operating system installed
Android
Operating system version
13
Weight & dimensions
Display width
964.6 mm
Display depth
62 mm
Display height
552.5 mm
Display weight
9.4 kg
Packaging data
Package width
1056 mm
Package depth
156 mm
Package height
632 mm
Package weight
14.2 kg
Operational conditions
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 80%
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
No
Technical details
Viewing angle (Horizontal/Vertical)
178
Other features
Headphone connectivity
3.5 mm
Headphone outputs
1
USB 2.0 ports quantity
1
Power supply type
Internal
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
