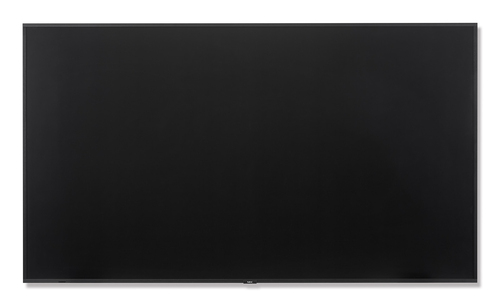

Sharp MultiSync M862 Digital signage flat panel 2.18 m (86") LCD 550 cd/m² 4K Ultra HD Black 24/7
Part number PN-M862
MULTISYNC PN-M862 - 86 LCD PUBLIC DISPLAY MONITOR, 3840 X 2160, 24/7, 550 CD/M2,
- Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences
- Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments
- Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content
- Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability
- Manufacturer
- Sharp
- Part number
- PN-M862
- Condition
- New
- Category
- Displays › Large Format Displays
Overview
Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Specifications
| Panel type | IPS |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 550 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Display diagonal (metric) | 217.2 cm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 76 Hz |
| High Dynamic Range (HDR) supported | Yes |
| Native refresh rate | 60 Hz |
| RGB colour space | NTSC |
| HDMI ports quantity | 3 |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-C |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.48 cm |
| Bezel width (side) | 1.43 cm |
| Bezel width (top) | 1.43 cm |
| Mounting type | Wall |
| Purpose | Universal |
|---|---|
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power consumption (standby) | 0.5 W |
|---|---|
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 189 kWh |
| Energy consumption (HDR) per 1000 hours | 167 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Display width | 1927.6 mm |
|---|---|
| Display depth | 83.2 mm |
| Display height | 1099.1 mm |
| Display weight | 47 kg |
| Package width | 2090 mm |
|---|---|
| Package depth | 225 mm |
| Package height | 1225 mm |
| Package weight | 64 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | -20 - 60% |
| Ambient light sensor | Yes |
|---|---|
| Eco sensor | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100 Mbit/s |
| Sustainability certificates | ENERGY STAR |
|---|---|
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), REACH, RoHS, UKCA, UL |
| Headphone connectivity | 3.5 mm |
|---|---|
| Headphone outputs | 1 |
| Power supply type | Internal |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
