Sharp LM551 Interactive flat panel 139.7 cm (55") LED Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 14 18/7
Part number PN-LM551
55IN LED LCD INTERACTIVE WHITEBOARD 3840 X 2160 (UHD) 18/7
- Best readability – high brightness panel ensures content is readable even in well-lit environments and anti-glare coating avoids distracting reflections
- Pen-On-Paper user experience – Zero bonded glass and latest infrared touch technology enable highly accurate and responsive writing and drawing with up to 20 touch points

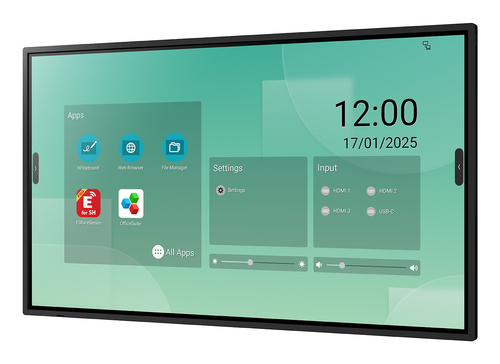

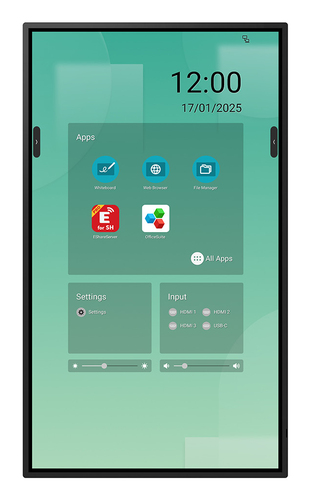

- Out-of-the-box collaboration – the integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications
- Highly customizable – a variety of settings allow the display to be optimised to meet the needs of different applications, from small meeting and huddle rooms to touch signage and wayfinding
- Safe & Secure – latest Android 14 SoC provides a secure operating system which, together with extra security features, meets the highest IT security standards
- Manufacturer
- Sharp
- Part number
- PN-LM551
- Condition
- New
- Category
- Displays › Touchscreen Monitors
Overview
Multi-purpose for interactive engagements
For best-in-class touch performance and value, the Sharp LM series commands feature-rich professional capabilities for small meeting spaces and interactive signage applications. An integrated System on Chip (SoC) with Android 14 CTS-compliant Operating System offers the most up to date features and security for seamless out-of-the-box collaboration.
Boosting creativity in group collaboration, the Sharp LM series features intuitive Pen-on-Paper writing, a built-in whiteboard, annotation overlay mode and Windows Ink support. Using the on-board EShare app, content can be wirelessly shared from any personal device to the display without the need for apps or dongles. A single USB-C cable transmits data, video/audio output and power delivery between notebook and display for the simplest and seamless BYOD workflows.

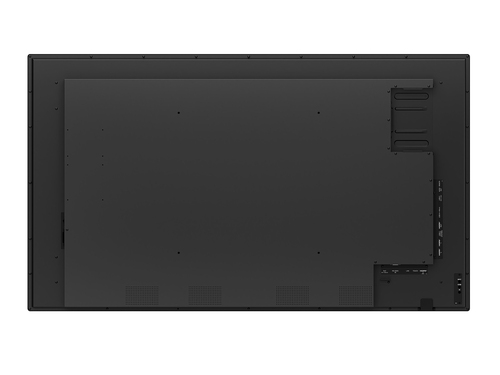

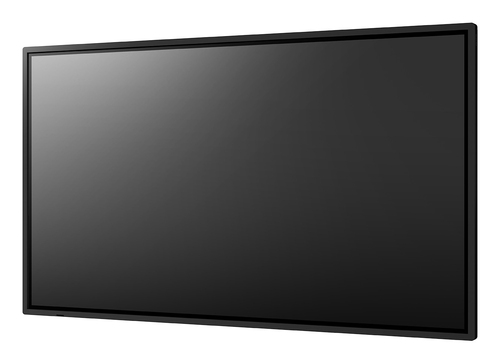

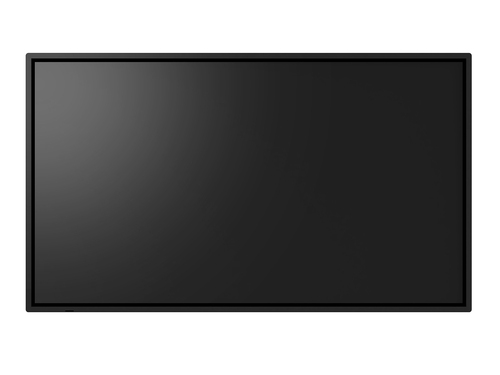

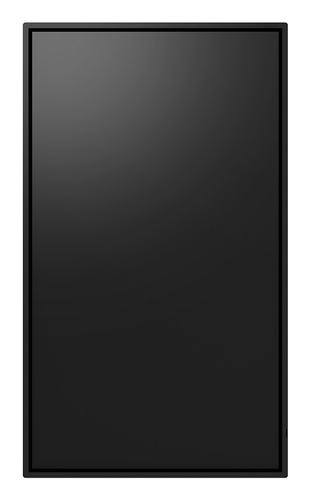

With its 4-sided uniform slim bezel design, the Sharp LM series supports installations in both landscape and portrait as well as tilted desk. Dedicated features including hide side bars, application lock and a built-in web browser make the Sharp LM series the perfect display for budget-driven interactive signage applications.
Specifications
| Panel type | VA |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 139.7 cm (55") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Display diagonal (metric) | 138.8 cm |
| Horizontal scan range | 31.5 - 135 kHz |
| Vertical scan range | 24 - 70 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| HDMI ports quantity | 4 |
|---|---|
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 7 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Interactive flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 1.5 cm |
| Bezel width (side) | 1.5 cm |
| Bezel width (top) | 1.5 cm |
| Purpose | Universal |
|---|---|
| Operating hours (hours/days) | 18/7 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Power consumption (typical) | 145 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Built-in processor | Yes |
|---|---|
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | Cortex-A53 |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Processor cores | 8 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 14 |
| Operating system version | 14 |
| Display width | 1265 mm |
|---|---|
| Display depth | 73 mm |
| Display height | 736 mm |
| Display weight | 33 kg |
| Package width | 1410 mm |
|---|---|
| Package depth | 185 mm |
| Package height | 885 mm |
| Package volume | 43000 cm³ |
| Package weight | 43 kg |
| Stand included | No |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Certification | ISO 9241-307, Class 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Base material | Metal |
|---|---|
| Suitable for indoor use | Yes |
| Wall mountable | Yes |
| Sustainability certificates | ENERGY STAR |
|---|---|
| Warranty period | 3 year(s) |
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), RoHS, UKCA |
| Bluetooth | Yes |
|---|---|
| Bluetooth version | 5.3 |
