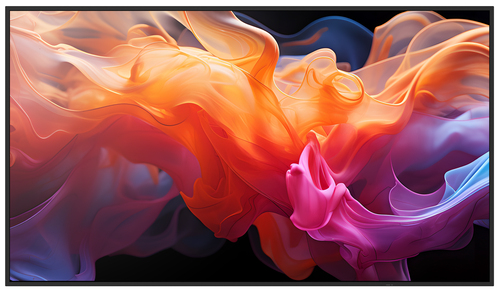

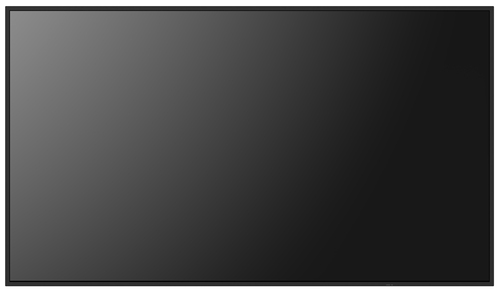

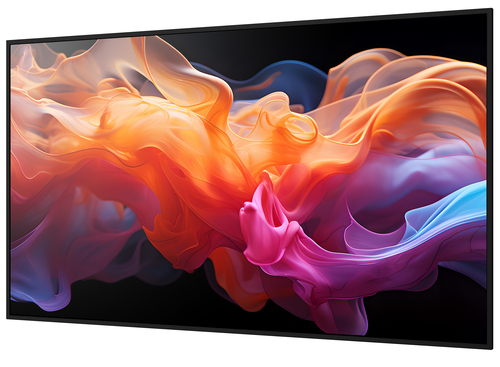

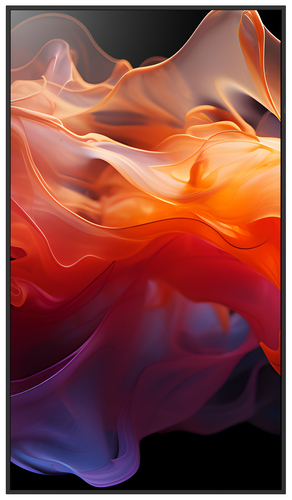

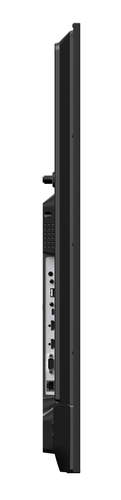

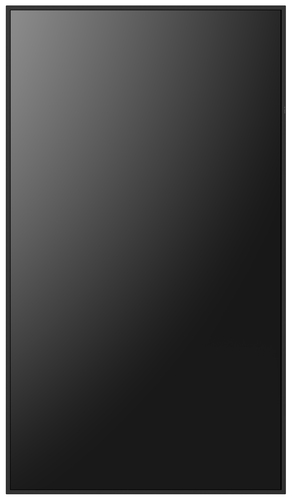

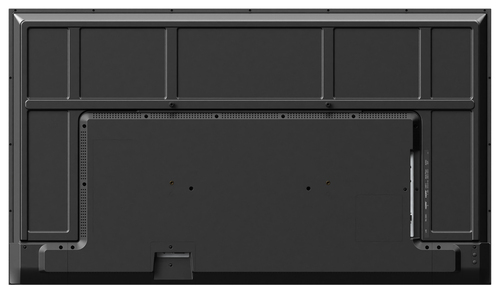

Sharp MultiSync E759 Digital signage flat panel 190.5 cm (75") LCD 350 cd/m² 4K Ultra HD Black
Part number PN-E759
75IN LCD DISPLAY UHD 16/7 350 NITS HIGH HAZE HDMI X 2 USB-C
- Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
- Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
- Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
- Manufacturer
- Sharp
- Part number
- PN-E759
- Condition
- New
- Category
- Displays › Large Format Displays
Overview
Professional performance, affordable value
The entry point for professional display solutions, the Sharp MultiSync® E9 Series is designed for modern business environments that need more than a consumer TV can offer. Combining essential features for meeting rooms and digital signage with commercial-grade reliability, the E9 Series delivers crisp UHD resolution, integrated media playback, and 16/7 operation at an accessible price point. A professional matte high-haze panel ensures superior visual performance in this product category, minimising reflections and glare common with glossy panels.
Designed for seamless integration across the wider Sharp display family, the E9 Series shares the same core identity, including the same remote control and device management for a consistent user experience. A robust metal back cover secures product longevity in commercial settings. Whether for presentations, retail signage, or corporate communication, the E9 Series gives you the professional edge without stretching your budget
Specifications
| Panel type | IPS |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 190.5 cm (75") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 350 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.43 x 0.43 mm |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal (metric) | 189.3 cm |
| Horizontal scan range | 31.5 - 135 kHz |
| Vertical scan range | 24 - 75 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| HDMI ports quantity | 4 |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 4 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| PC Audio in | Yes |
| RS-232C | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.29 cm |
| Bezel width (side) | 1.29 cm |
| Bezel width (top) | 1.29 cm |
| Mounting type | Wall |
| Purpose | Universal |
|---|
| Power consumption (typical) | 170 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (sleep) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Display width | 1680 mm |
|---|---|
| Display depth | 58.5 mm |
| Display height | 959 mm |
| Display weight | 24 kg |
| Package width | 1875 mm |
|---|---|
| Package depth | 186 mm |
| Package height | 1130 mm |
| Package weight | 33 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi | No |
| Power supply type | Internal |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
