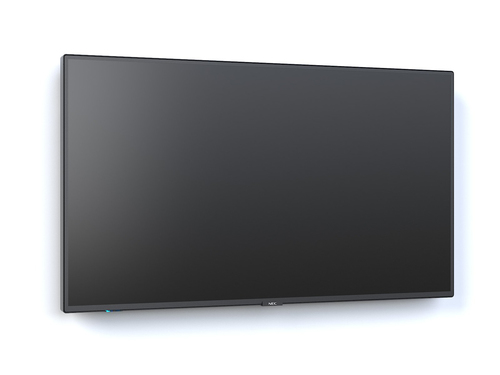

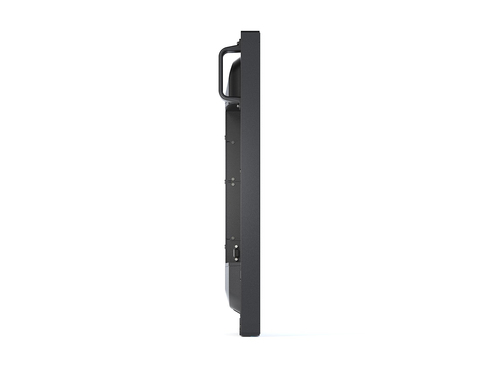

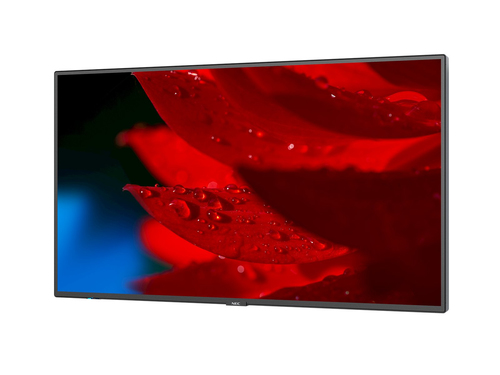

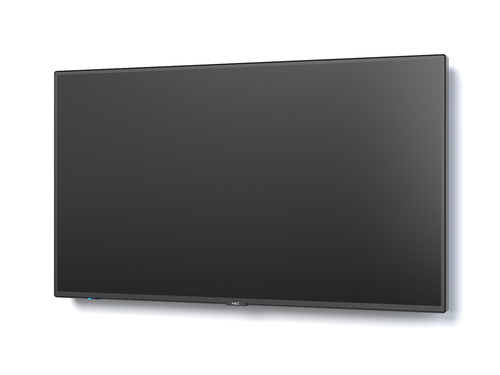

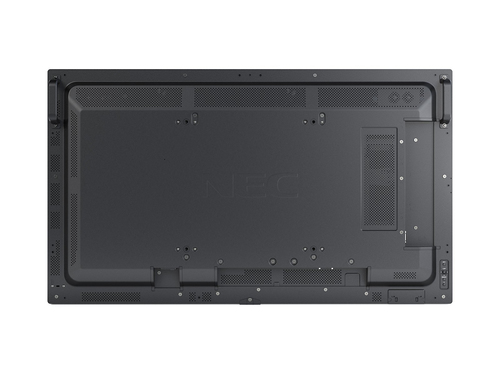

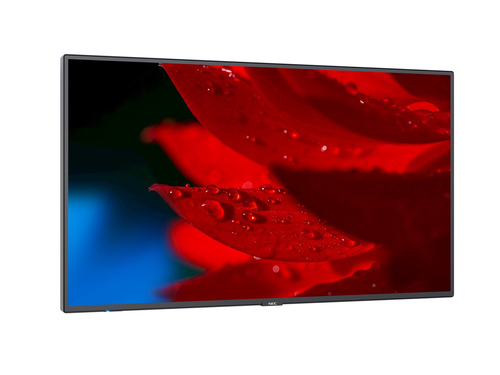

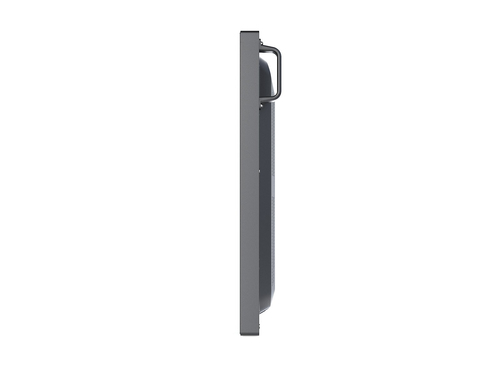

Sharp MA431-IR Signage Display Digital signage flat panel 109.2 cm (43") LCD 500 cd/m² 4K Ultra HD Black Touchscreen 24/7
Part number MA431-IR
MULTISYNC MA431-IR 43 LED LCD MULTISYNC MA431-IR 43 LED LCD
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
- Wide colour gamut – high-performance panel technology delivers a wider spectrum of colours for a superb visual experience
- Safe for public environments – a metal back cover and intelligent heat management ensure safe use in public spaces where fire-retardancy is mandatory
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience
- Manufacturer
- Sharp
- Part number
- MA431-IR
- Condition
- New
- Category
- Input & Output Devices › Pointing Devices
Overview
When true-to-life colour rendition is essential, the MA Series’ advanced feature set delivers calibrated precision, without compromise. For specialist applications, the wide colour gamut panel, SpectraView engine technology and 8K signal processing, positions the MA series at the high end of professional content delivery.
The MA series’ modular design includes Intel Smart Display Module (Intel SDM) technology integrated into the display, facilitating powerful media playback for the most intuitive signage creation and delivery. Featuring an integral audio amplifier, multi-picture mode technology and extensive connectivity including video out, the MA series offers versatile functionality for corporate signage and prestige retail applications.
Specifications
| Panel type | IPS |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Display diagonal | 109.2 cm (43") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Display diagonal (metric) | 108 cm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 86 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 28% |
| HDMI ports quantity | 3 |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 3 |
| DisplayPorts in | 2 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 3 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.56 cm |
| Bezel width (side) | 1.1 cm |
| Bezel width (top) | 1.1 cm |
| Purpose | Universal |
|---|---|
| Picture-in-Picture | Yes |
| Firmware upgradeable | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| International Protection (IP) code | IP5X, IP2X |
| Power consumption (typical) | 70 W |
|---|---|
| Power consumption (standby) | 2 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 85 kWh |
| Energy consumption (HDR) per 1000 hours | 84 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Display width | 968.2 mm |
|---|---|
| Display depth | 67.1 mm |
| Display height | 561 mm |
| Display weight | 18.5 kg |
| Package width | 1120 mm |
|---|---|
| Package depth | 203 mm |
| Package height | 700 mm |
| Package weight | 23 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Harmonized System (HS) code | 85285210 |
|---|
| Ambient light sensor | Yes |
|---|
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100 Mbit/s |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
