Sharp

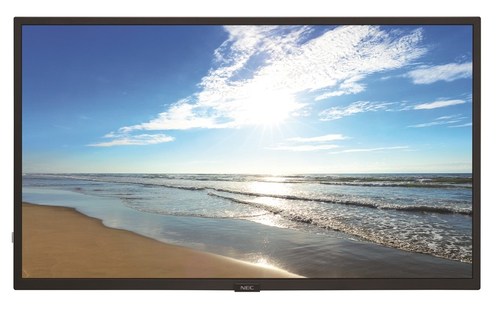

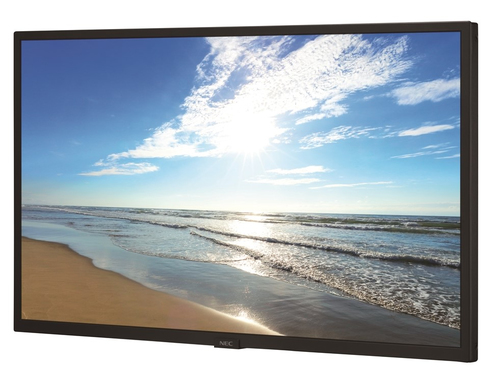

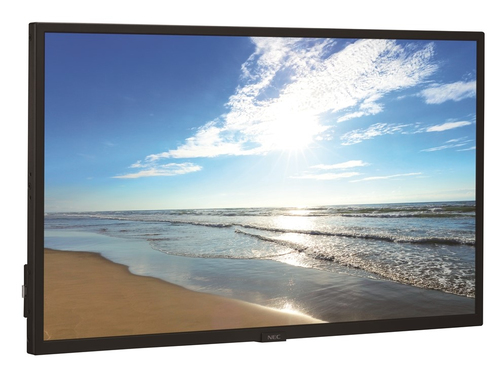

Sharp M321 Digital signage flat panel 81.3 cm (32") LCD 450 cd/m² Full HD Black Touchscreen

Part number M321-IR

M321 WITH INFRARED TOUCHSCREEN 10-PT IR TOUCH UHD 3YR WARRANTY

  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
  • 450 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation
  • Integrated Media Player allows for audio, video or image playback via USB
  • Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Manufacturer
Sharp
Part number
M321-IR
Condition
New
Category
Displays › Large Format Displays
1GPA category
Hardware

Overview

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M321 large format display with clear tempered 10-point IR touch pre-installed. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. This M series display can support both landscape and portrait orientations while also containing a an anti-glare panel to allow for easy readability for true commercial applications. The new product contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters – the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 450 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget. Share your message, your way.

Specifications

Display
Panel typeIPS
LED backlightYes
Display diagonal81.3 cm (32")
Display technologyLCD
Display resolution1920 x 1080 pixels
Display brightness450 cd/m²
HD typeFull HD
TouchscreenYes
Touchscreen technologyInfrared
Response time8 ms
Contrast ratio (typical)1100:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.78 million colours
Pixel pitch0.364 x 0.364 mm
Active display area (W x H)698.4 x 392.9 mm
Horizontal scan range15 - 136 kHz
Vertical scan range23 - 76 Hz
High Dynamic Range (HDR) supportedYes
Haze rate28%

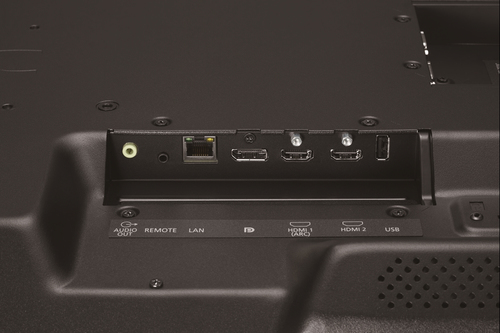

Ports & interfaces
HDMI ports quantity2
DVI portNo
VGA (D-Sub) input ports1
DisplayPorts quantity1
USB portYes
Ethernet LAN (RJ-45) ports1
Number of speaker outputs1
RS-232CYes
Remote (IR) input1
Audio
Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power10 W
Design
Product designDigital signage flat panel
Placement supportedIndoor
OrientationHorizontal/Vertical
Product colourBlack
VESA mountingYes
Panel mounting interface100 x 100,200 x 200 mm
Bezel width (bottom)1.72 cm
Bezel width (side)1.19 cm
Bezel width (top)1.19 cm
Performance
PurposeUniversal
Power
Power consumption (typical)40 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
Computer system
Computer systemNo
Built-in processorNo
Weight & dimensions
Weight6.3 kg
Width (with stand)726.6 mm
Depth (with stand)267.7 mm
Height (with stand)476.3 mm
Weight (with stand)8.2 kg
Packaging data
Package width870 mm
Package depth160 mm
Package height527 mm
Package weight9.8 kg
Packaging content
Remote control includedYes
Batteries includedYes
Cables includedAC, HDMI
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 80%
Logistics data
Harmonized System (HS) code85285210
Network
Ethernet LANYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
