QNAP QXG-10G1TD network card Internal Ethernet 10000 Mbit/s
Part number QXG-10G1TD
SINGLE-PORT 10GBASE-T 10GBE NET ALL NAS MODELS WITH A PCIE SLOT.
- 5-Speed (NBASE-T) Flexible Connectivity: Supports 10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE via Multi-Gigabit, ensuring seamless backward compatibility with existing network infrastructure for a smooth, cost-effective upgrade.
- Effortless RJ45 Upgrades: Utilizes a universally standard RJ45 port, allowing you to achieve full 10Gbps network speeds using existing Cat 6a cables, completely bypassing the massive expenses of fiber optic rewiring
- Next-Gen Energy-Efficient Design: Equipped with a highly efficient network controller that effectively reduces power consumption, minimizing heat generation while balancing top-tier performance with corporate ESG energy efficiency goals.
- Optimized Jumbo Frame Transmission: Supports Jumbo Frames to significantly improve the transfer efficiency of large files—such as 4K/8K video projects and intensive backups—by reducing packet processing overhead for smoother, high-throughput data pipelines.
- Versatile NAS & PC Compatibility: The QXG-10G1TD can be effortlessly installed in QNAP NAS, Windows®, and Linux® systems, unifying diverse hardware ecosystems and boosting cross-platform collaboration efficiency.

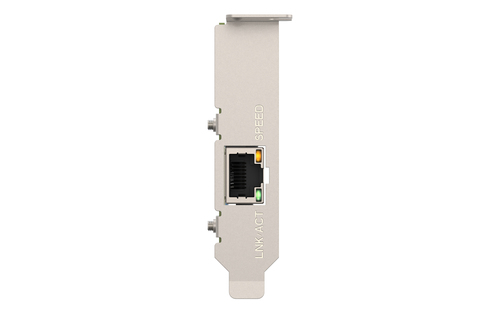

- Intuitive LED Indicators: Comes with clear, high-visibility LED indicators, making it convenient for IT staff to monitor network port status in real-time and accelerate troubleshooting workflows.
- Manufacturer
- QNAP INC
- Part number
- QXG-10G1TD
- Condition
- New
- Category
- Storage Devices › Network Storage
- 1GPA category
- Hardware
Overview

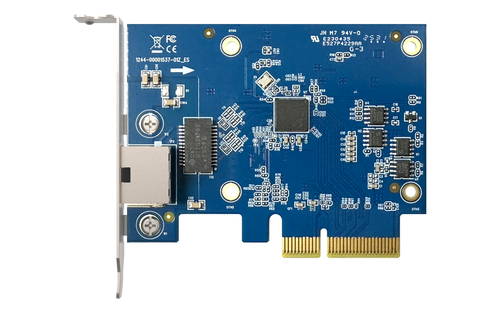

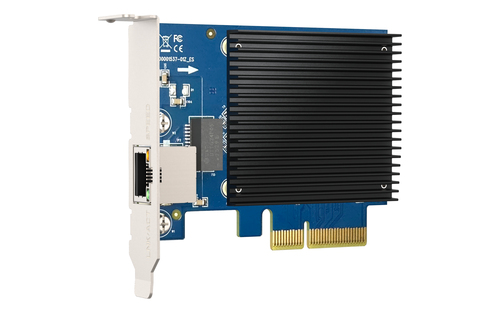

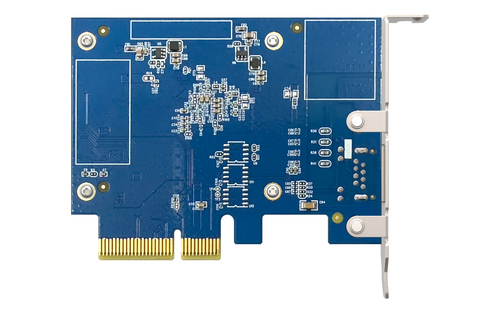

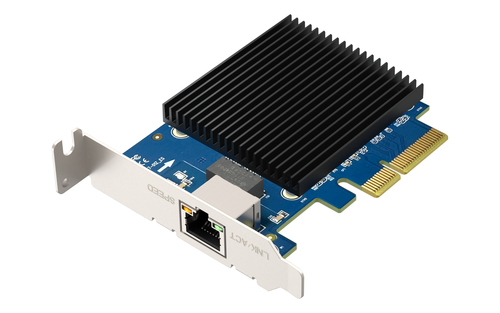

QXG-10G1TD
5-Speed 10GbE RJ45 Network Expansion Card: Seamless High-Speed Connectivity with Low Power Consumption
The QXG-10G1TD single-port 10GbE network expansion card is designed to meet the growing demand for high-speed networking across both NAS and PC environments, providing up to 10 times the bandwidth of traditional Gigabit Ethernet. Engineered for maximum versatility, the QXG-10G1TD not only delivers up to 10Gbps transfer speeds but also supports five speeds (10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE). Its ease of use and low power consumption make it an ideal, cost-effective network upgrade for SOHO, small offices, and professional workstations.
Specifications
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 3.0 |
| Maximum data transfer rate | 10000 Mbit/s |
|---|---|
| Networking standards | IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3, IEEE 802.3an |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10000,5000,2500,1000,100 Mbit/s |
| Cabling technology | 10GBase-T |
| LAN controller | Realtek RTL8127AT |
| Component for | NAS/storage server |
|---|---|
| Product colour | Multicolour |
| Internal | Yes |
| Width | 67.9 mm |
|---|---|
| Depth | 88.8 mm |
| Height | 14.7 mm |

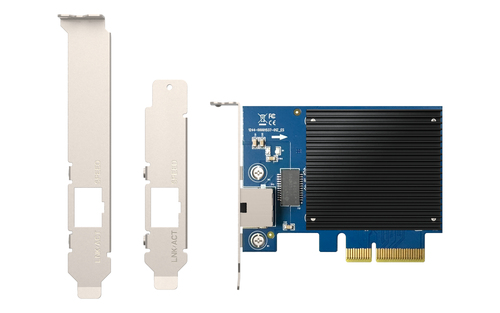

| Mounting brackets included | Yes |
|---|---|
| Quick installation guide | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
