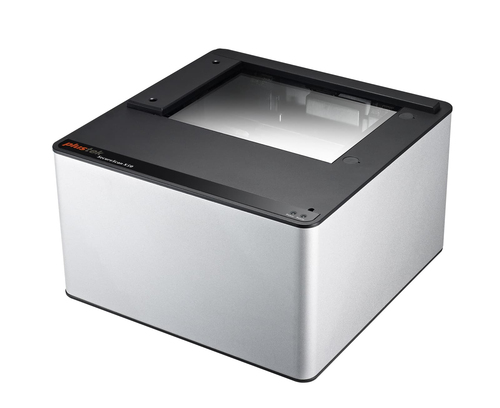

Plustek SecureScan X50 Black, Grey
Part number SECURESCANX50
SECURESCAN X50 PASSPORT SCANNER SIMPLEX COLOR USB2 PASSPORT READER
- Sensor type: CMOS
- USB port
- Power supply type: USB
- Manufacturer
- Plustek
- Part number
- SECURESCANX50
- Condition
- New
- Category
- Imaging Devices › Scanners
- 1GPA category
- Hardware
Overview
Passport scanning and data extraction solution
The Plustek SecureScan X Series is a fast and easy way to scan passports and ID cards Compact design for one-step scanning to capture and extract passport information
SecureScan X Series Simplifies Passport Scanning and Data Extraction.
Fast
Scanning takes about 1 second per side
Passports and IDs are automatically detected and captured
There is no need to press any buttons or click on screens
Compatible
Compliant with ICAO Doc 9303 standard for machine readable travel documents and supports TD1/TD2/MRP/MRV sized document scanning
Capable of Reading Machine Readable Zone and Visual Inspection Zone Data*
SecureScan X Series can capture and verify relevant data of all international passports,plastic ID cards and other documents.
1-Second Quick Scan with Data Output
SecureScan X Series only takes approximately 1 second from scanning to showing on screen.Our built-in data recognition helps to read and input the customers profile data more accurately.
SDKs Available
The following SDKs are available to integrate the SecureScan X Series into your application
Specifications
| Duplex scanning | No |
|---|---|
| Input colour depth | 24 bit |
| Output colour depth | 24 bit |
| Product colour | Black, Grey |
|---|---|
| Built-in display | No |
| Sensor type | CMOS |
|---|---|
| Megapixel (approx.) | 5 MP |
| Light source | White LED / IR LED |
| Maximum scan area (Flatbed) | 127 x 95 mm |
|---|
| USB port | Yes |
|---|---|
| USB version | 2.0 |
| Power supply type | USB |
|---|---|
| Input voltage | 5 V |
| Current | 0.5 A |
| Width | 200 mm |
|---|---|
| Depth | 200 mm |
| Height | 119 mm |
| Weight | 1.7 kg |
| Quantity per pack | 1 pc(s) |
|---|
| Bundled software | Plustek SecureScan Plustek SecureScan Manager |
|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
|---|---|
| Linux operating systems supported | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
