Peerless PRGS-UNV project mount Ceiling Black
Part number PRGS-UNV
PROJECTOR MOUNT - BLACK - TWO ADJUSTMENT KNOBS TO CONTROL TILT AND ROLL IMAGE AL
- Two adjustment knobs to control tilt and roll image alignment and accurately hold image position, virtually eliminating any sag or drift
- Achieve pin-point image alignment by simply turning the adjustment knobs by hand or with a Phillips screwdriver
- Pre-installed security screws provide tilt and roll locking ability to prevent tampering and adjustments
- Quick-release thumbscrew enables easy-glide removal of the projector in and out of the mount
- Low profile design allows projector to be flush with the ceiling
- Open frame assembly provides easy cable routing through the projector mount itself
- Quick release mechanism to easily service projector
- Specifications: Pitch: +15°/-20° Roll: ±5° Swivel: 360° (during installation)
- Spider® Universal Adaptor Plate extends up to 17.63" (448 mm) to fit most projector models
- Manufacturer
- Peerless-AV
- Part number
- PRGS-UNV
- Condition
- New
- Category
- Accessories › Projector Accessories
- 1GPA category
- Hardware
Overview

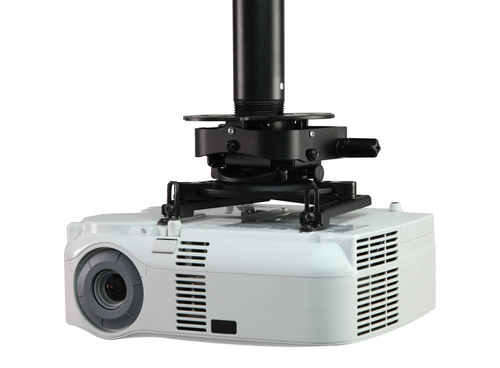

The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
Specifications
| Mounting type | Ceiling |
|---|---|
| Maximum weight capacity | 22 kg |
| Product colour | Black |
| Adjustable arm | Yes |
| Swivel angle | 360° |
| Angle of rotation | 10° |
| Tilt angle range | -20 - 15° |
| Easy to install | Yes |
| Ceiling mounting tube length (max) | 118 cm |
| Ceiling mounting tube length (min) | 92 cm |
| Safety lock | Yes |
| Width | 216 mm |
|---|---|
| Height | 92 mm |
| Depth | 448 mm |
| Maximum device height | 44.8 cm |
| Maximum device width | 11.8 cm |
| Depth (min) | 21.6 cm |
| Depth (max) | 44.8 cm |
| Weight | 1.9 kg |
| Package width | 362 mm |
| Package depth | 76 mm |
| Package height | 171 mm |
| Package weight | 2 kg |
| Manual | Yes |
|---|---|
| Mounting kit | Yes |
| Harmonized System (HS) code | 83024190 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
