Overview

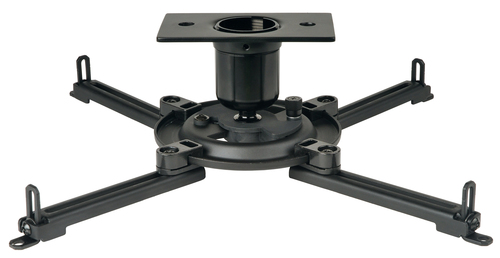

Vector Pro™ II provides a clean look with its cable management capabilities. The included extension column connector incorporates internal cable management paths that keep unsightly cords concealed from view. The mount also features a ceiling plate, ball and socket design, multidirectional positioning (roll, pitch and yaw) for proper image alignment and preinstalled security hardware at every connection point. This projector mount is perfect for use in classrooms, boardrooms, hotels, bars and restaurants or anywhere a projector needs to be mounted. The Vector Pro™ II can be flush mounted to the ceiling or mounted on the wall. It can also be mounted using 1-1/2" (38 mm) diameter extension column or 1/2" (38 mm) thread rod.
Specifications
Performance
| Mounting type | Ceiling |
|---|
| Maximum weight capacity | 22 kg |
|---|
| Product colour | Black |
|---|
| Cable management | Yes |
|---|
| Swivel angle | 360° |
|---|
| Angle of rotation | 30° |
|---|
| Tilt angle range | -15 - 15° |
|---|
Weight & dimensions
| Width | 448 mm |
|---|
| Height | 196 mm |
|---|
| Depth | 448 mm |
|---|
| Weight | 1.4 kg |
|---|
| Package width | 241 mm |
|---|
| Package depth | 324 mm |
|---|
| Package height | 64 mm |
|---|
| Package weight | 1.6 kg |
|---|
Packaging content
| Manual | Yes |
|---|
| Mounting kit | Yes |
|---|
Certificates
| Certification | UL, GS TÜV |
|---|
Logistics data
| Harmonized System (HS) code | 83024190 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
