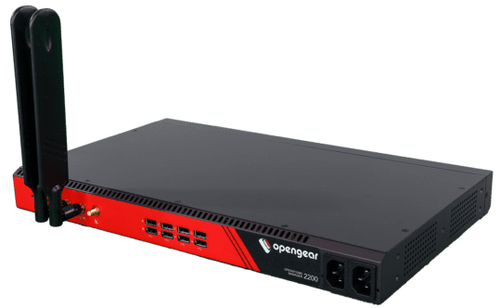

Opengear OM2224-24E-10G-L-1TB console server RJ-45/Micro-USB
Part number OM2224-24E-10G-L-1TB
24 SERIAL PORTS + 24X 1GBE SWITCH, X86 4-CORE CPU, 8G RAM, 1TB SSD, 10GBE SFP+,
x86 CPU supports standard Docker containers and a Python runtime environment, to automate NetOps processes
TPM2.0 chip provides a secure boot process to protect against configuration and firmware tampering
64GB internal flash memory, to keep configuration and software files on site, where they are needed
Open architecture, based on Linux operating system. Standard DevOps tools, including Ansible, Docker and Python, used for automation
Smart OOB includes automated port discovery and VLAN support on the OM appliances
Embedded LTE-A Pro cellular module for global access
Manufacturer
Opengear
Part number
OM2224-24E-10G-L-1TB
Condition
New
Category
Network Devices › Servers
1GPA category
Hardware
Overview
OM2200 Operations Manager
Opengear OM appliances combine the capabilities of a Smart OOB™ Console Server with the flexibility of Automation.
The OM2200 Console Server, managed through our Lighthouse Software, is configured for data centers and high-density locations. As part of Opengear’s Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.
Specifications
Features
Mobile network generation
4G
Rack mounting
Yes
Zero Touch Provisioning (ZTP)
Yes
4G LTE
Yes
Product colour
Black, Red
Security
Security algorithms
SNMP, 802.1x RADIUS, IPSec
Ports & interfaces
Console port
RJ-45/Micro-USB
Serial ports quantity
24
USB 2.0 ports quantity
8
Ethernet LAN (RJ-45) ports
24
SFP module slots quantity
2
Technical details
Warranty period
5 year(s)
Compliance certificates
RoHS, Korean Industrial Standards (KS), VCCI
Weight & dimensions
Dimensions (WxDxH)
440 x 260 x 45 mm
Weight
3.5 kg
Power
Power source type
AC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
30 W
Operational conditions
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-30 - 60 °C
Operating relative humidity (H-H)
5 - 90%
Memory
Internal memory
1000000 MB
RAM capacity
8000 MB
RAM type
DDR3
Processor
Processor family
AMD
Processor model
GX-412TC
Processor cores
4
Processor frequency
1400 MHz
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
