Opengear

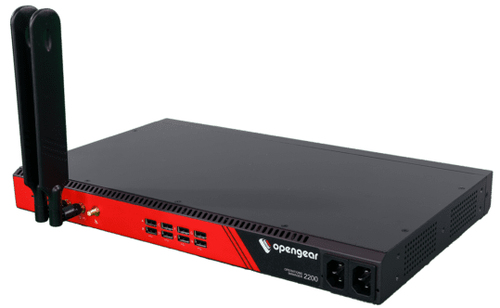

Opengear OM2224-24E-10G-DDC-L-LSP network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Part number OM2224-24E-10G-DDC-L-LSP
24 SERIAL PORTS + 24X 1GBE SWITCH, X86 4-CORE CPU, 8G RAM, 64G SSD, 10GBE SFP+,
- 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models
- Separate platforms optimized for 1GbE and 10 GbE networks
- Global LTE interface (non-cellular optional)
- PSTN modem with select models
- x86 platform; embedded physical security
- Python runtime, Docker container support
- Manufacturer
- Opengear
- Part number
- OM2224-24E-10G-DDC-L-LSP
- Condition
- New
- Category
- Network Devices › Servers
- 1GPA category
- Hardware
Overview
The OM2200 appliance, managed through our Lighthouse software, is configured for data centers and high density locations. Integrated into Opengear’s Network Resilience Platform, it provides a separate, secure management plane which supports advanced automation applications.
Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-A ports quantity | 10 |
| Number of management ports | 24 pc(s) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Power cables quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3 |
|---|---|
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Active link detection | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| VLAN support | Yes |
| Fiber ethernet cabling technology | 10GBASE-SR |
|---|
| Rack mounting | Yes |
|---|---|
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Built-in processor | Yes |
|---|---|
| Processor manufacturer | AMD |
| Processor frequency | 1400 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8192 MB |
| Flash memory | 1048576 MB |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Power source | AC |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 40 - 72 V |
| Power consumption (max) | 48 W |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | 5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 440 mm |
|---|---|
| Depth | 260 mm |
| Height | 45 mm |
| Weight | 3.5 kg |
| Cables included | Power |
|---|---|
| Rack mount kit | Yes |
| Compliance certificates | UL, CB, PSE |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
