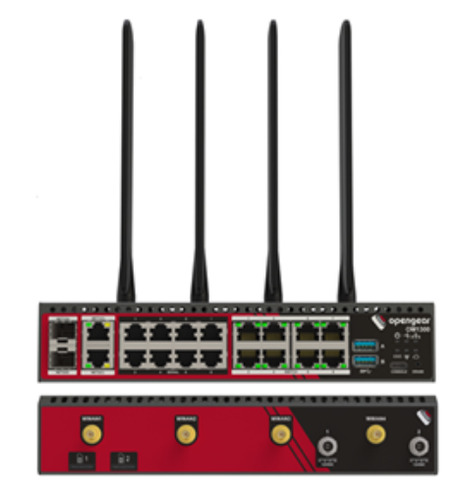

Opengear OM1308-8E-C
Opengear

Opengear OM1308-8E-C console server RS-232/RJ-45

Part number OM1308-8E-C

8XRS232 X1/X2 SOFTWARE SELECTABLE PORTS+8X1GBE SWITCHED,2X1GBE/SFP COMBO,2XUSB 3

  • Managed networking with VLAN and Routing support
  • IP based device management with Smart OOB™
  • 4GB LPDDR4 memory / 32GB eMMC storage
  • TPM 2.0 embedded physical security
  • 4 port Serial and 4 port Ethernet management OR 8 port Serial and 8 port Ethernet management
Manufacturer
Opengear
Part number
OM1308-8E-C
Condition
New
Category
Network Devices › Servers
1GPA category
Software

Overview

Integrated serial access and Ethernet switching in a single compact appliance, simplifying edge deployments and offering streamlined device control.

The OM1300 Operations Manager is a compact, all-in-one appliance designed to deliver resilient out-of-band access for edge, branch, retail, and industrial environments. By combining serial console access and Ethernet switching into a single platform, the OM1300 eliminates the need for multiple devices while maintaining the reliability and security Opengear is known for. Purpose-built for space-constrained deployments, it keeps critical systems reachable under any condition.

Specifications

Features
Mobile network generation5G
Rack mountingYes
Supported programming languagesPython
Internal modemYes
CellularYes
Zero Touch Provisioning (ZTP)Yes
Web-based managementYes
Temperature sensorYes
4G LTEYes
Event loggingYes
Management features
Management protocolsZTP, Ansible, API based OS, SNMP
Security
Security algorithmsFIPS 140-2, IPSec, TACACS+
Authentication methodTACACS+, RADIUS, Active Directory/OpenLDAP
Ports & interfaces
Console portRS-232/RJ-45
Serial ports quantity8
Ethernet LAN (RJ-45) ports10
SFP module slots quantity2
Technical details
Compliance certificatesCB, GCF, ICES, PTCRB, PSE, RoHS, UL, VCCI
SafetyIEC 62368-1:2018, IEC 62368-1:2014, IEC 62368-1:2023
Weight & dimensions
Dimensions (WxDxH)220 x 189 x 44 mm
Weight1.65 kg
Power
Power source typeAC, DC
AC input voltage110 - 240 V
Power consumption (max)32 W
DC input voltage12 V
Operational conditions
Operating temperature (T-T)-25 - 60 °C
Storage temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 90%
Certificates
CertificationPTCRB, GCF, Verizon, AT&T, EN 18031-1:2024, EN 18031-2:2024, EN 18031-3:2024, EN55032:2015+A11:2020, IEC 61000-3-2: 2018+A2:2024, EN 61000-3-2:2019+A2:2024, IEC 61000-3-3:2013+A2:2021, EN 61000-3-3:2013+A2:2021, 47 CFR Parts: 15B, ICES-003 Issue 7, EN 55035:2017+A11:2020, KS C 9832:2024, KS C 9835:2024, AS/NZ CISPR 32:2015+A1:2020, VCCI-CISPR 32:2016, CISPR 32:2015+A1:2019, CNS 15936:2016, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.3.1, EN 303 413 V1.2.1, EN 301 908-25 V15.1.1, EN 301 489-1:2019 v.2.2.3, EN 301 489-52:2021 v.1.2.1, EN 62311: 2020, EN 63000:2018, IEC 62368-1:2018, IEC 62368-1:2014, IEC 62368-1:2023
Memory
RAM capacity4000 MB
RAM typeDDR4
eMMC capacity32 GB
Processor
Processor modelCortex-A53
Processor architectureARM Cortex-A53
Processor cores4
Processor frequency1600 MHz
Network
Copper ethernet cabling technology1000BASE-T, 100BASE-TX
Supported network protocolsIPv6, IPSec, OpenVPN, TACACS+, RADIUS, SNMP

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
