Opengear CM8116-DDC console server RS-232
Part number CM8116-DDC
16SERIAL 2X1GBE ARM1.6GHZ2 CORE 2GBMEM32GB TPM2.0 DOCKER DUAL DC
- 16, 32 or 48 port serial console server with Smart Out-of-Band™
- Enables Data Center and Enterprise Network automation with Python and Docker support
- Ideal replacement for legacy terminal servers
- Embedded physical security using TPM 2.0 module
- Dual power supplies with independent monitoring
- Integrated environmental temperature monitoring
- Manufacturer
- Opengear
- Part number
- CM8116-DDC
- Condition
- New
- Category
- Network Devices › Servers
- 1GPA category
- Hardware
Overview

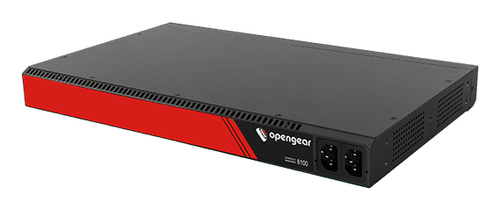

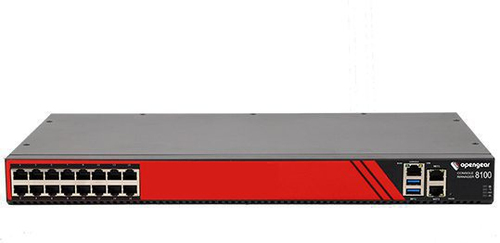

CM8100 Console Server
The CM8100 is Opengear’s newest console manager for data centers and enterprise networks. Building on 18 years of Opengear product innovation and leadership, the CM8100 Console Manager provides up to 48 serial ports, enterprise-grade security using TPM 2.0 module, and independent monitoring using dual power supplies.
Connect 16, 32, or 48 serial console ports with simple straight-through cabling to Cisco®-style serial consoles reliably regardless of the state of your production network.
Host containerized applications to run across any platform or NetOps tools providing more agility and efficiency. Maximize your connectivity and keep data free from slowdowns with Dual Ethernet ports. Manage at scale through Opengear’s Lighthouse Management Software.
Designed and purpose-built energy efficient without compromising performance, the CM8100 requires less power and cooling for a lower total cost of ownership and high reliability.
Specifications
| Cooling type | Passive |
|---|---|
| Rack mounting | Yes |
| Supported programming languages | Perl, Python |
| MIB support | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Web-based management | Yes |
| Temperature sensor | Yes |
| Product colour | Black, Red |
| Security algorithms | IPSec, SNMP, SSH |
|---|---|
| Authentication method | TACACS+, RADIUS, OpenLDAP |
| Console port | RS-232 |
|---|---|
| Serial ports quantity | 16 |
| Ethernet LAN (RJ-45) ports | 2 |
| Compliance certificates | RoHS |
|---|
| Dimensions (WxDxH) | 440 x 235 x 44 mm |
|---|---|
| Weight | 4.5 kg |
| Power consumption (typical) | 15 W |
|---|---|
| DC input voltage | 40 - 72 V |
| Number of power supply units | 2 |
| Operating temperature (T-T) | 5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Internal memory | 2000 MB |
|---|---|
| Flash memory | 32000 MB |
| RAM capacity | 2000 MB |
| RAM type | DDR4 |
| eMMC capacity | 32 GB |
| Processor family | Marvell |
|---|---|
| Processor architecture | ARM Cortex-A9 |
| Processor cores | 2 |
| Processor frequency | 1600 MHz |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
